We pump peanut butter into your jar, and the oil in your car. We glue the soles of your shoes, the glass in your windows and pump the ink onto your bills. We spray the finish on your vehicle, coatings on your pills, the paint on your house and texture on your walls. We’ve been a part of your daily life for more than 90 years. Graco, providing solutions for all Manufacturers
- Sanitary
- Chemical
- Air & Electric Operated
- Highly Efficient and Run Dry Capabilities
Graco Diaphragm Pumps – Air Operated Range

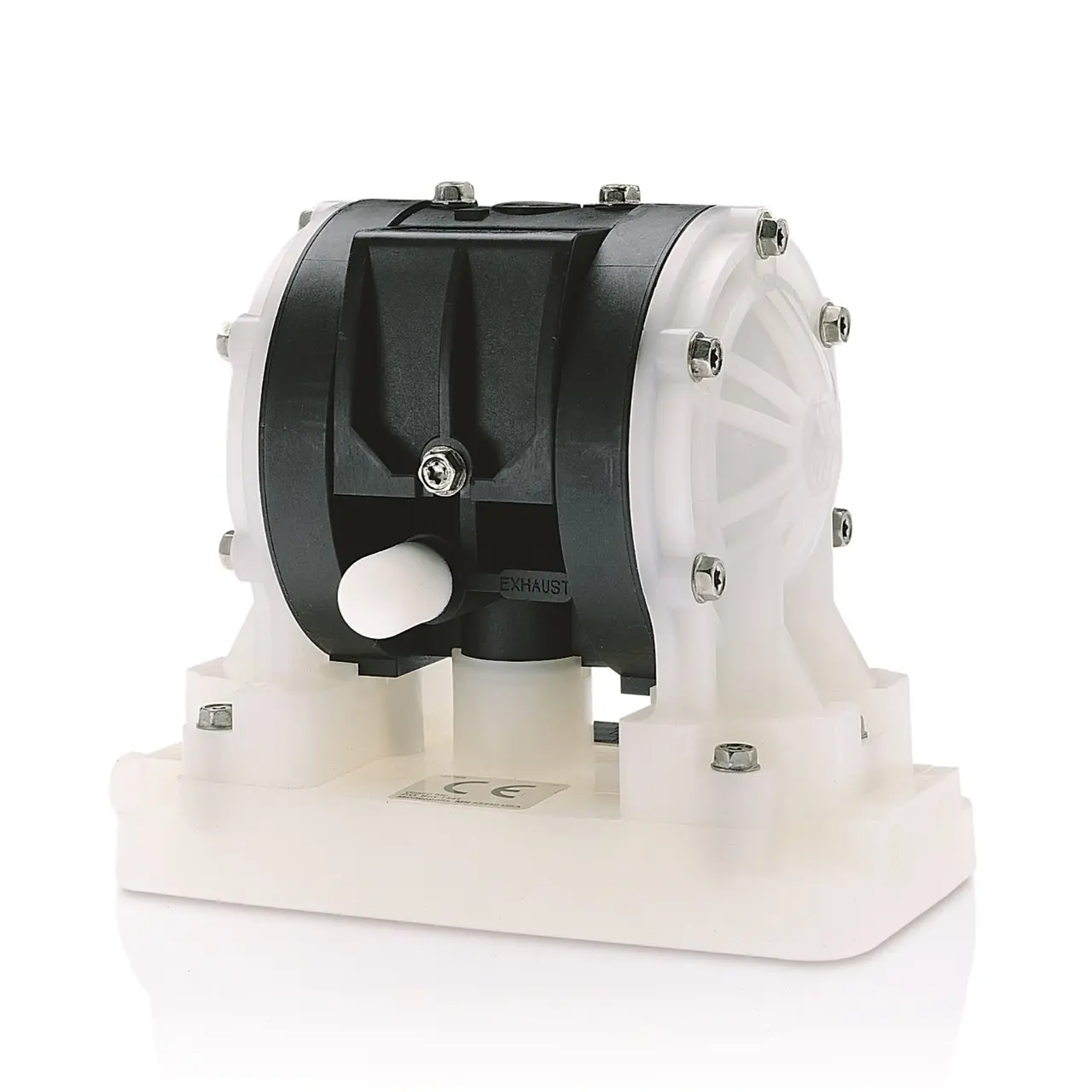

Husky 205
205 1/4″ air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.
Flow & Head
- Max Flow: 61l/m
- Max Head: Max Pressure 7bar

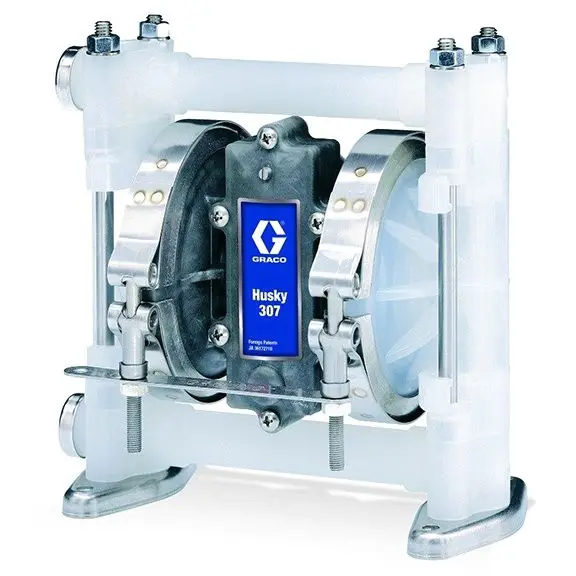

Husky 307
3/8″ air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover
Flow & Head
- Max Flow: 26.4l/m
- Max Head: Max Pressure 7bar

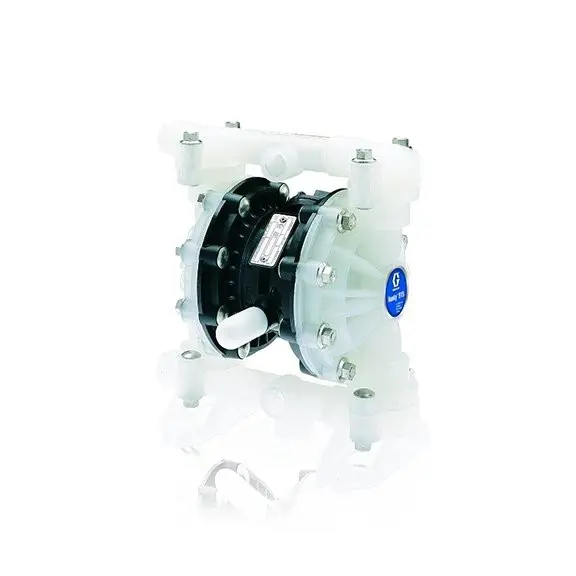

Husky 515
1/2″ air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Flow & Head
- Max Flow: 57l/m
- Max Head: Max Pressure 7bar

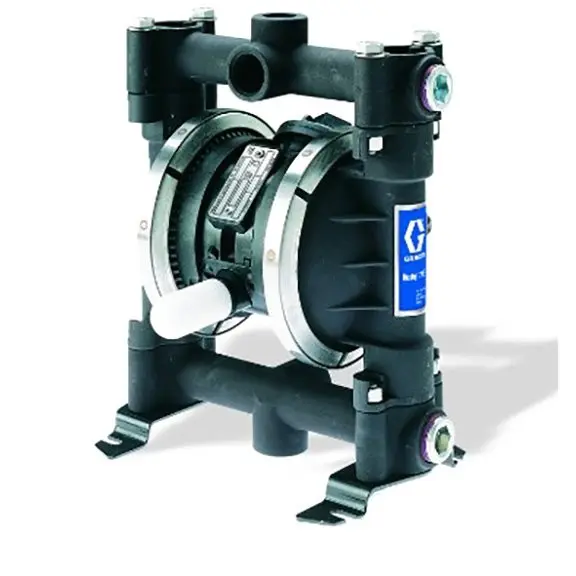

Husky 716
716 3/4″ air-operated diaphragm pump features an external controller for remote control capabilities.
Flow & Head
- Max Flow: 61l/m
- Max Head: Max Pressure 7bar

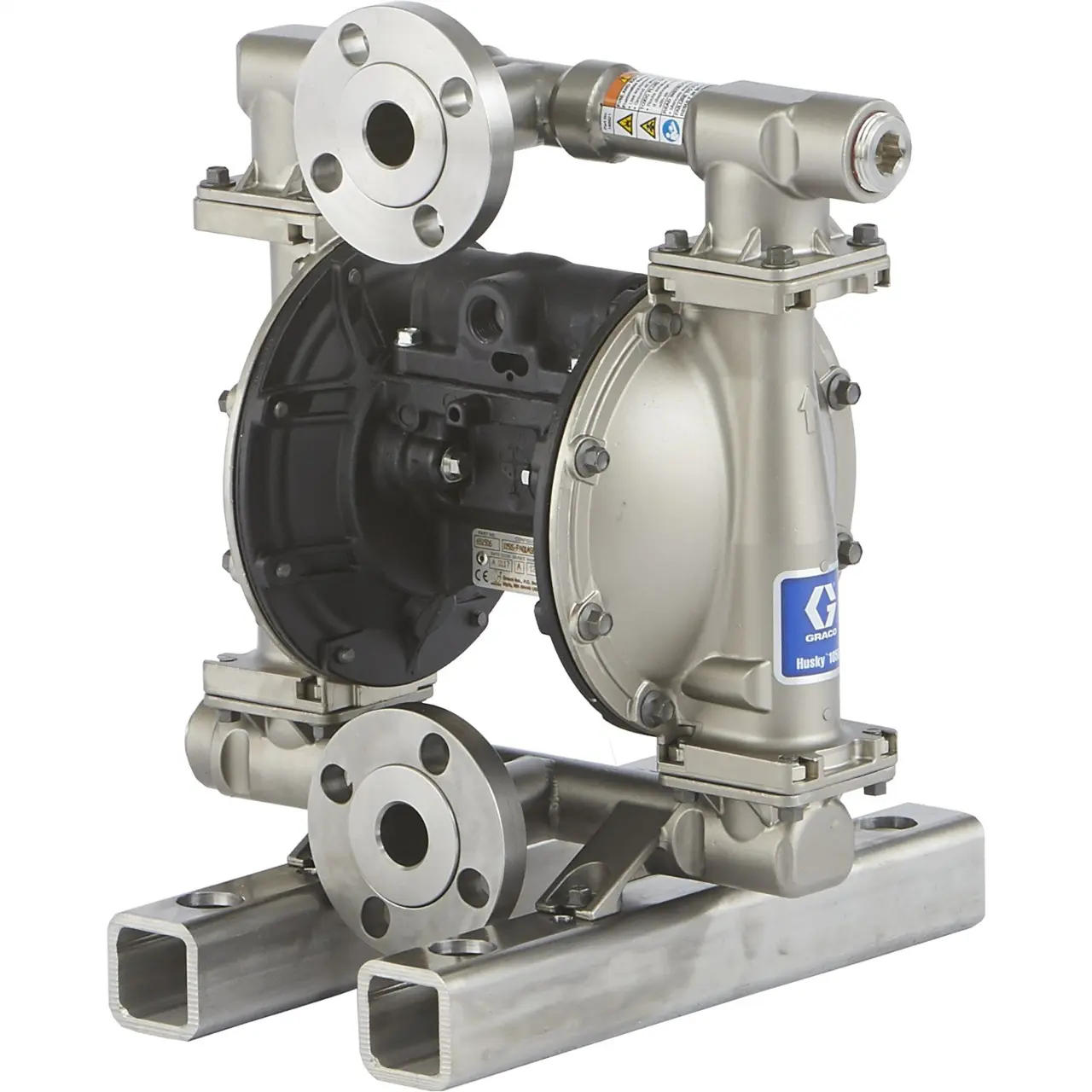

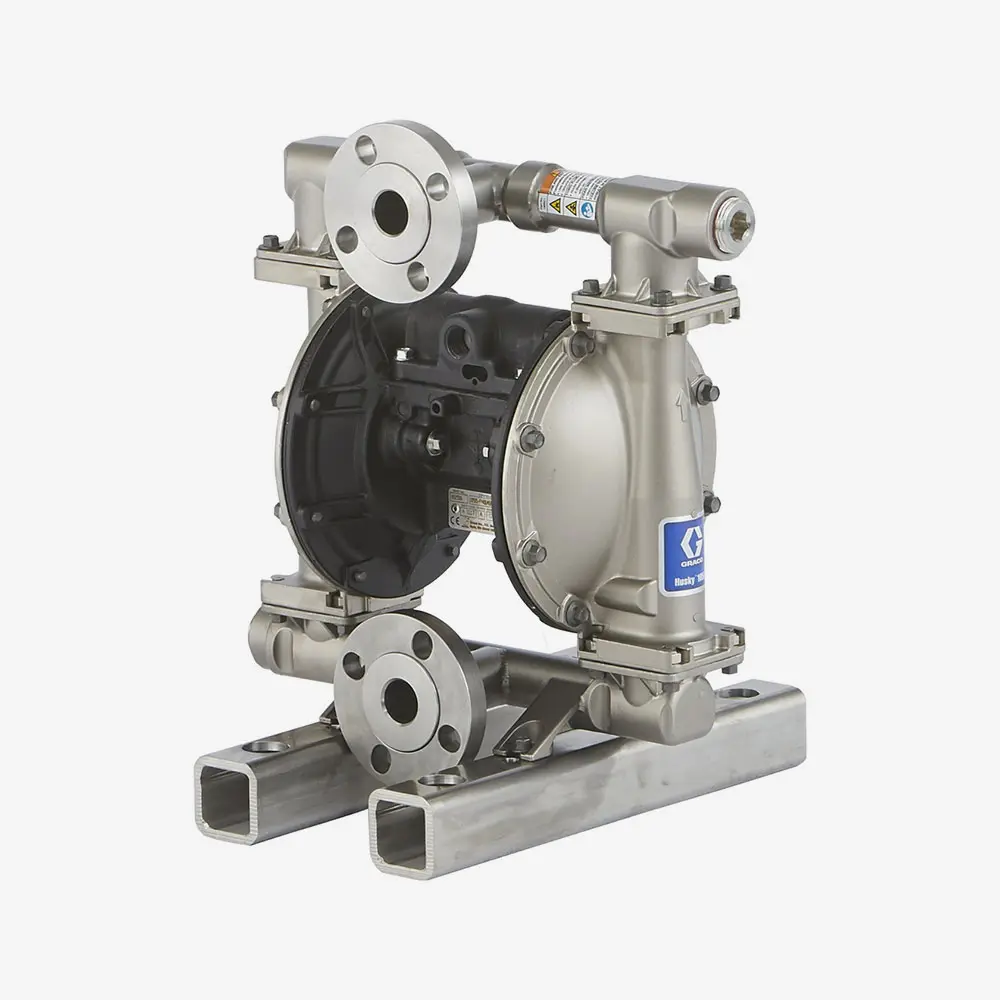

Husky 1050
1 ” air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps
Flow & Head
- Max Flow: 189l/m
- Max Head: Max Pressure 8.6bar

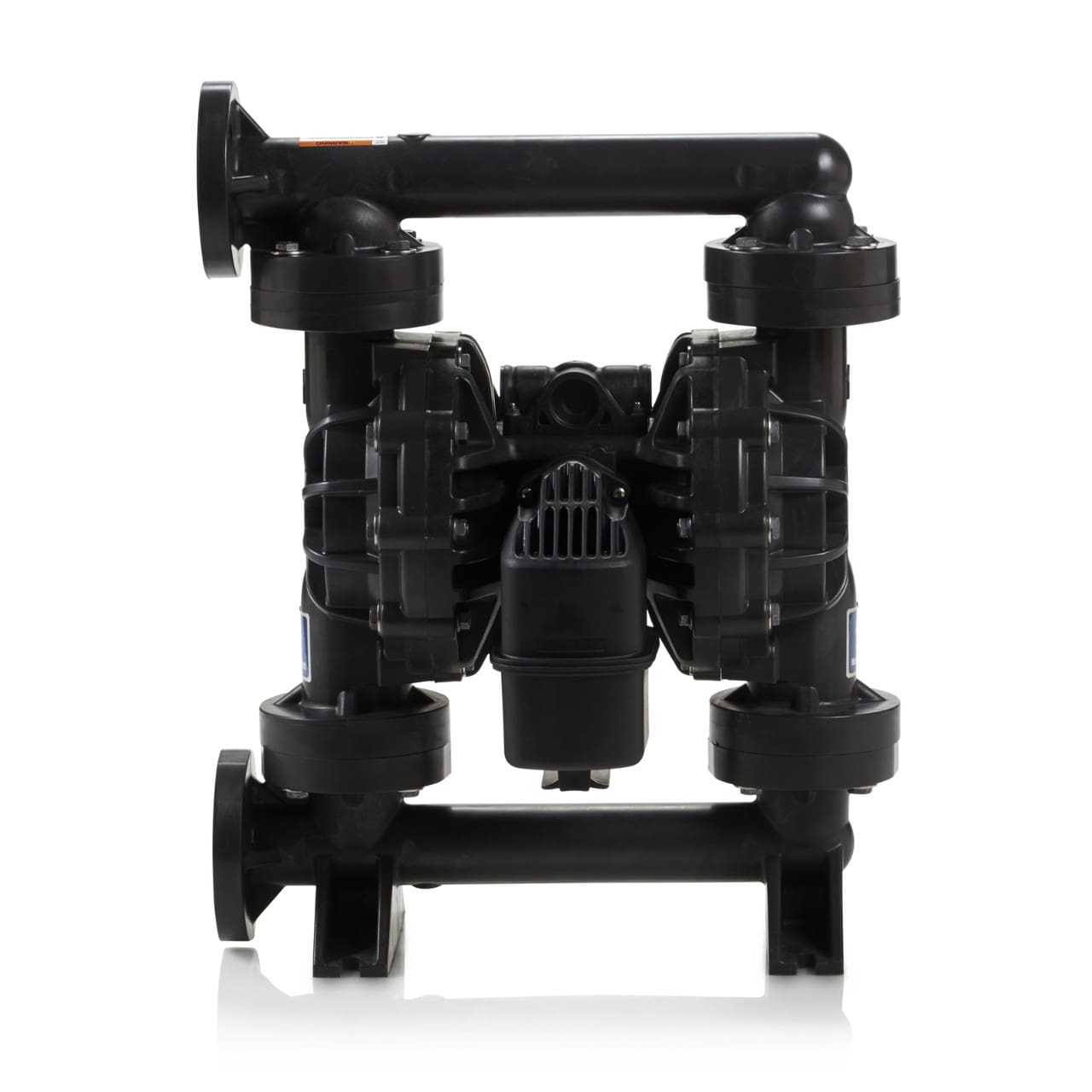

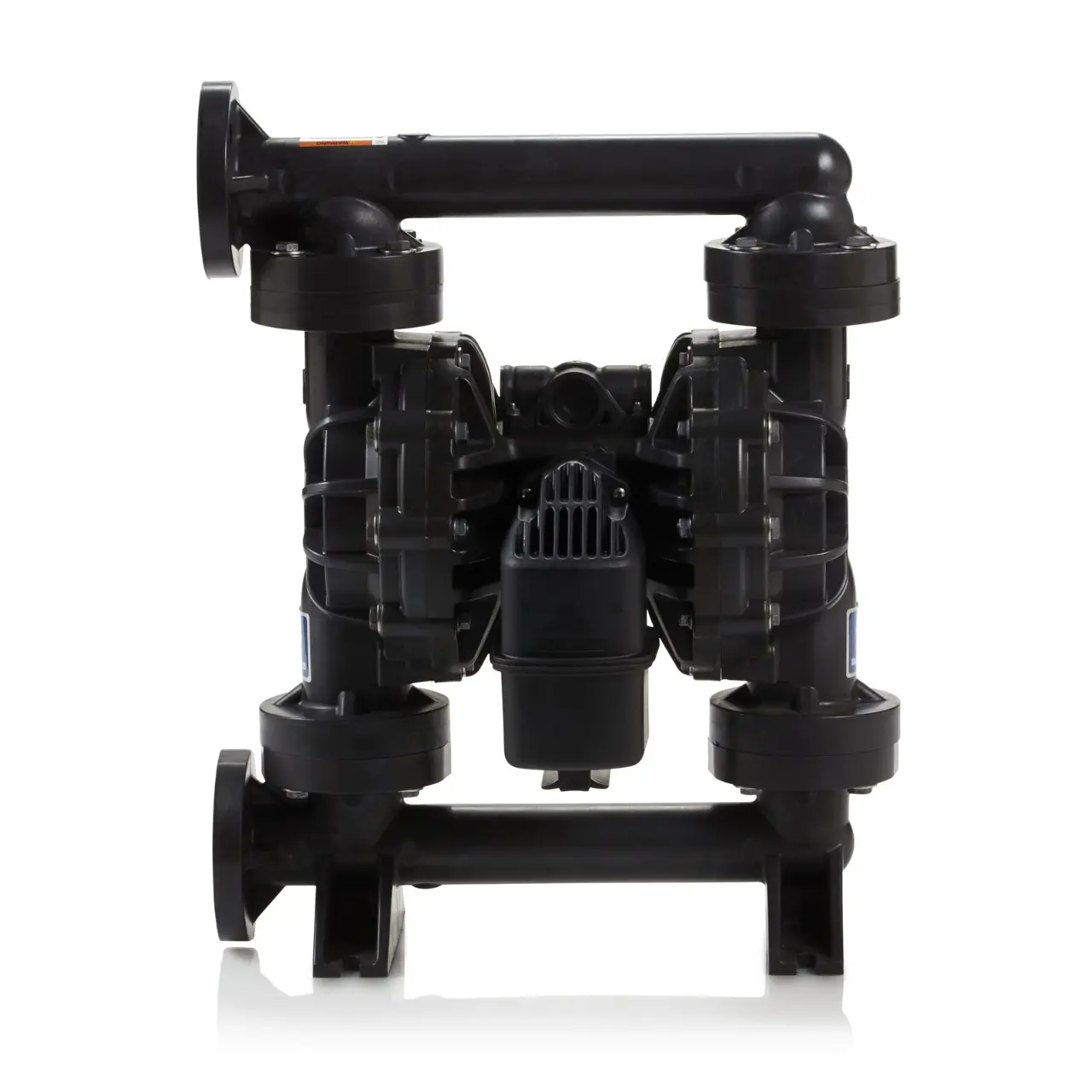

Husky 105120
11/2″ air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other double diaphragm pumps.
Flow & Head
- Max Flow: 462l/m
- Max Head: Max Pressure 8.6bar

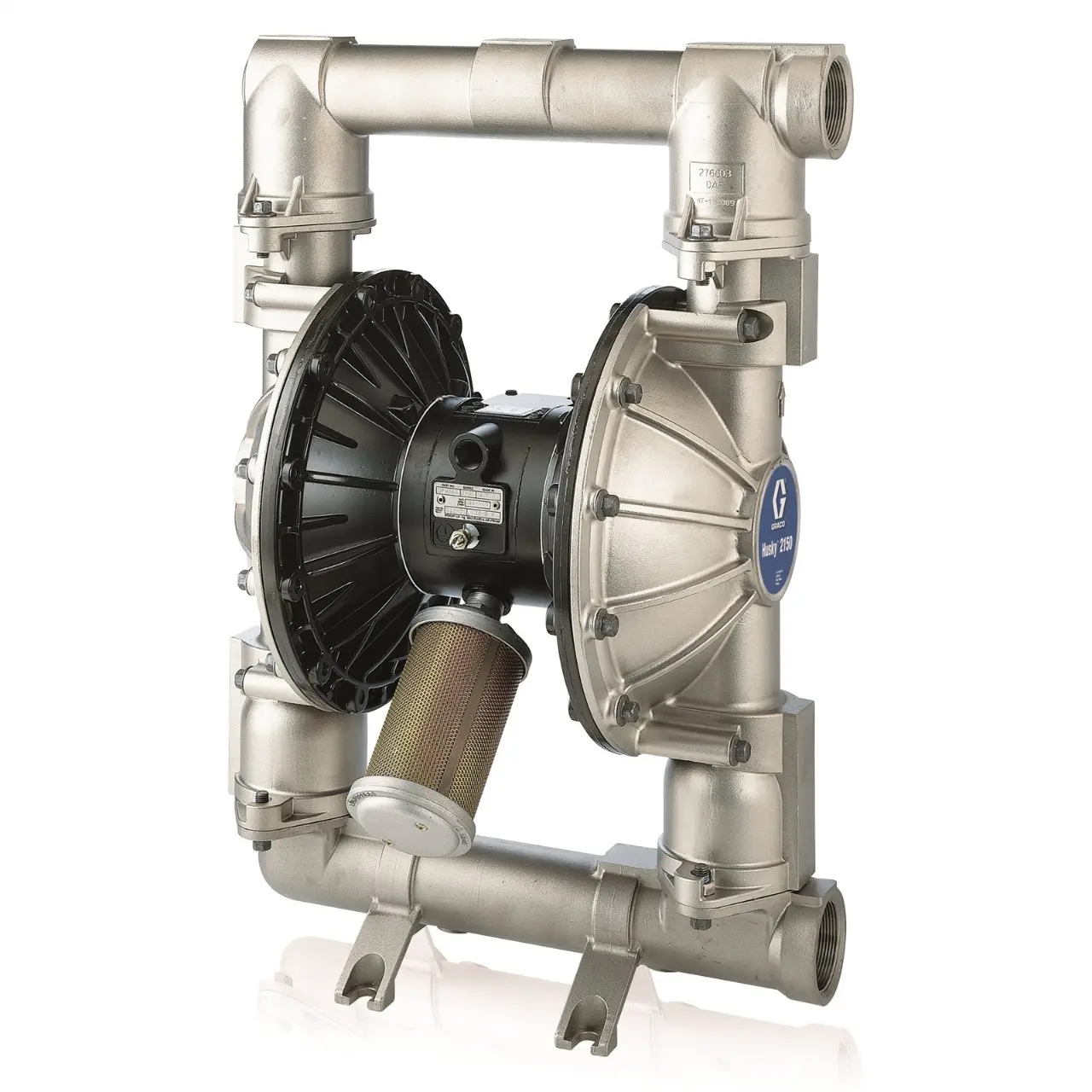

Husky 1590
11/2″ air-operated diaphragm pump features a patented, high-reliability closed centre air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
Flow & Head
- Max Flow: 378.50l/m
- Max Head: Max Pressure 8.0bar
Husky 2200
2″” air-operated diaphragm pump features a single piece polypropylene centre section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.
Flow & Head
- Max Flow: 757l/m
- Max Head: Max Pressure 8.6bar

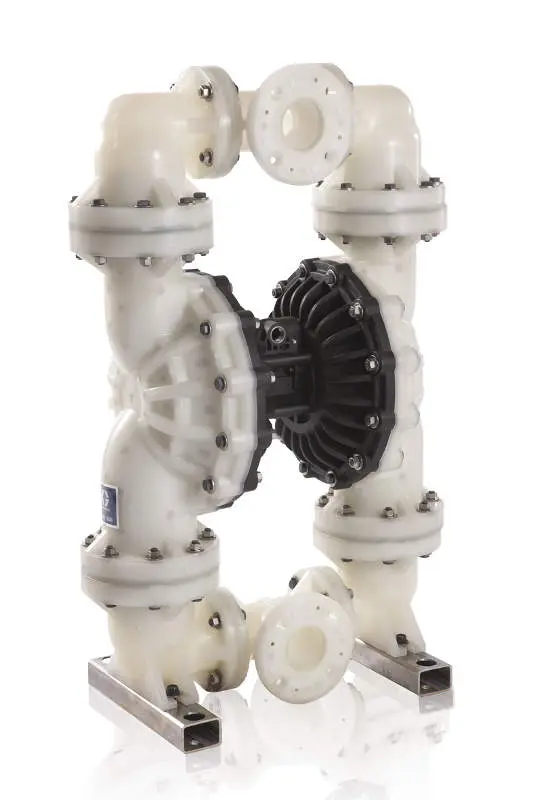

Husky 3300
3″ air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.
Flow & Head
- Max Flow: 1135l/m
- Max Head: Max Pressure 8.6bar
An air operated diaphragm pump is a positive displacement pump that traditionally uses compressed air as its power source. These pumps are now also available as an electric diaphragm pump. On standard air operated pumps, the compressed air is shifted from one chamber to the other by a linked shaft that allows the chambers to move simultaneously.
This back-and-forth motion, forces liquid out of one chamber and into the outlet manifold, while filling the opposite fluid chamber via the inlet manifold. Upon changeover, the fluid section that was filled on the previous shift empties into the outlet manifold and the fills the opposite chamber via the inlet manifold. The rapid changeover allows for reduced pulsation at the outlet.
These pumps are available with ball check valves or flap type check valves for handling sheer sensitive products and products with large particles that require gentle handling.
Industry expertise that helps your plant succeed
Our goal is to help you improve efficiency and reduce costs. This drives us to deliver not only top finishing technology, but also the industry expertise that helps your plant reach its business goals.
Chemicals
We design and build a broad array of equipment specifically for transferring and injecting chemicals in manufacturing and oil and natural gas applications.
Composite – Laminate glue spray guns & equipment for composite materials to improve products
Composite fabrication equipment requires superior accuracy, performance, and reliability. We offer a variety of composite manufacturing equipment, such as supply systems, applicators, resin transfer moulding, and more. From fabrication to assembly, Graco has you covered.
Disinfecting & sanitising
When applying disinfectants, the equipment you use often dictates your level of productivity. For the highest productivity and even coverage using less materials, count on Graco disinfectant sprayers.
General fluid transfer
Graco designs and builds a wide range of equipment designed to handle industrial fluids such as inks, colourants, paint, abrasives, corrosive, shear sensitive, gas entrapped and more. Explore our batch controllers, double diaphragm pumps, piston transfer pumps and others. We also design and build custom products for customers with unique requirements.
Sanitary pumps for manufacturing
Graco designs and builds a wide range of equipment specifically for sanitary manufacturing. These include applications for personal care products, cosmetics, pharmaceuticals, medical devices and more.
Sealants & adhesives application equipment – proven expertise –
Virtually every product assembled requires bonding or sealing at some stage of the process. Graco offers manual and automated technologies for single-component and plural-component bonding and sealing for a wide range of products, markets and applications.
