These heating pumps are electronically controlled and can be used for both centralized heating and air conditioning systems. With new technology motors it makes them highly efficient.
- Practical and Easy to use
- High Efficiency
- Compact Designs
Ebara Heating Pumps Range
Ego 2 (tech)
Single cast-iron circulators with threaded connections, impeller in technopolymer and a new display for better management and visualisation of operating parameters, ideal for small systems.
Specification
N/A
Flow & Head
- Max Flow: 3.6m³/h
- Max Head: 7.2m max liquid temperature from -10°C – +110°C

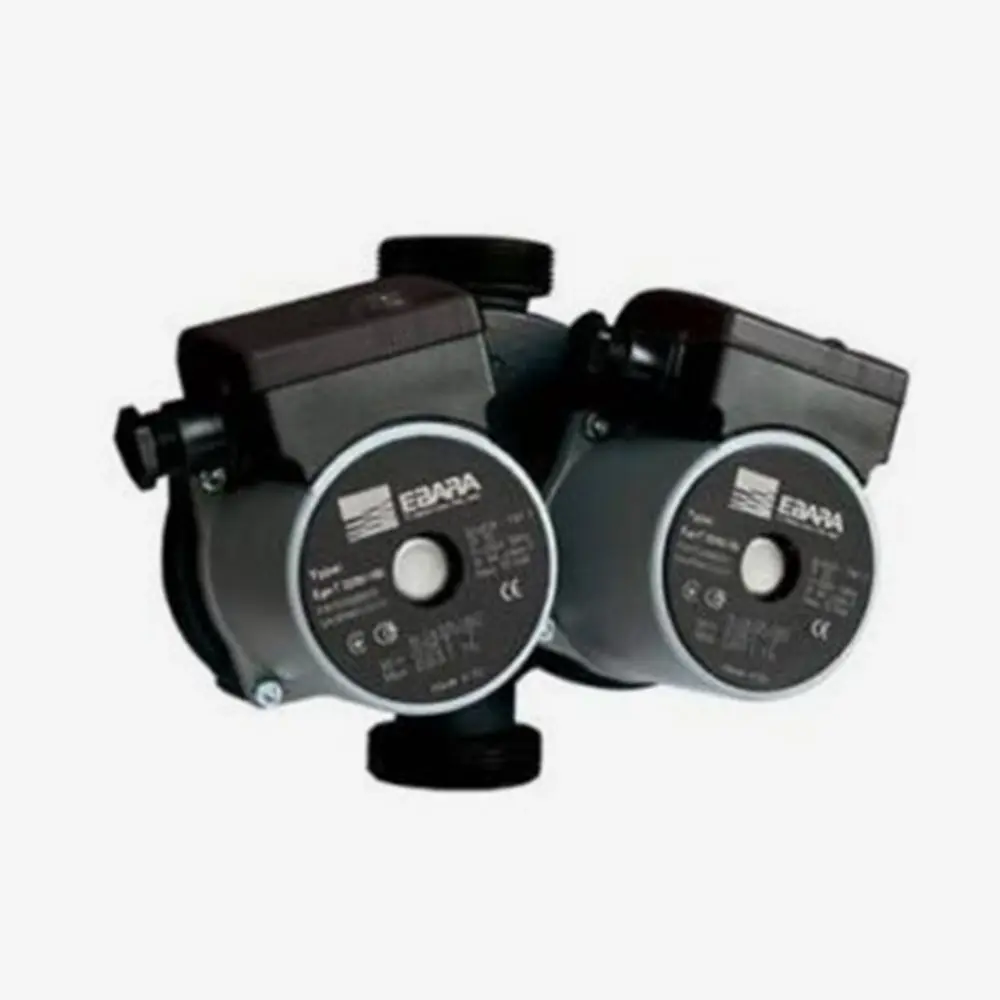

Ego T
The Ego T from Ebara is an electronically controlled twin-head circulator with permanent magnet rotors. The Ego T’s main selling point is its ability for continuous adjustment based on the actual demands of the system, therefore giving superior energy savings and reduced noise output.
Specification
N/A
Flow & Head
- Max Flow: 3.6m³/h
- Max Head: 7m max liquid temperature from -10°C – +110°C
Ego Easy
Single and twin circulators in cast iron with threaded or flanged connections, impeller in technopolymer, ideal for medium-sized centralised and collective systems.
Specification
Also available with a bronze body
Flow & Head
- Max Flow: 10.8m³/h
- Max Head: 11m max liquid temperature from -10°C – +110°C
Ego Slim
Ego slim is the new and innovative series of flanged electronic circulators. The systems have a permanent magnet motor that is suitable for combined heating and conditioning plants. Ego slim circulators differ from fixed-speed pumps due to their capability for continuous adjustment based on the actual demands of the system thanks to the integrated innovative inverter.
Specification
- Also available with a bronze body
Flow & Head
- Max Flow: 72m³/h
- Max Head: 18.2m max liquid temperature from -10°C – +110°C
Ego (flanged)
Ego is a series of electronic circulators that have a permanent magnet motor that’s suitable for combined heating and conditioning plants. Ego easy circulators are available with flanged connections. Ego circulators differ from fixed-speed pumps due to their capability for continuous adjustment based on the actual demands of the system thanks to the integrated inverter.
Specification
- Also available with a bronze body
Flow & Head
- Max Flow: 43m³/h
- Max Head: 3.5m max liquid temperature from -10°C – +110°C
3DP Series
A highly popular cast iron end suction centrifugal pump, the 3DP series is highly versatile and is suitable for a range of applications; from pressurisation and fire control through to heating, air conditioning and the supply of water to industrial, civil and agricultural plants.
Specification
N/A
Flow & Head
- Max Flow: 2.2 m³/h
- Max Head: 51 m Max Liquid temperature from -10°C – 90°C
Ego B
This is a single electronic circulator for sanitary water, threaded or flanged, with integrated electronic control with a permanent magnet rotor and bronze pump body.
Specification
N/A
Flow & Head
- Max Flow: 48m³/h
- Max Head: 12m Max Liquid temperature from -10°C – +65°C
LPS
Inline centrifugal pumps with pump body, impeller and seal holder disc in AISI 304 stainless steel, with ventilated 2-pole motor. Suitable for circulation systems, they are used to pump hot water for domestic hot water and heating systems and chilled water for air conditioning and cooling, both in civil and industrial systems.
Specification
N/A
Flow & Head
- Max Flow: 12m³/h
- Max Head: 12.5m max liquid temperature from -10°C – +100°C
LPC-LPCD
This is a large inline centrifugal electric pump with cast-iron hydraulic parts. This is available in both 2 and 4 poles.
Specification
N/A
Flow & Head
- Max Flow: 12m³/h
- Max Head: 12.5m max liquid temperature from -10°C – +110°C
Let’s Talk Pressure, we understand that every facility has unique demands. speak with a system expert today and get a recommendation built around your environment.
