Grundfos – Heating Pumps

UP, UPS (N)

Grundfos UP, UPS N circulator pumps have a corrosion-free stainless-steel pump housing and are recommended for domestic hot-water recirculation and underfloor heating systems. UP, UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is usually required.

Specification

• Multi Speed and Fixed Speed

Flow & Head

• Max Flow: 13.8 m³/h
• Max Head: 9.771 m

ALPHA1

Grundfos ALPHA1 pumps are high-efficiency circulators, designed for heating systems. The ideal choice for basic functionality needs.

Specification

• Variable Speed

Flow & Head

• Max Flow: 3.419 m³/h
• Max Head: 6.061 m

ALPHA1 N

Grundfos ALPHA1 N pumps are high-efficiency circulators with stainless-steel pump housing, designed for heating systems. And suitable for domestic hot water systems. The ideal choice for basic functionality needs.

Specification

• Variable Speed

Flow & Head

• Max Flow: 3.074 m³/h
• Max Head: 6.152 m

ALPHA3

Grundfos ALPHA3 pumps are high-efficiency circulators, designed for heating systems. The pump features AUTOADAPT which automatically adjusts the pump to system demands for optimal comfort and the lowest energy consumption as well as simple commissioning. Features connectivity to smart devices via Grundfos Apps.

Specification

• Variable Speed

Flow & Head

• Max Flow: 3.447 m³/h
• Max Head: 6.102 m

UPS3

Grundfos UPS3 pumps are high-efficiency circulators. Suitable as universal upgrade and replacement pumps, designed for circulating liquids in domestic heating systems.

Specification

• Variable speed

Flow & Head

• Max Flow: 3.885 m³/h
• Max Head: 6.376 m

UPS2

Grundfos UPS2 circulator pumps feature advanced control modes enabling adjustment of pump performance to the actual system requirements in one- and two-pipe heating systems. The motor is based on permanent-magnet and compact-rotor technology securing silent operation and low energy consumption.

Specification

• Fixed Speed and Multi Speed

Flow & Head

• Max Flow: 5.687 m³/h
• Max Head: 8 m

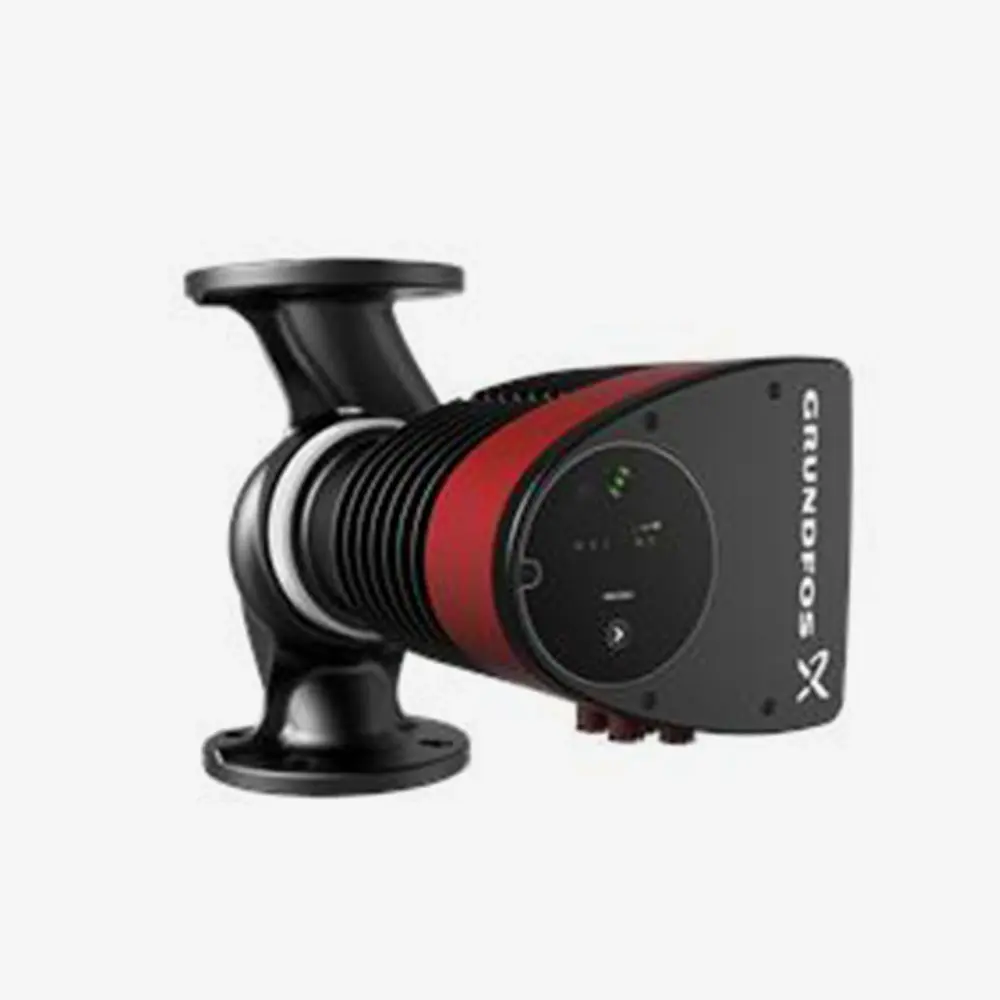

MAGNA1

The simple option for a job well done. The product has an intuitive user interface, which is especially fit for replacement of older circulators. The ideal choice for basic functionality needs.

Specification

• Variable speed

Flow & Head

• Max Flow: 68.5 m³/h
• Max Head: 16.69 m

MAGNA1 D

Double the pump performance or enjoy reduced downtime in service by having redundancy from the twin pump (manual change over). The basic product which can be operated from an intuitive user interface.

Specification

• Variable speed

Flow & Head

• Max Flow: 66.5 m³/h
• Max Head: 16.76 m

MAGNA1 N

MAGNA1 N is the stainless steel variant for applications where the media requires this (e.g. domestic hot water). With MAGNA1, the job is done in an intuitive and efficient way.

Specification

• Variable speed

Flow & Head

• Max Flow: 55.82 m³/h
  Max Head: 16.69 m

MAGNA3

The Grundfos MAGNA3 circulator pump is the premium choice when system control and monitoring is key. MAGNA3 supports fieldbus by optional CIM modules and has a TFT display for intuitive configuration of the intelligent features.

Specification

• Variable speed

Flow & Head

• Max Flow: 81.31 m³/h
• Max Head: 18.22 m

MAGNA3 D

Double the performance or enjoy reduced downtime in service by having redundancy from the twin pump which operates wirelessly. The intelligence in the MAGNA3 caters for all application needs.

Specification

• Variable Speed

Flow & Head

• Max Flow: 78.4 m³/h
• Max Head: 18.83 m

MAGNA3 N

Get all of the premium features and the best in class efficiency of MAGNA3 in a stainless steel variant if the media requires this (e.g. domestic hot water).

Specification

• Variable speed

Flow & Head

• Max Flow: 70.77 m³/h
• Max Head: 18.22 m

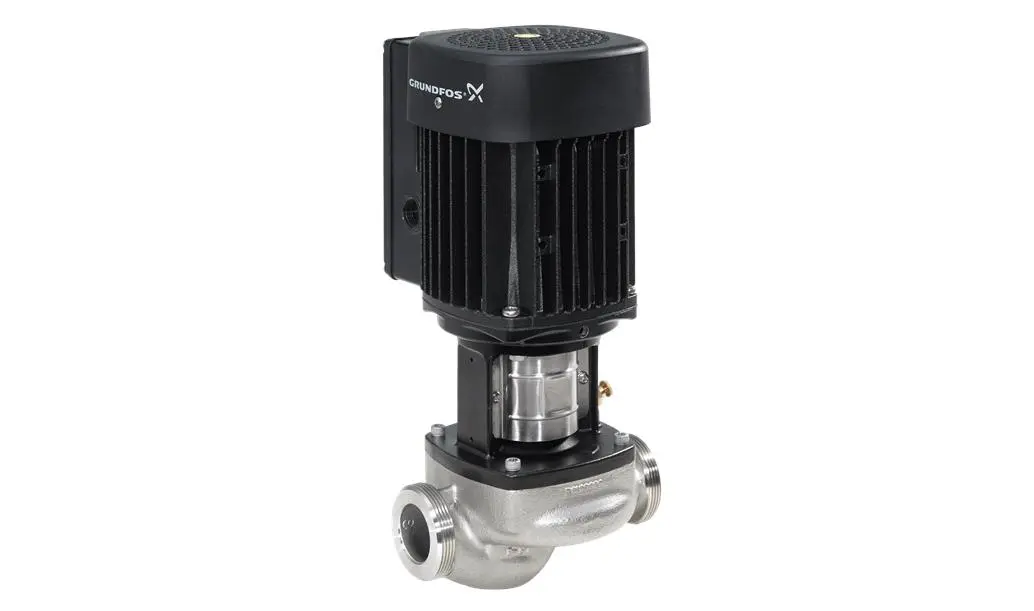

TP (B) (I)

Single-stage in-line pumps with pump housing in bronze or stainless steel

Specification

• Fixed speed

Flow & Head

• Max Flow: 90.04 m³/h
• Max Head: 26.52 m

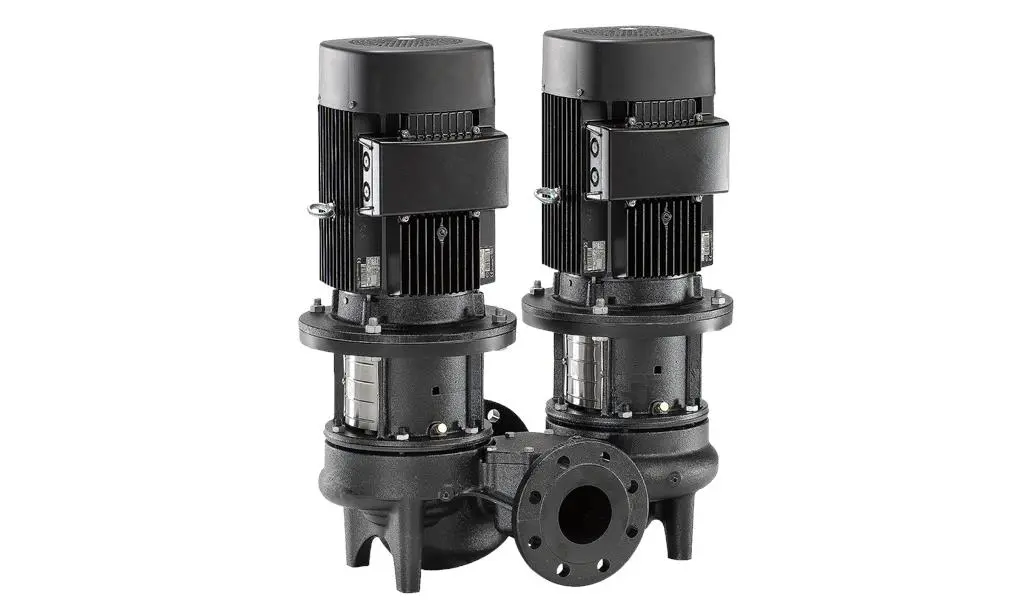

TPD

Twin-head single-stage in-line pumps

Specification

• Fixed speed

Flow & Head

• Max Flow: 363 m³/h
• Max Head: 91.86 m

TPE Series 1000, TPE2

Single-stage in-line pumps with frequency converters

Specification

• Fixed speed

Flow & Head

• Max Flow: 1086 m³/h
• Max Head: 131.4 m

TPE Series 2000, TPE3

Grundfos TPE Series 2000, TPE3 pumps are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primely for applications such as heating/cooling/district energy. The pumps are fitted with frequency controlled motors and differential pressure transmitter.

Specification

• Variable speed

Flow & Head

• Max Flow: 1086 m³/h
• Max Head: 131.4 m

TPE3 (I)

Grundfos TPE3 (I) pumps with stainless steel pump housing and are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primely for applications such as hot water recirculation. The pumps are fitted with frequency controlled motors and differential pressure/temperature transmitter.

Specification

• Variable speed

Flow & Head

• Max Flow: 60 m³/h
• Max Head: 24.49 m

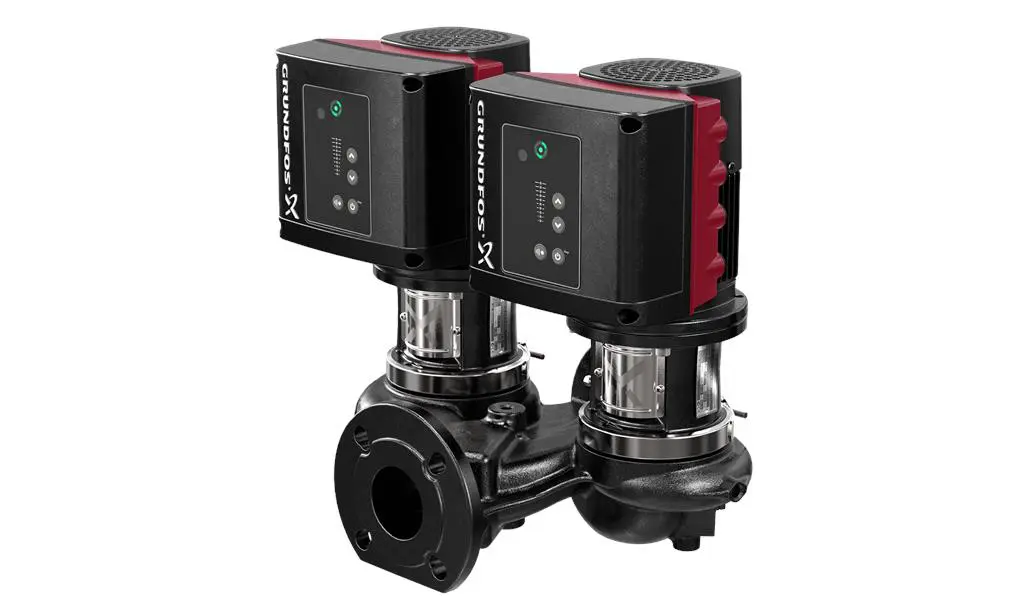

TPED Series 1000, TPE2 D

Grundfos TPED Series 1000, TPE2 D pumps are single-stage, close-coupled in-line centrifugal twin-head pumps with mechanical shaft seal and primely for applications such as heating/cooling/district energy. The pumps are fitted with frequency controlled motors.

Specification

• Variable speed

Flow & Head

• Max Flow: 428.8 m³/h
• Max Head: 130.7 m

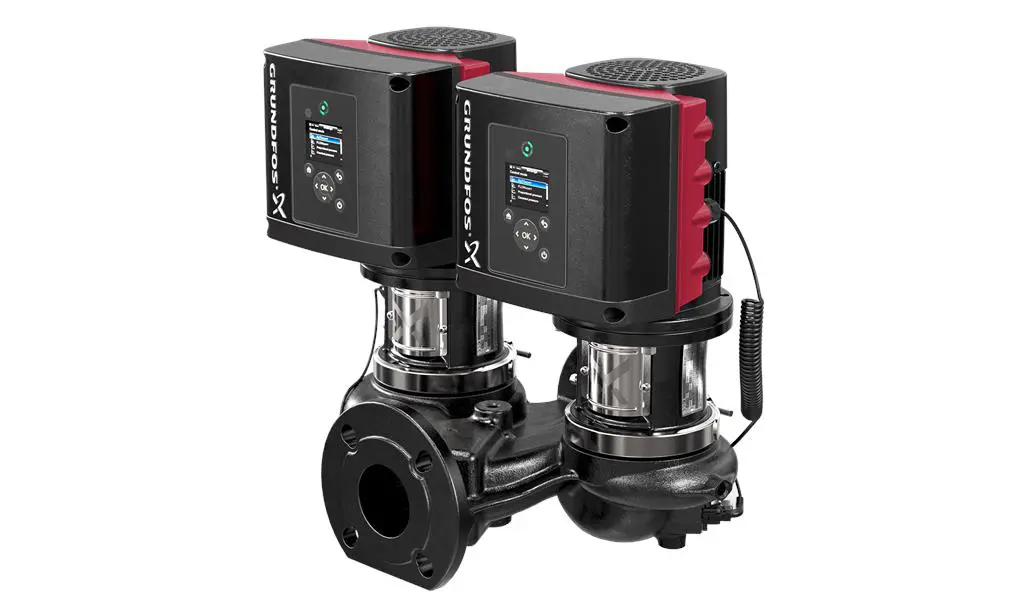

TPED Series 2000, TPE3 D

Grundfos TPED Series 2000, TPE3 D pumps are single-stage, close-coupled in-line centrifugal twin-head pumps with mechanical shaft seal and primely for applications such as heating/cooling/ district energy. The pumps are fitted with frequency controlled motors and differential pressure transmitter.

Specification

• Variable Speed

Flow & Head

• Max Flow: 428.8 m³/h
• Max Head: 130.7 m

TP

Single-stage in-line pumps with IE3 motors

Specification

• Fixed speed

Flow & Head

• Max Flow: 4374 m³/h
• Max Head: 139.3 m
