- Fixed or variable speed units – up to IE5 efficiency
- Single phase 230V & 3 phase 400V
- Large energy savings can be made
- We can supply, install, upgrade, repair and maintain
Benefits & Features
- Minimal maintenance needed
- Available single or twin head
- Bronze and stainless steel impellers
- Can be inverter driven for energy savings
- Energy efficient
Description

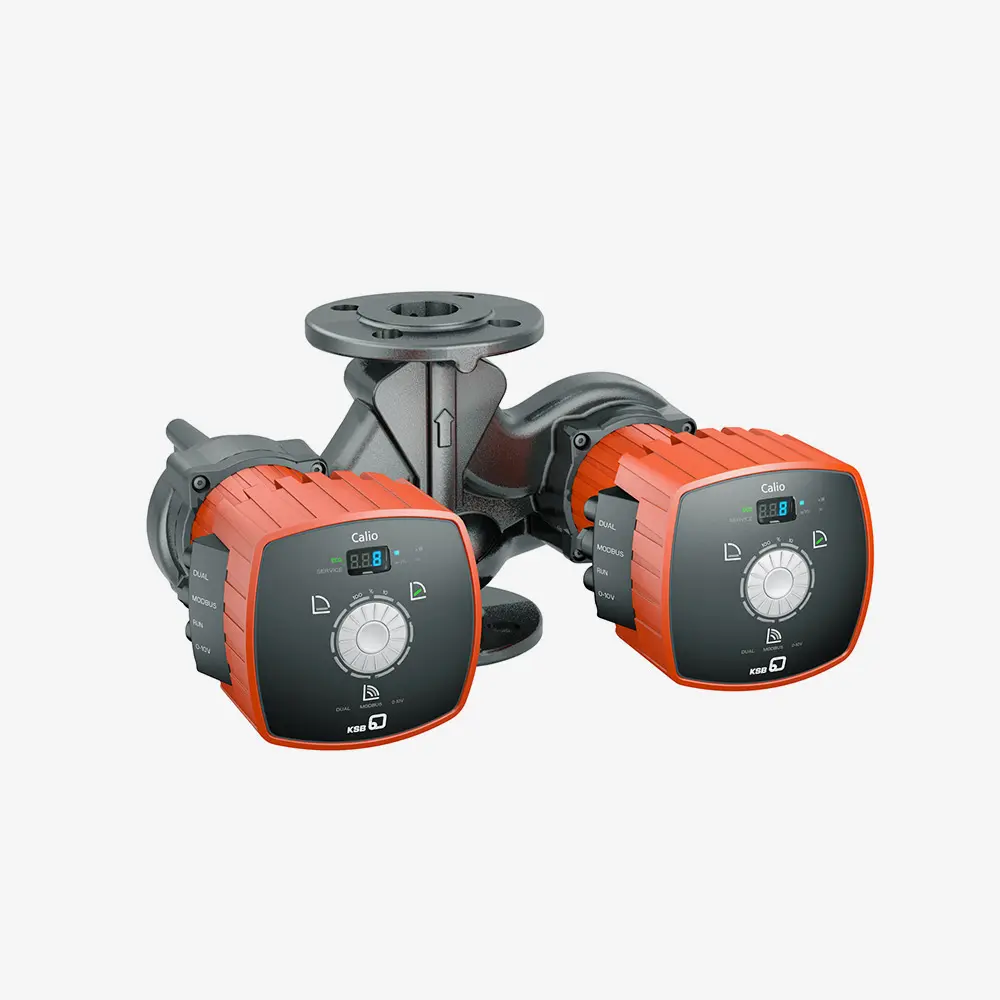

Heating pumps, also known as circulator pumps, are one of the most widely used pumps in the world and are simple, effective and reliable. In a standard set up, water enters the pump via a horizontal pipe, goes through the impeller and – using centrifugal force – is flung out a vertical discharge.
These can be found with glanded or glandless motors, otherwise knowns as canned motors. Smaller canned inline pumps typically come as standard with the motor mounted inverter drives. Inline pumps are normally available in single or twin head, which can be configured to automatically swap duties.
The HWS (hot water system) pumps are available bronze or stainless.
Circulator pumps are used to overcome the resistance in the pipework and valves to ensure even circulation or distribution of heat or hot water. Old belt drive and fixed speed systems can be easily upgraded to new energy-efficient systems with payback times from 6 to 36 months, depending on the application. In addition to saving energy, this can be a cost-effective way of upgrading your system. Let your energy savings pay for your upgrade.
Ranges available
- Standard inline range flow from 0 to 4500 m3/h
- Max head to 16 bar
- Standard end suction range flow from 0 to 1400 m3/h
- Standard temperature range up to 140 deg C
- High temperature range available to 350 deg C
- Single and twin head available
Manufacturers:
- Grundfos
- Lowara
- KSB
- Wilo
- Armstrong
- Smedegaard
- Kolmeks
