Brewing Success for Multinational Production Facility

icon image

The Challenge

This brewing company, a multinational production facility was about to embark on its cider milling season. During equipment checking they identified a damaged tank that required replacing.

As with any harvest, time is of the essence and Dura Pump had to work quickly to replace the current tank.

Share this case study
puzzle icon

The Solution


Our customer wanted to avoid stagnant water at the bottom of their new tank. We recommended a conical tank mounted in a frame to avoid sitting water. We also advised that the frame have adjustable feet to allow for the uneven surface, so the tank can sit level, optimising its capacity.

The tank was to be situated next to the customer’s current booster system where we also installed a float switch to be wired into the booster set control panel. The float switch acts as a low-level shut-off and prevents the booster set from emptying the tank and running dry.

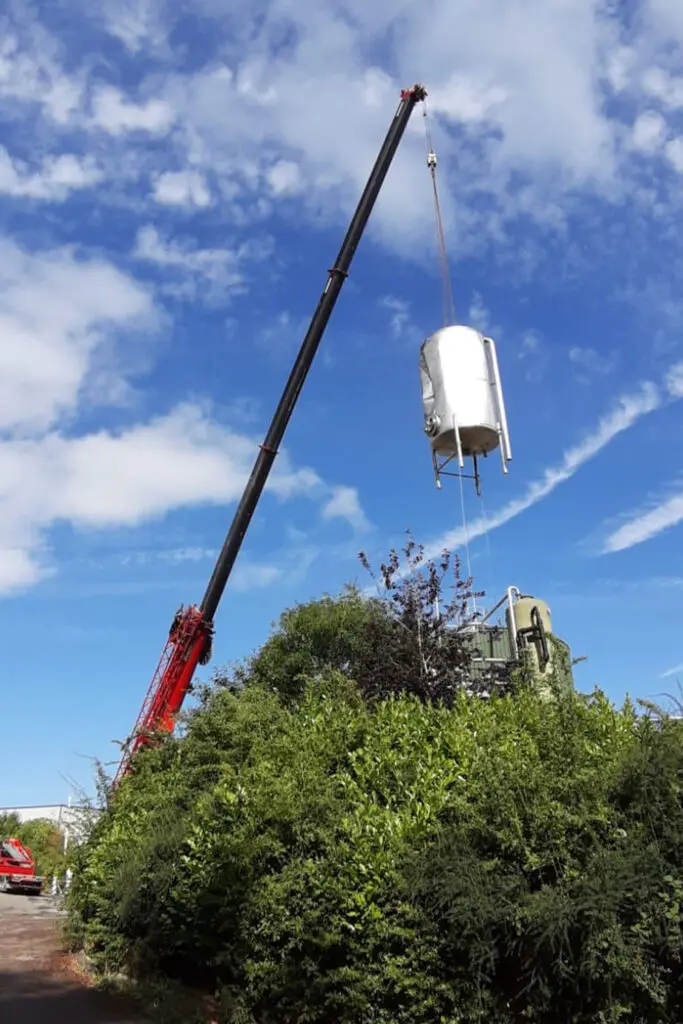

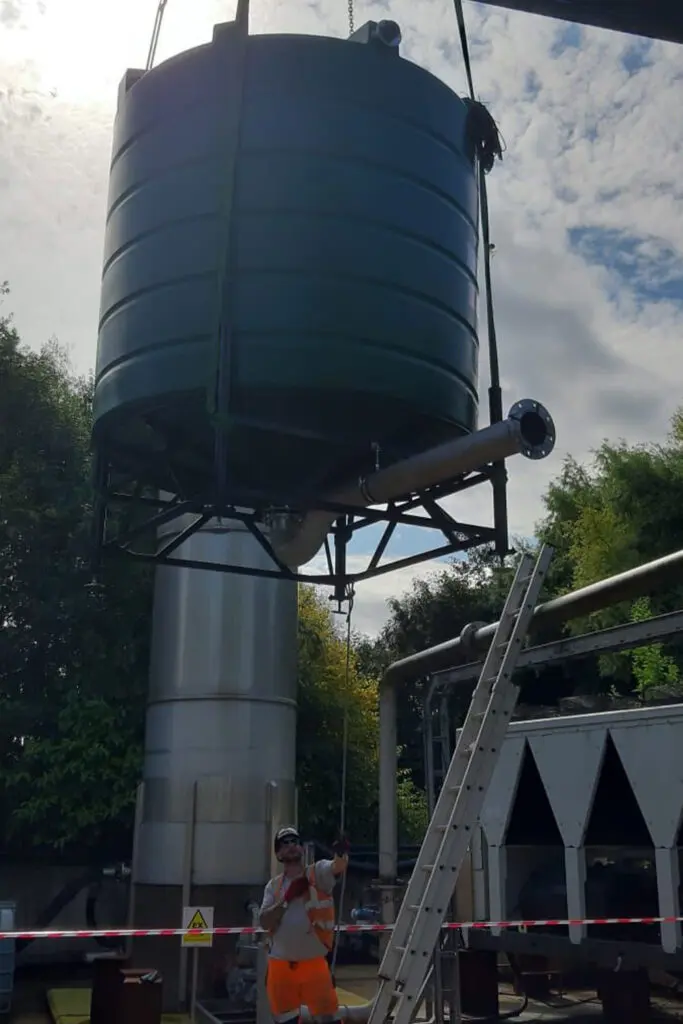

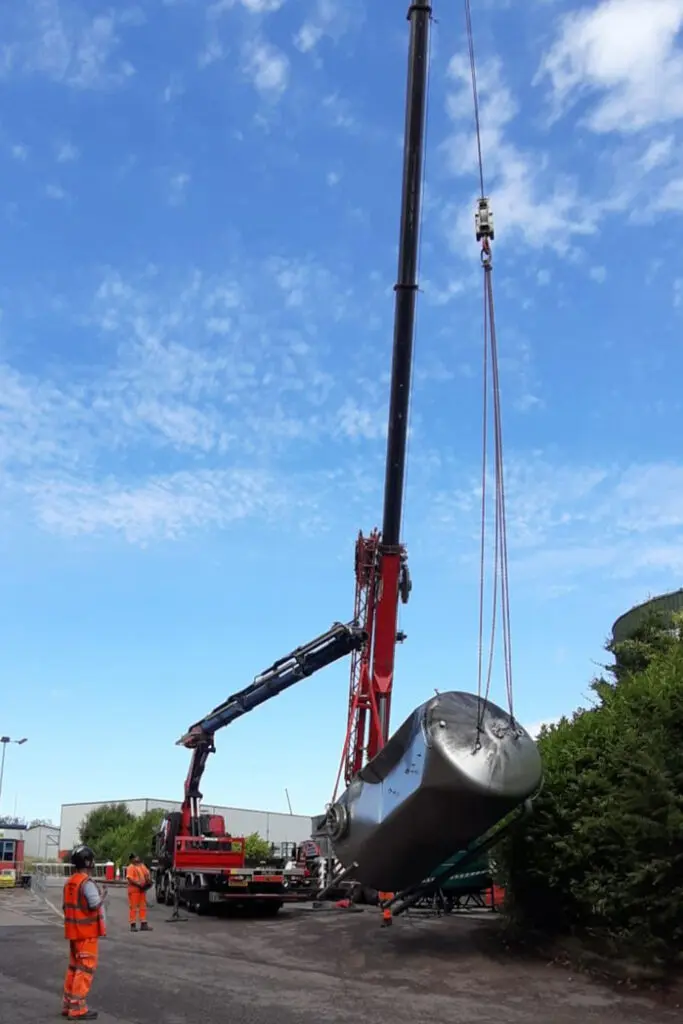

We also organised a crane and low loader to deliver the new tank and remove the old tank from the site.

Key actions included:

  • Installing a twin-head unit to provide essential standby capability.
  • Re-establishing the connection to the hospital’s Building Management System (BMS).
outcome icon

The Outcome

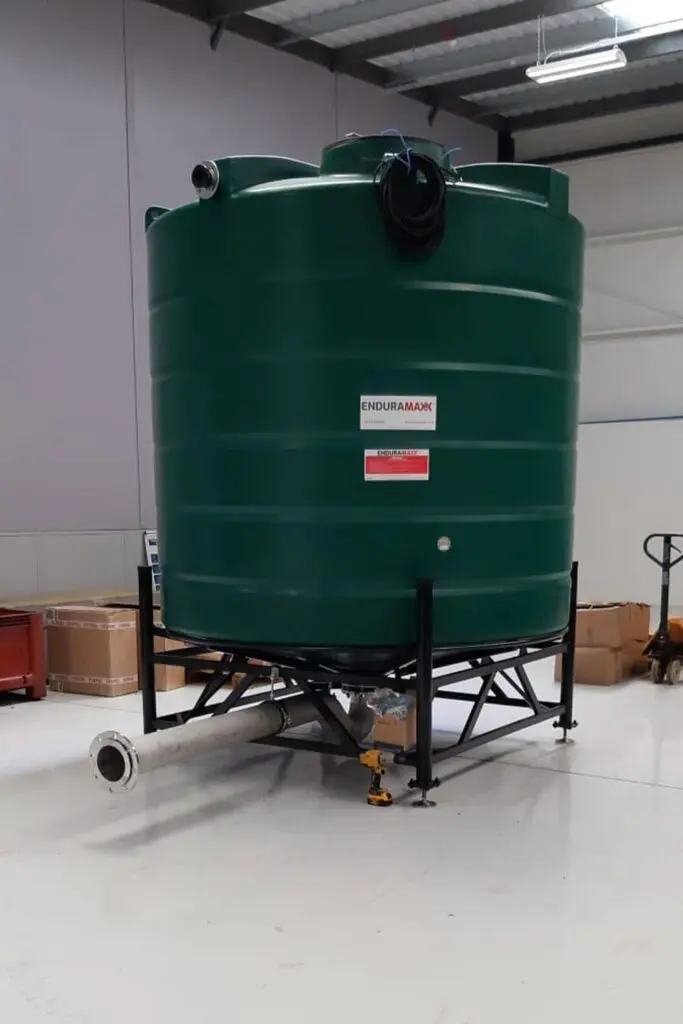

The customer now has a modern 10,000-litre cone tank which:

  • Allows for complete drainage of the tank.
  • Minimises waste.
  • Keeps the contents fresh and uncontaminated.
  • Is easier to clean.
  • Optimises space usage.
  • Allows better control over the application process, leading to reduced environmental impact.

This timely solution ensured the brewing company’s multinational production facility was well-prepared for their cider milling season without disruption.

Installation Technical Details

Tank

  • 620mm Tank Lid & Rim – Non-vented – Internal Rim 535mm
  • 6″ 160mm DN150 PE Stub Flange & Galv PN16 / PN10 Ring (Welded)
  • 2″ 63mm DN50 PE Stub Flange & Galv PN16 / PN10 Ring (Welded)
  • 4″ Fabricated Mushroom Vent (WELDED) – Screened

Frame

  • 2,400mm 15 Degree Cone Tank Frame – 2400mm L x 2600mm W – Zinc Primed, Painted Dark Green.
