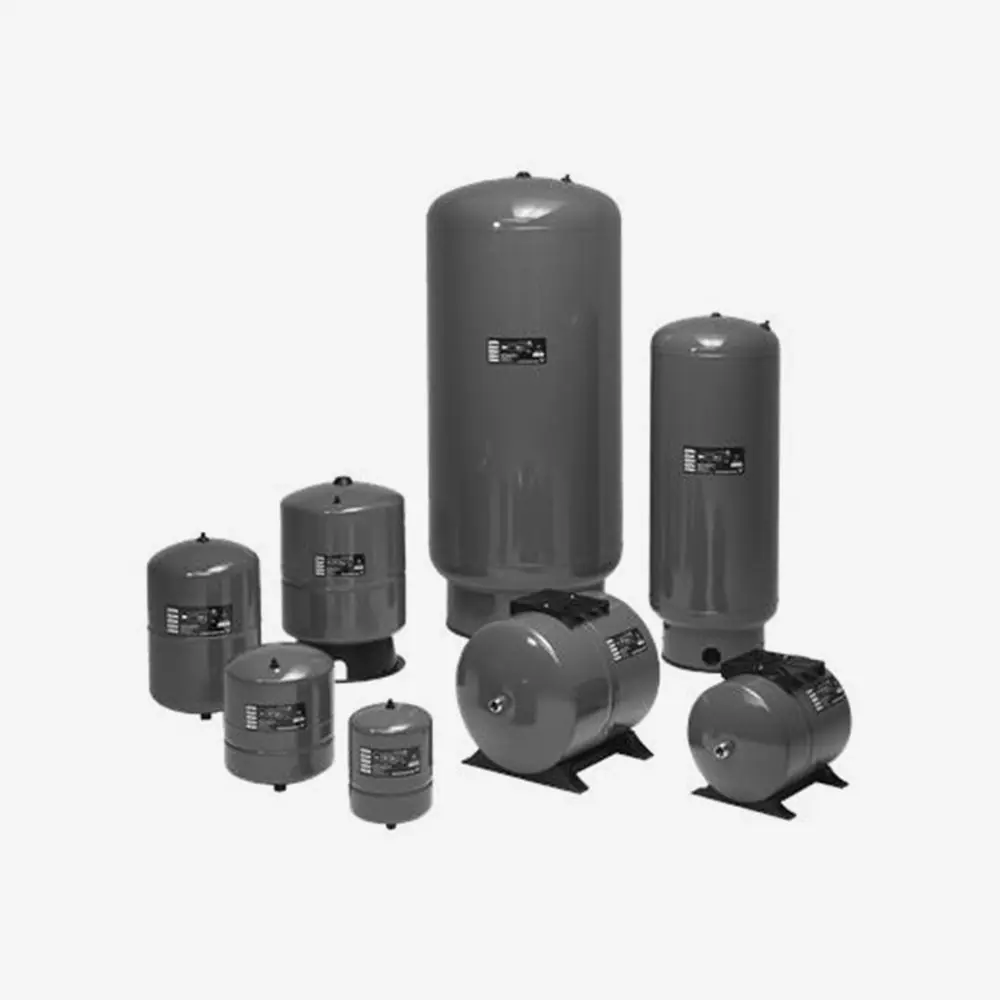

The Grundfos pressure tanks for cold water booster sets, heating systems and chilled water systemsare long-life tanks ideally suited for controlling the pressure in domestic as well as commercial and light industrial applications.
- Commercial, Industrial & Domestic Applications
- Approved for drinking water
- Reduce water hammer
- Range of sizes
Grundfos Pressure Vessels Range

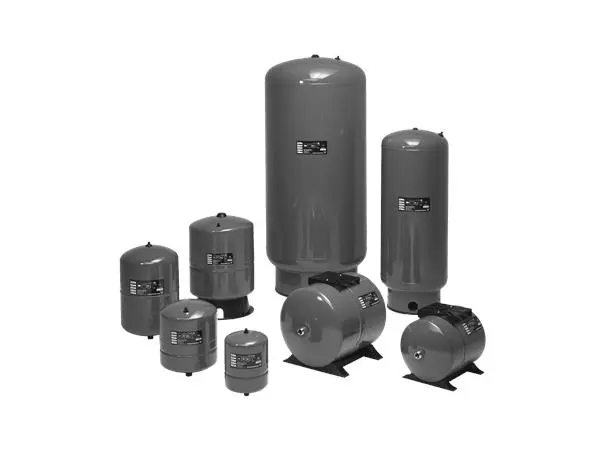

GT-H
The GT-H tanks are steel pressure tanks with a non-toxic butyl rubber diaphragm with a precision-moulded polypropylene liner for superior air and water separation. Recommend application: Drinking water.
Orientation
- Horizontal or Vertical
Specification
- Liquid temperature 0 – 90 °C Max: 10 bar

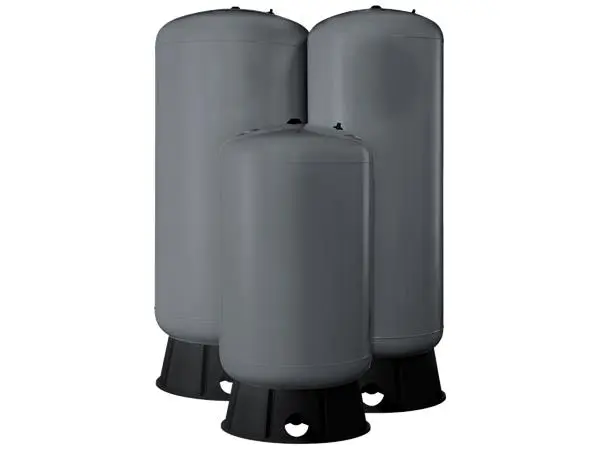

GT-D
The GT-D tanks are steel pressure tanks with double diaphragm. The diaphragm is a chlorine-resistant 100 % butyl diaphragm with a precision-moulded copolymer polypropylene liner for superior air and water separation. Also available as FlowThru variant. Recommend application: Drinking water.
Orientation
- Horizontal or Vertical
Specification
- Liquid temperature 0 – 90 °C Max: 10 bar

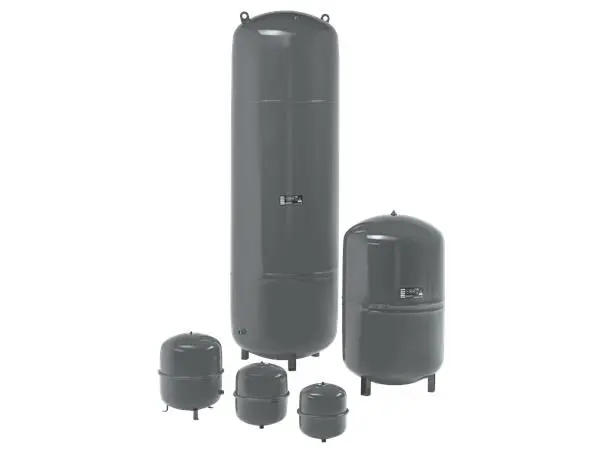

GT-HR
The GT-HR tanks are steel pressure tank with a non-replaceable rubber diaphragm, pre-charged with nitrogen. Recommend application: Heating water.
Orientation
- Vertical
Specification
- Liquid temperature 0 – 90 °C Max: 6 ba

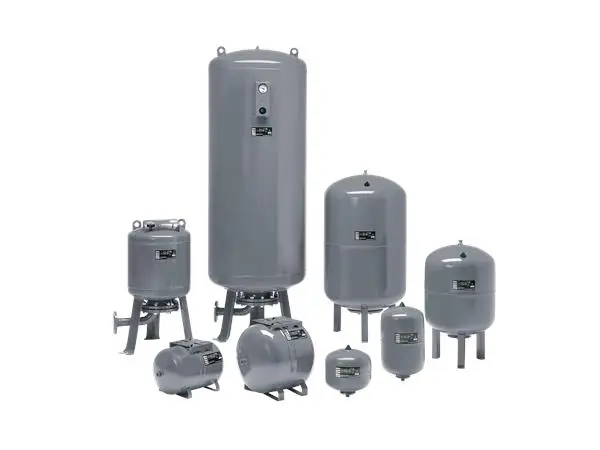

GT-U
The GT-U tanks are steel pressure tanks with a replaceable, non-toxic butyl rubber bladder enclosed by compressed nitrogen. Recommend application: Grey water and Drinking water.
Orientation
- Vertical
Specification
- Liquid temperature 0 – 70 °C Max: 25 bar
GT-U+
The GT-U+ tanks are steel pressure tanks with a replaceable, non-toxic butyl rubber bladder enclosed by compressed nitrogen, equipped with a Manometer and a connection for a pressure switch. Recommend application: Heating, Chilled water, Grey water and Drinking water.
Orientation
- Vertical
Specification
- Liquid temperature 0 – 90 °C Max: 25 bar
GT pressure tanks are long-life tanks suited for domestic, commercial and industrial applications in cold-water and heating systems.
Pressure tanks are commonly know as:
Pressure vessels
Expansion vessels
Hydaulic accumulators
Vessels used on Booster Sets
Pressure vessels are used on a booster set to protect the set from stopping and starting regularly, and to cushion shock waves when the demand for water stops or is closed off suddenly, for eg: a tap or valve is closed.
The size of the pressure vessel is linked to the system size.
If you are experiencing mechanical seal failure, consistent fluctuation in water pressure and pumps stopping and starting regularly, we recommend your pressure vessels are checked.
Vessels used on Heating, Hot water & Chilled water systems
Pressure vessels are used in these applications to take up the expansion and contraction of the system volume caused by temperature change.
As the system heats up, the system expands and the pressure vessel absorbs the excess water, as the system cools down and contracts, the pressure vessel discharges to maintain the systems set pressure. If you are experiencing constant fluctuation in system pressure, your pressurisation unit or fill and spill unit is running regularly or pressure relief valve is activating we recommend your pressure vessels are checked.
