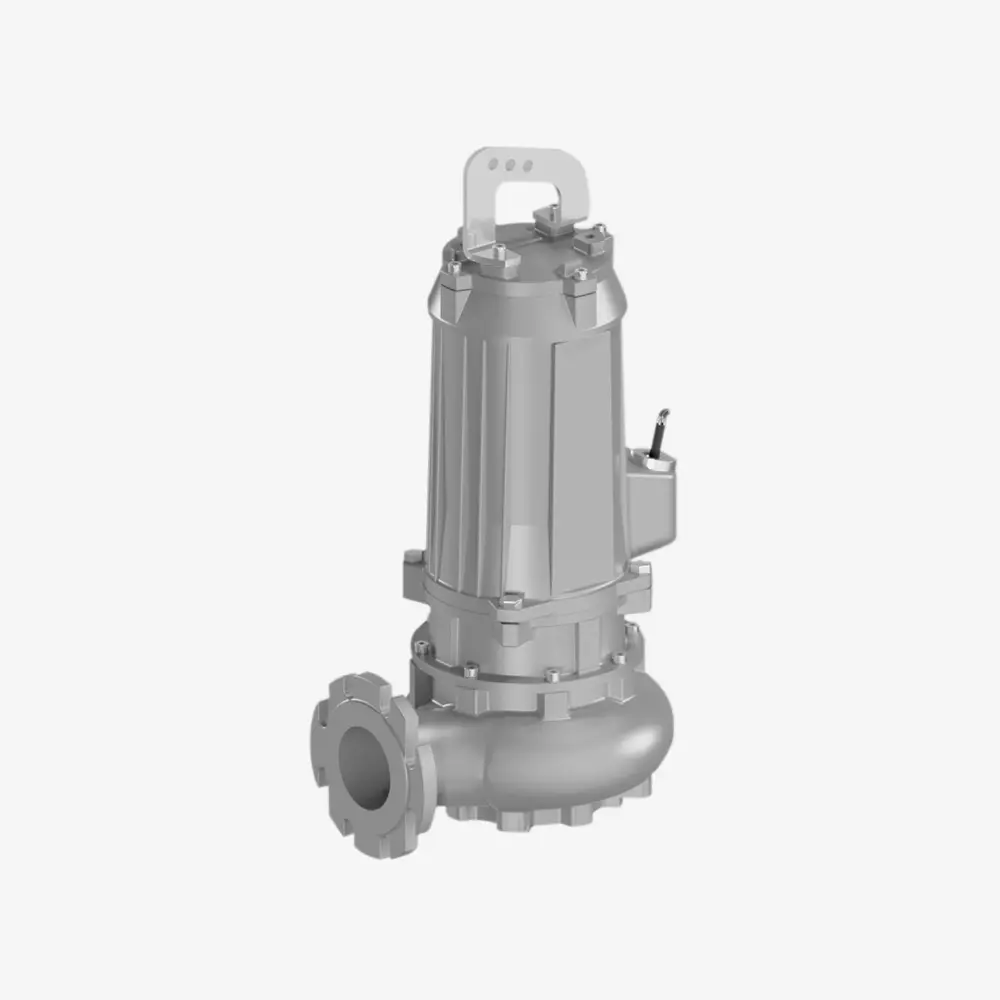

A Channel Impeller Submersible pump works directly on the pumped liquid with the liquid passing through the impeller itself.
- From sump pumps to flood defences
- Free standing or guide rail mounted
- We can supply, install, upgrade, repair and maintain
Benefits & Features
- Can include several channels of varying size
- Free passage of impurities up to a particular size
- Fibrous impurities may cause clogging
- Efficiencies as high as 80-85%
Description
A Channel Impeller works directly on the pumped liquid with the liquid passing through the impeller itself. It can be described as a closed, semi-open or open impeller.
The impeller can have one or more channels of varying size, allowing for the free passage of impurities up to a particular size. In those with more than one channel, fibrous impurities may get caught on the leading edges of the vane, causing the pump to clog. Liquid with a high sand content will cause problems with clearance, but when specified correctly this pump type can have efficiencies as high as 80-85%.
Ranges available
- Standard sizes from 0 to 500l/sec
- Standard sizes from 0.25kw to 55kw
- Large applications up to 8000/sec
- Larger applications up to 750kw
Let’s Talk Pressure, we understand that every facility has unique demands. speak with a system expert today and get a recommendation built around your environment.
