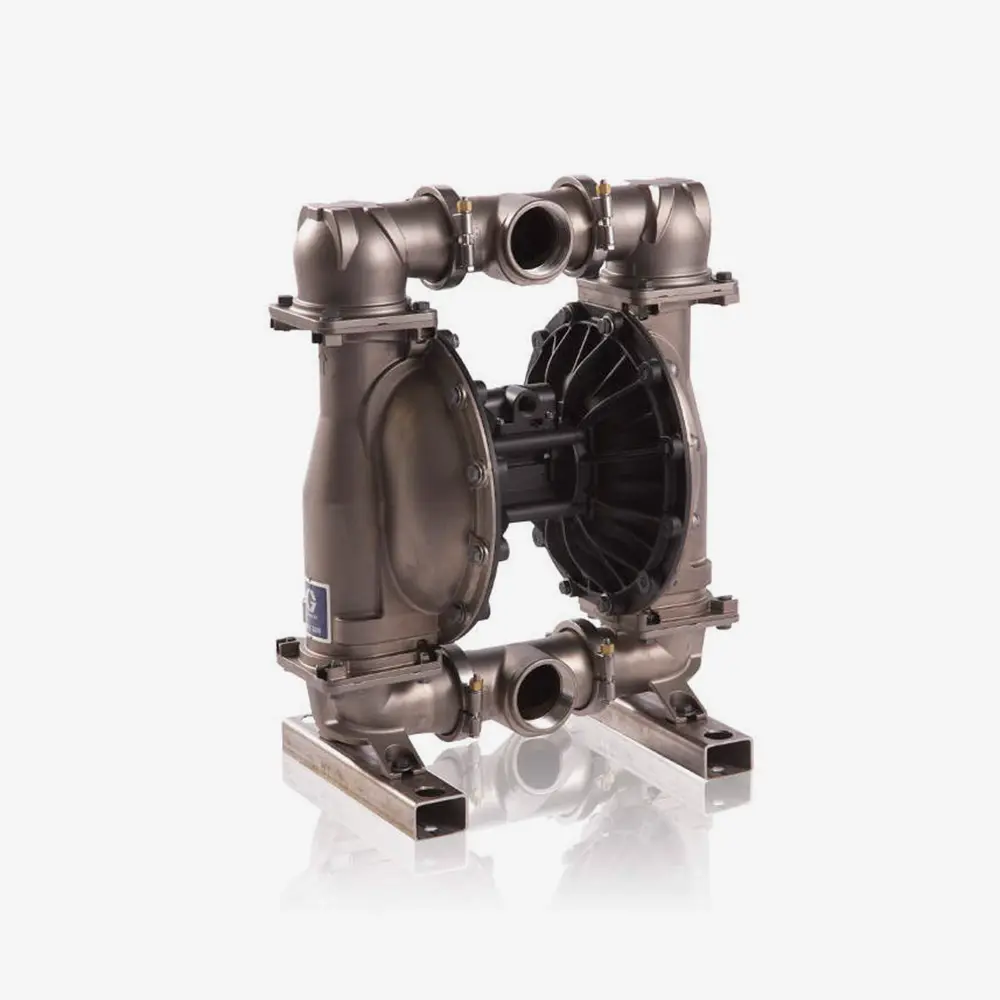

An air operated diaphragm pump is a positive displacement pump that typically uses compressed air as its power source. A vast range of materials allows these pumps to be used in many applications from aggressive chemicals to hygienic.
- Simple to operate and easy maintenance
- Run Dry capabilities
- Large range of materials to suit varying applications
- Hygienic options available
- Spare parts available
Benefits & Features
- Simple to strip and replace wearing parts – easy maintenance
- Self priming
- Rugged construction for reliable performance and long life
- Ability to pump very thick pastes and solids
- Run dry capabilities
- Compatible with almost any liquid, as a large range of pump body materials and wearing parts available
- Ideal for hygienic applications due to easy clamp system for quick dismantling and cleaning.
Description
An air operated diaphragm pump (also referred to as an AODD pump) is a unique system that innovates by using compressed air as a source of power. This is achieved via a linked shaft which effectively shifts the compressed air from chamber to chamber, with both chambers able to move simultaneously.
This process of shifting compressed air from one chamber to the other forces liquid out of one chamber directly into the discharge piping. Meanwhile, the other chamber will be filled with liquid simultaneously.
Air operated diapragm pumps act by utilising reciprocating elastomeric diaphragms and check valves which effectively pump the fluid. Available with ball check valves or flat-type check valves, these systems are ideal for working with products that require sensitive handling.
Ranges available
Range of pump body materials available:
- Polypropylene
- PVDF (Kynar)
- Stainless steel
- Hastelloy
- Aluminium
- Cast iron
Range of diaphragm materials available (or elastomers):
- Buna (Nitrile)
- Viton
- Teflon (PTFE)
- Wilflex (a thermoplastic elastomer)
- Saniflex (a food grade thermoplastic elastomer)
- EPDM
- Neoprene
Standard range available from: ¼” to 4”
Standard flow capabilities: 0 to 1136/LPM
Standard pressure: 0 to 8.6 bar
