Over the years, the classic C-pump has proven to be both reliable and robust. The Flygt C-range covers a wide capacity range and is designed to handle different types of media.
- High efficiency
- Excellent corrosion resistance
- Robust and reliable
- Motors with high power density

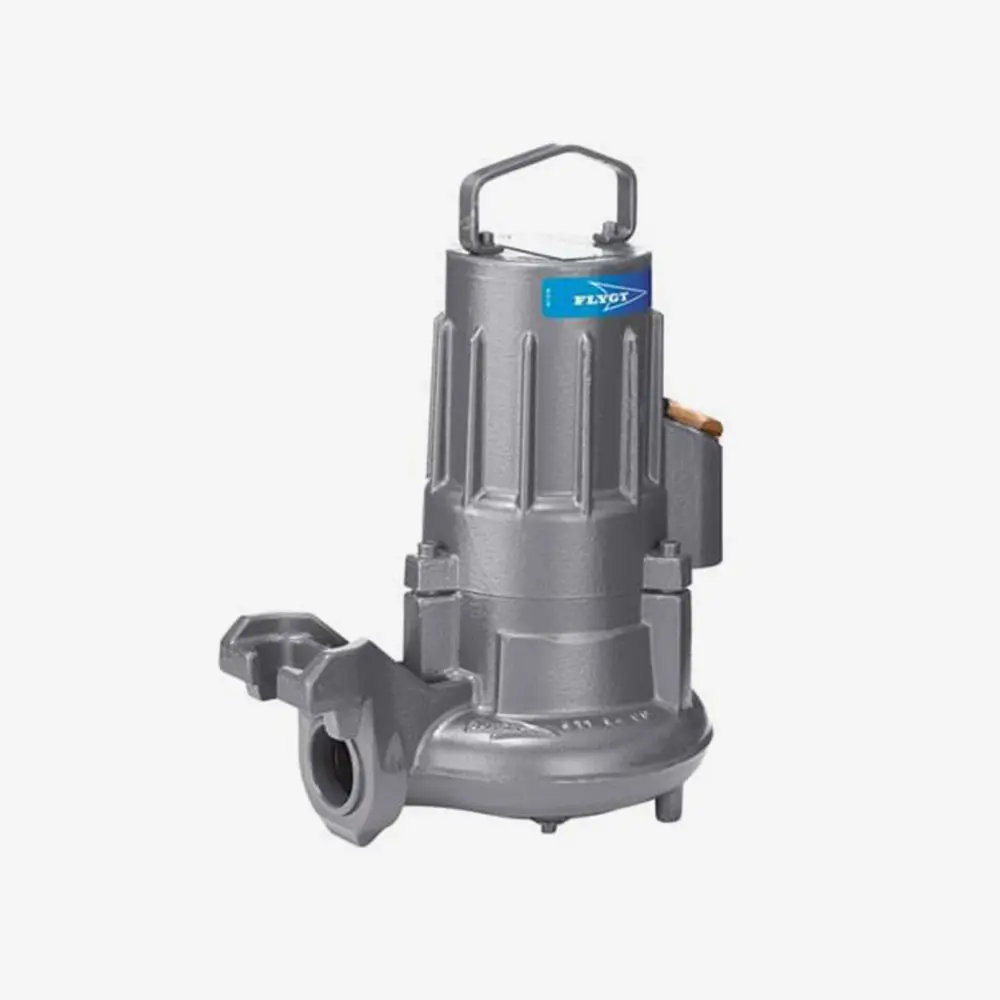

Flygt C3000 Channel Impeller Range
C3045
The C 3045 is the smallest pump in the C3000 range. It features a shrouded single-vane impeller. It has a short shaft overhang which reduces the shaft deflection while increasing the seal and bearing life.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 10.5l/s
- Max Head: 15m
- Max Liquid temperature 40°C

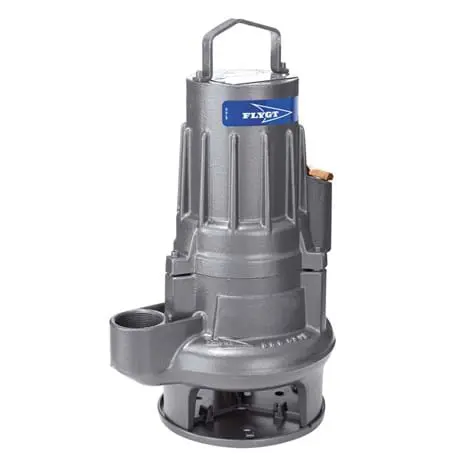

C3057
The C 3057 features a shrouded single-vane impeller. With an excellent flow passing capacity which reduces the risk for clogging in the impeller channel. It’s motor is also designed for submersible use which at the same time cools the motor.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 17l/s
- Max Head: 25m
- Max Liquid temperature 40°C

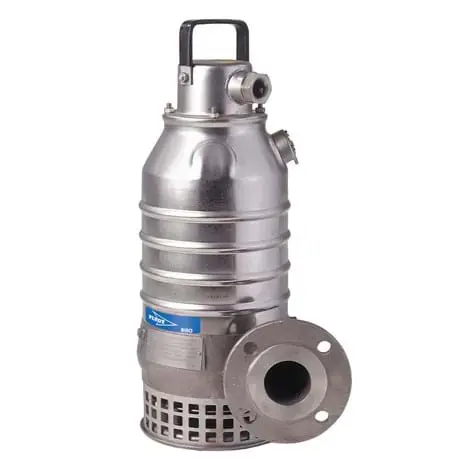

C3060
The Flygt C 3060 stainless steel pump is made of AISI 329 material and is designed for maximum reliability. It is suitable to be used in the chemical industry, food processing industry, pharmaceutical industry and textile industry.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 15l/s
- Max Head: 40m
- Max Liquid temperature 40°C

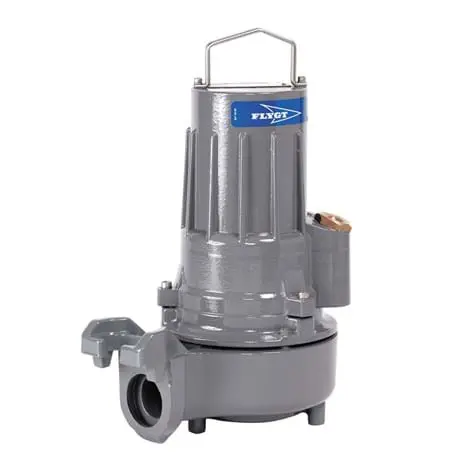

C3068
The C 3068 features a shrouded single-vane impeller.It has a motor with high power density and is made to be very robust and reliable.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 15l/s
- Max Head: 27m
- Max Liquid temperature 40°C

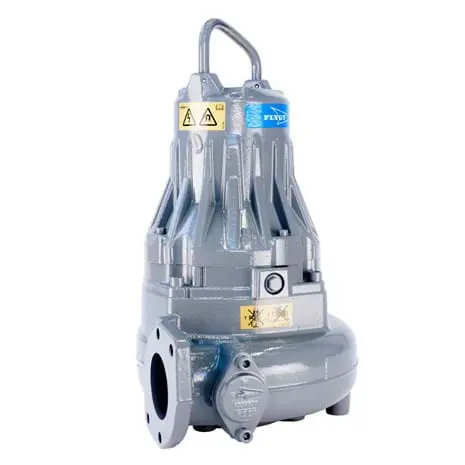

C3085
The Flygt C 3085 has a single-vane impeller, which would increase the flow capabilities. The Stainless steel shaft gives the pump maximum strength and corrosive resistance.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 26/s
- Max Head: 12m
- Max Liquid temperature 40°C

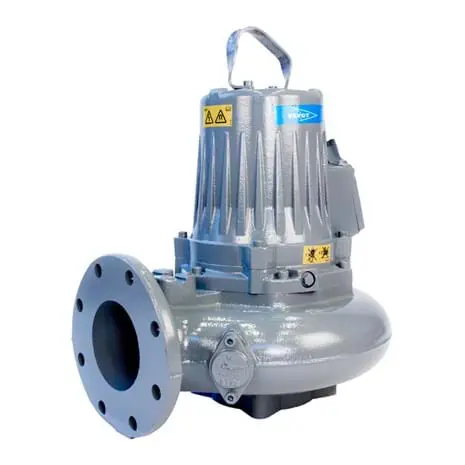

C3102
The Submersible Flygt C 3102 has a narrow gap between the interchangeable wear rings which ensures high efficiency. It is also has a double mechanical seal system, made up of two mechanical shaft seals which work independently to provide double security.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 47l/s
- Max Head: 15m
- Max Liquid temperature 40°C

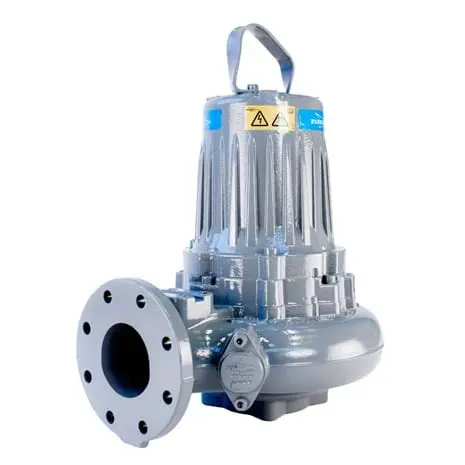

C3127
The Flygt C 3127 has similar features to the rest of the range with a single-vane impeller, a short shaft and a motor designed to be submersible. But it also has the griplock system which securely locks to the shaft with no rubber friction, no grub screws and no shaft damage.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 92l/s
- Max Head: 40m
- Max Liquid temperature 40°C

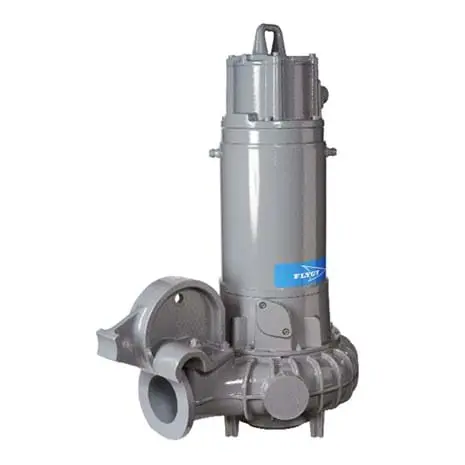

C3231
The C 3231 two-channel impeller is available in cast iron or duplex stainless steel. It has excellent flow passing properties that reduce clogging in the impeller channel. A narrow gap between the interchangeable wear rings ensures high efficiency. And has the Subcab motor cable specifically designed for submersible uses.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 380l/s
- Max Head: 68m
- Max Liquid temperature 40°C
Over the years, the classic C-pump has proven to be both reliable and robust. The Flygt C-range covers a wide capacity range and is designed to handle different types of media.
