The Flygt Vortex range of submersible pumps is made to work in demanding environments where the sewage or waste water may include debris that is needed to be shifter without blocking up the pump.
- Free flow-through passage
- Reduced wear
- Low maintenance requirements
- Robust and Reliable
Flygt C3000 Vortex Pump Range
D3045
The D3045 is a small but effective Vortex Pumps. It’s engineered to work in demanding environments. This design of pump is designed with a free flow through passage to enable small debris to be pumped through.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 10.5l/s
- Max Head: 15m
- Max Liquid temperature 40°C

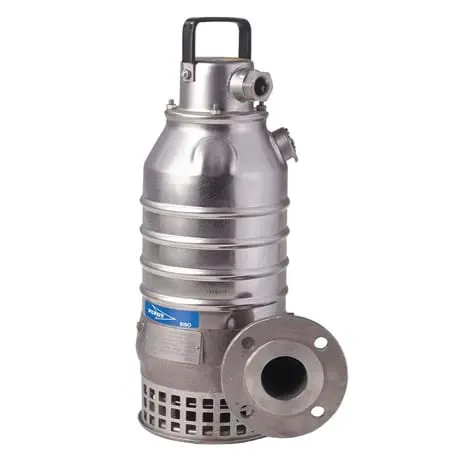

D3060
The D3060 is a reliable pump that is suited to handling corrosive materials. This pump is designed so that there is reduced amount of wear and a low amount of maintenance is required. Pump material handle liquids with pH-values between 2 and 14.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 17l/s
- Max Head: 25m
- Max Liquid temperature 40°C

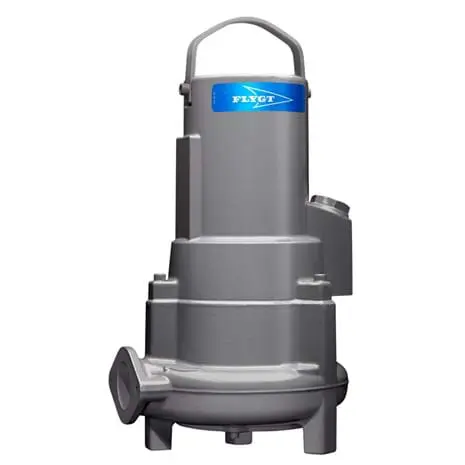

D3069
The Flygt D3069 is a robust and reliable pump with low maintenance requirements. Its free flow-through passage handles sludge concentration up to 4% of dry solids. Being engineered for demanding environments, this pump can easily transports media for municipal sewage, industrial wastewater and a wide range of other applications.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 15l/s
- Max Head: 40m
- Max Liquid temperature 40°C

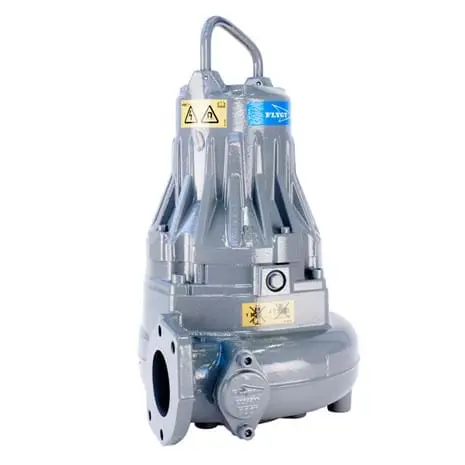

D3085
This large D3085 pump is constructed out of cast iron which makes it very robust and durable. Having the flow through feature means that the risk of clogging is massively reduced. All parts are designed to maximise the operation and the pumps service life.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 15l/s
- Max Head: 27m
- Max Liquid temperature 40°C
D3102
The Submersible Flygt D3102 has a narrow gap between the interchangeable wear rings which ensures high efficiency. It also has a double mechanical seal system, made up of two mechanical shaft seals which work independently to provide double security.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 26l/s
- Max Head: 12m
- Max Liquid temperature 40°C
D3127
The Flygt D3127 has similar features to the rest of the range with a single-vane impeller, a short shaft and a motor designed to be submersible. But it also has the griplock system which securely locks to the shaft with no rubber friction, no grub screws and no shaft damage.
Specification
- Immersion depth: 20m
Flow & Head
- Max Flow: 47l/s
- Max Head: 15m
- Max Liquid temperature 40°C
The Flygt Vortex range of submersible pumps is made to work in demanding environments where the sewage or waste water may include debris that is needed to be shifter without blocking up the pump.
