Grundfos – Borehole Pumps

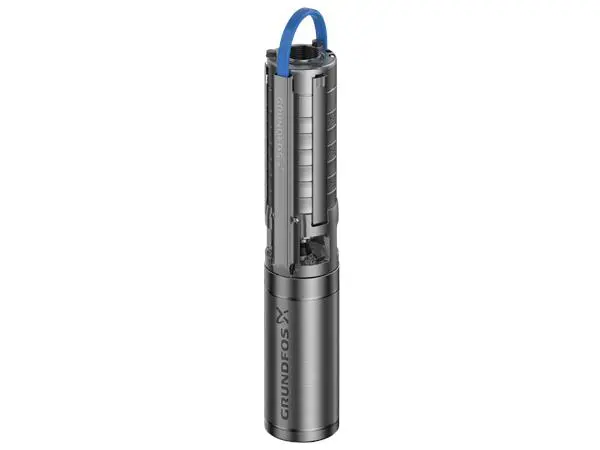

SP

Grundfos SP are submersible borehole pumps, designed for pumping groundwater. Grundfos SP are all stainless-steel pumps, and they are available in 3 material grades. The pumps are suitable for boreholes in sizes ranging from 4″ over 6″ and 8″ to 10″. The motor sizes for the pumps are available in 0.37-250 kW.

Specification

N/A

Flow & Head

• Max Flow: 283 m³/h
• Max Head: 670 m Liquid temperature 0 .. 90 °C

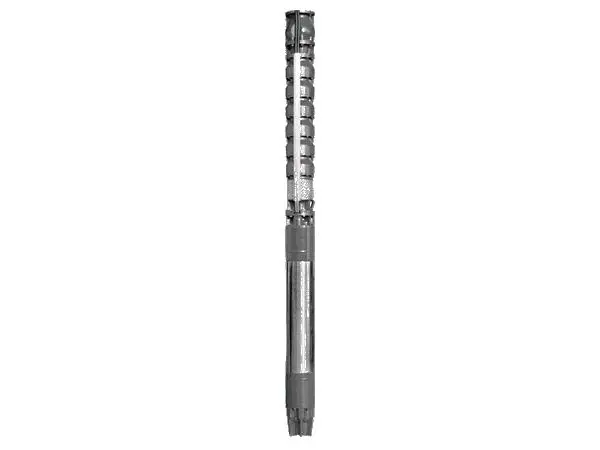

SP – G

Grundfos SP are submersible borehole pumps, designed for pumping groundwater. Grundfos SP-G are high capacity cast iron pumps. The pumps are suitable for boreholes in size 12″.

Specification

N/A

Flow & Head

• Max Flow: 473 m³/h
• Max Head: 274 m Liquid temperature 0 .. 40 °C

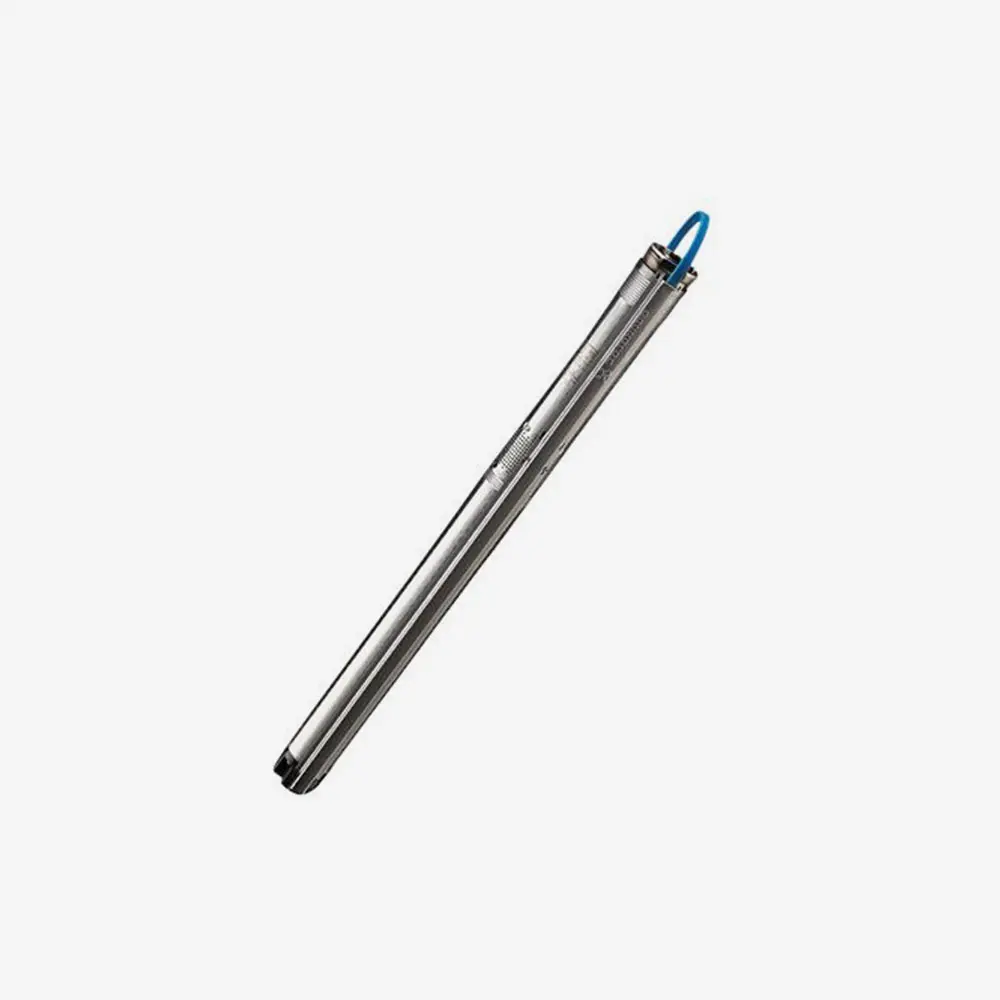

SQ

Grundfos SQ pumps are compact submersible pumps, designed for domestic groundwater supply for private housing, small waterworks, and small irrigation systems.

Specification

• 75mm diameter

Flow & Head

• Max Flow: 9 m³/h
• Max Head: 230 m Liquid temperature 0 .. 35 °C

SQE

Grundfos SQE pumps are compact submersible pumps, designed for constant pressure applications within domestic groundwater supply for private housing, small waterworks, and small irrigation systems.

Specification

N/A

Flow & Head

• Max Flow: 9 m³/h
• Max Head: 230 m Liquid temperature 0 .. 35 °C

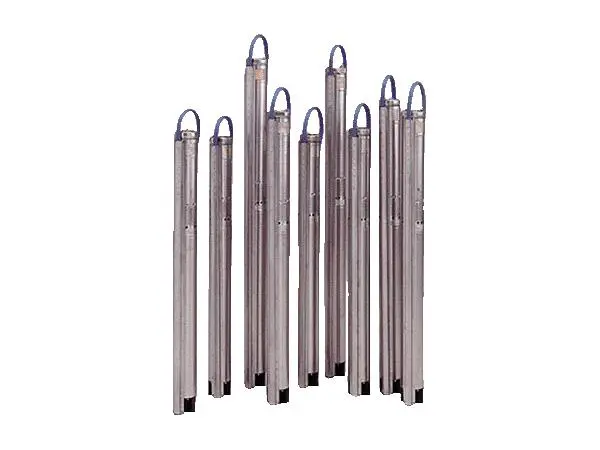

SQE-NE

Grundfos SQE-NE pumps are compact submersible pumps, designed for remedial pumping and liquid sampling from areas with contaminated groundwater.

Specification

N/A

Flow & Head

• Max Flow: 8 m³/h
• Max Head: 71 m Liquid temperature 0 .. 35 °C

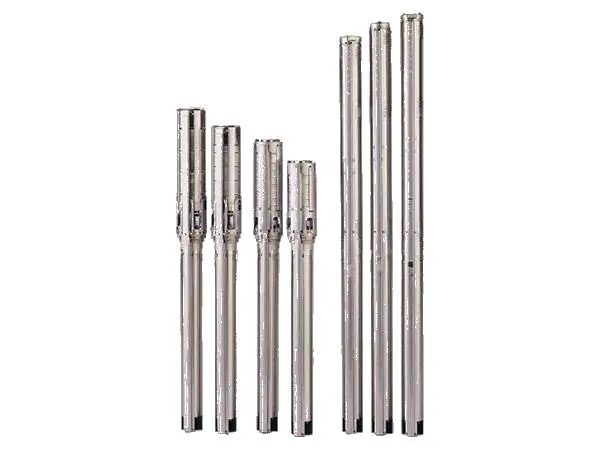

SQFlex

Renewable energy submersible pumps with build in inverter for solar, wind and AC powersource. Runs on both AC and DC voltage

Specification

N/A

Flow & Head

• Max Flow: N/A
• Max Head: Liquid temperature 0 .. 40 °C
