Grundfos range covers drainage, effluent and sewage pumps for a wide range of applications in building services and industrial applications as well as transfer of raw sewage in municipal sewage systems.
- Super Vortex and S Tube Impeller options
- In built Auto adapt control function range
- Dry well capabilities
- Range covers sump to dewatering pumps
Grundfos Submersible & Sump Pumps Range

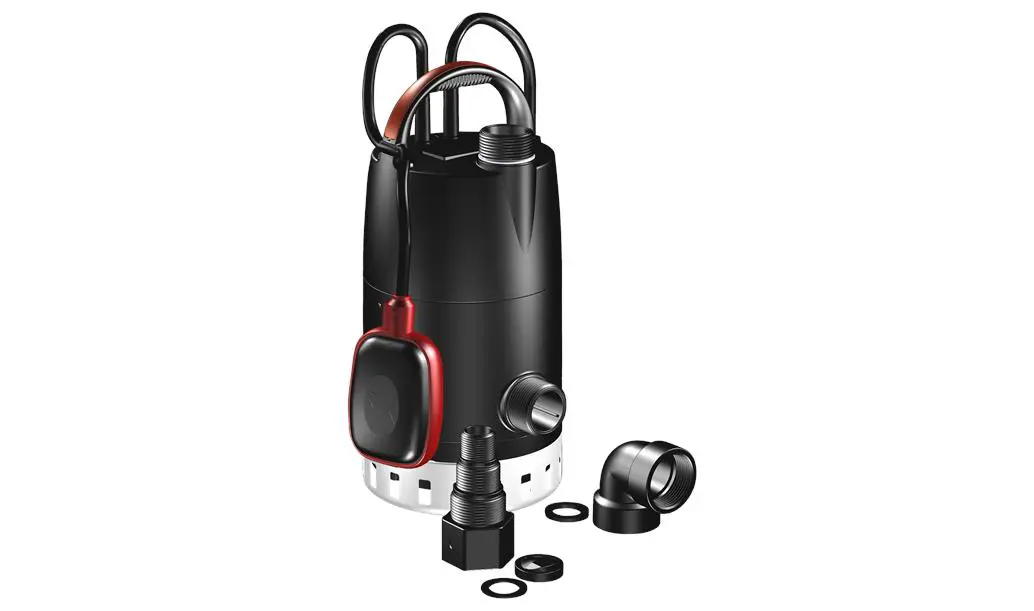

UNILIFT CC
Grundfos UNILIFT CC pumps are single-stage submersible pumps designed for pumping clean, non-aggressive water and slightly dirty (grey) wastewater. Capable of pumping down to 3 mm water level. The pumps have both a top and a side outlet allowing easy adaptation to existing pipework.
Specification
- Channel
Flow & Head
- Max Flow: 4.08l/s
- Max Head: 9.

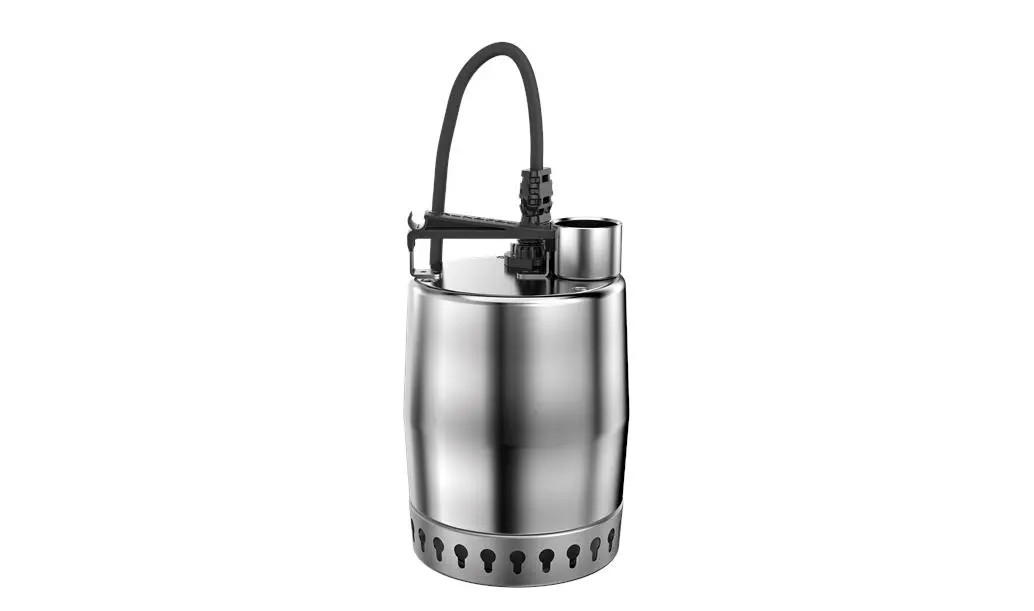

UNILIFT KP
Grundfos UNILIFT KP are stainless-steel submersible pumps designed for pumping non-aggressive water and grey wastewater such as drainage and domestic effluents with particles up to 10 mm. The pump can be used as a portable unit or stationary installation inside and outside buildings.
Specification
- Channel
Flow & Head
- Max Flow: 3.89l/s
- Max Head: 9.7m
AP
AP pumps are designed for pumping wastewater, sludge-containing water, groundwater and sewage. APG are equipped with cutter system for grinding solids into small pieces.
Specification
- Grinder
Flow & Head
- Max Flow: 8.89l/s
- Max Head: 68m
UNILIFT AP12
Grundfos UNILIFT AP12 are stainless-steel submersible pumps designed for pumping non-aggressive water and grey wastewater such as drainage and domestic effluents with particles up to 12 mm. The pump can be used as a portable unit or stationary installation inside and outside buildings.
Specification
- Vortex
Flow & Head
- Max Flow: 8.17l/s
- Max Head: 18.28m
UNILIFT AP35
Grundfos UNILIFT AP35 are stainless-steel submersible pumps designed for pumping non-aggressive water and grey wastewater such as drainage and domestic effluents with particles up to 35 mm. The pump can be used as a portable unit or stationary installation inside and outside buildings.
Specification
- Channel
Flow & Head
- Max Flow: 6.39l/s
- Max Head: 13m
UNILIFT AP35B
Grundfos UNILIFT AP35B are stainless-steel submersible pumps designed for pumping effluents (excluding toilet discharge), with particles up to 35 mm. The pump is suitable for installation on auto coupling, allowing for easy access to the pump for maintenance and other purposes.
Specification
- Vottex
Flow & Head
- Max Flow: 5.75l/s
- Max Head: 13m
UNILIFT AP50
Grundfos UNILIFT AP50 are stainless-steel submersible pumps designed for pumping non-aggressive water and grey wastewater such as drainage and domestic effluents with particles up to 50 mm. The pump can be used as a portable unit or stationary installation inside and outside buildings
Specification
- Channel
Flow & Head
- Max Flow: 9.44l/s
- Max Head: 13m
UNILIFT AP50B
Grundfos UNILIFT AP50B are stainless-steel submersible pumps designed for pumping waste water, including toilet discharge (where allowed), with particles up to 50 mm. The pump is suitable for installation on auto coupling, allowing for easy access to the pump for maintenance and other purposes.
Specification
- Vortex
Flow & Head
- Max Flow: 8.17l/s
- Max Head: 18.28m

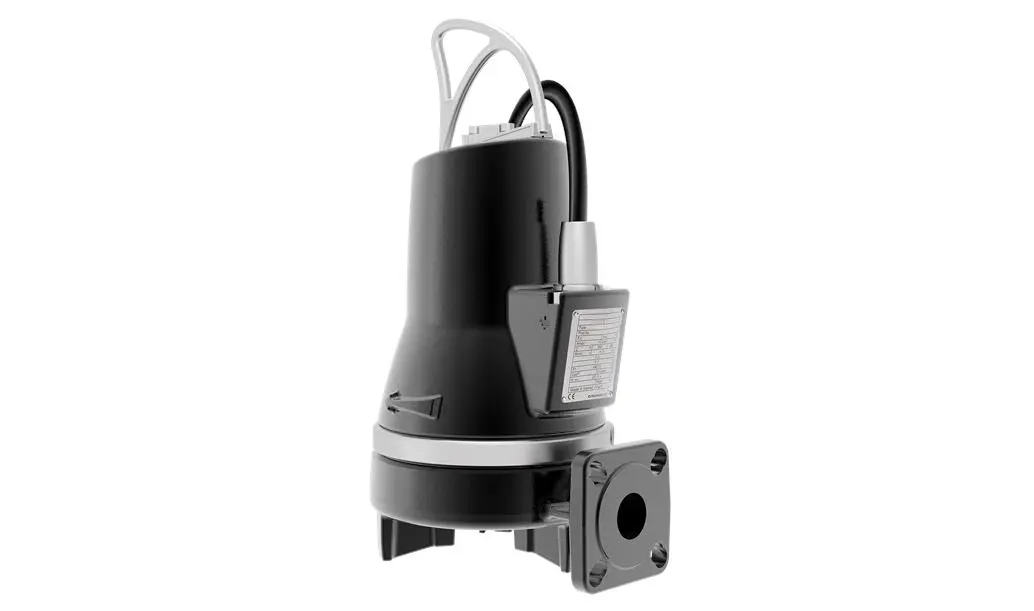

SEG
Submersible Grundfos SEG sewage grinder pumps (0.9-4 kW) are designed for pumping wastewater, sludge-containing water, and sewage. Fitted with a patented grinder system designed to grind the media.
Specification
- Grinder
Flow & Head
- Max Flow: 9.5l/s
- Max Head: 48.2m

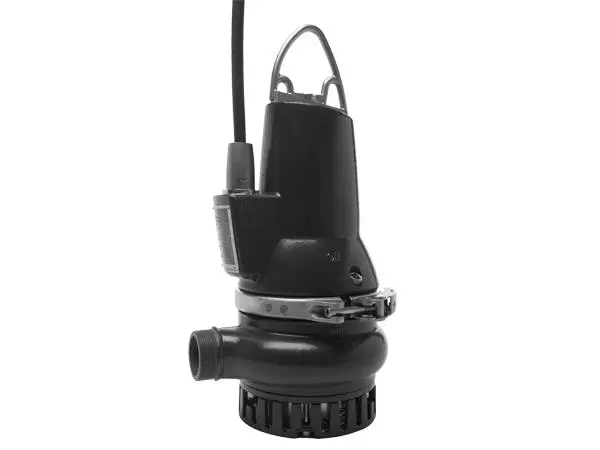

DP
Submersible Grundfos Drainage Pumps (DP) cover a motor range of 0.9-2.6 kW. The pumps are fitted with a semi-open multi-vane impeller capable of handling solids up to 10 mm in size.
Specification
- Semi-open milti-vane
Flow & Head
- Max Flow: 13.6l/s
- Max Head: 25.1m
EF
Grundfos EF pumps have a single-vane, semi-open impeller for 30 mm free passage, designed for pumping effluent and other liquids such as drainage and surface water with fibres and small impurities.
Specification
- Single-vane semi-open impellor
Flow & Head
- Max Flow: 12.2l/s
- Max Head: 22.5m

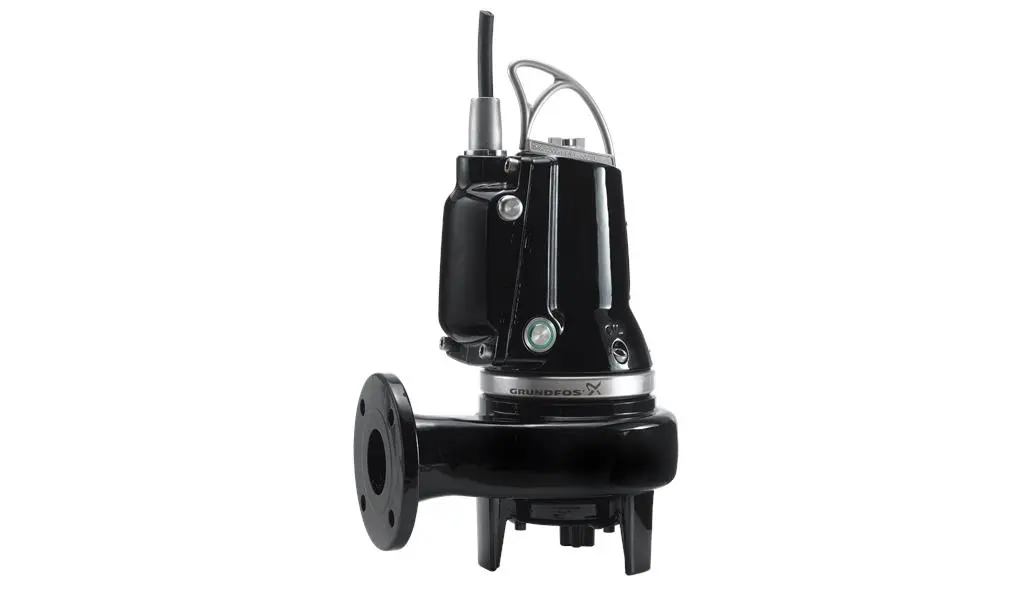

SL
Submersible Grundfos SL sewage pumps (1.1-11 kW) are fitted with either S-tube® (SL1) or SuperVortex impeller (SLV). The free passage through the pump varies from 50-100 mm depending on size.
Specification
- S- Tube
Flow & Head
- Max Flow: 83.3l/s
- Max Head: 46.3m
SE
Submersible Grundfos SE sewage pumps (1.1-11 kW) are fitted with either S-tube® (SE1) or SuperVortex impeller (SEV). The free passage through the pump varies from 50-100 mm depending on size.
Specification
- S-tube and Super Vortex
Flow & Head
- Max Flow: 83.3l/s
- Max Head: 43.6m
SE/SL
Submersible Grundfos SE/SL sewage pumps (9-30 kW) are fitted with either S-tube® or SuperVortex impeller (SLV). The free passage through the pump varies from 75-125 mm depending on size.
Specification
- S-tube and Super Vortex
Flow & Head
- Max Flow: 225l/s
- Max Head: 78m
A sump pump is a small submersible pump that is most commonly installed in the lowest part of premises such as a basement, cellar or plant room. The role of the sump pump system is to keep the area under the building dry or to prevent flooding.
Sump pumps work in conjunction with a sump pit or sump pump tank. This pit is built beneath the level that needs to remain dry, which is usually the floor level. Water or other waste liquids that may spill during a process will collect in the pit as it is channelled there and be pumped away to prevent flooding.
Options of low suction pumps, more commonly known as “puddle suckers”, for emptying shallow pits or spillages.
Small sump pumps are often very critical in many applications. A failed sump pump could mean a flooded factory floor, a flooded store or a flooded plant room. Often they are overlooked. However they are typically a cheap and quick install, that can save thousands.
If you are looking for a strong and experienced full line supplier of wastewater products, look no further.
Grundfos’ trademark is to develop and produce highquality, energy efficient pumps for every area of the commercial buildings sector, and wastewater is no exception. Increasing urbanisation along with the demand for uncompromised comfort makes wastewater a key area to focus on for every professionally engaged planner, and Grundfos is there to help throughout the process. We offer pumps, lifting stations and pumping stations for:
- Drainage water (including groundwater)
- Rain and surface water
- Grey water
- Black water
