From single-pump systems to large pressure booster systems incorporating multiple pumps – KSB has the right solution.
- Single to Multiple Pump Systems
- Built for reliability
- WRAS Approved options
- Broad Range – Domestic to Industrial
KSB Booster Sets Range

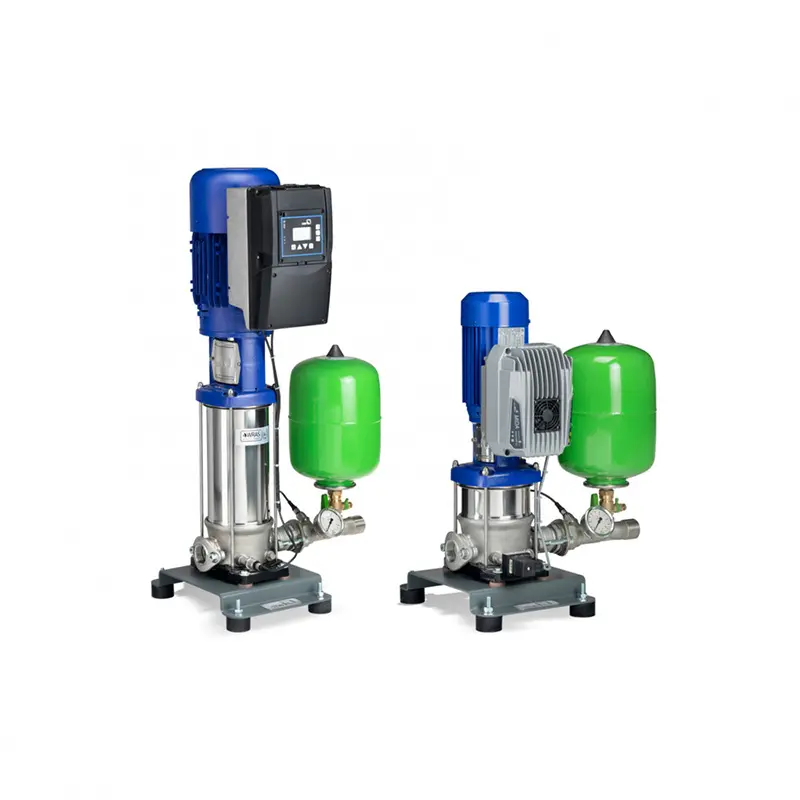

KSB Delta Solo
Fully automatic single-pump system available in two variable speed versions. The frequency inverter operated MVP and SVP versions ensure variable speed control of the pump by motor-mounted frequency inverter for asynchronous motors (MVP) or PumpDrive variable speed system and KSB SuPremE motor (SVP), respectively, providing fully electronic control to ensure the required supply pressure.
Flow & Head
- Max Flow: 21.8m3/h
- Max Head: 134m

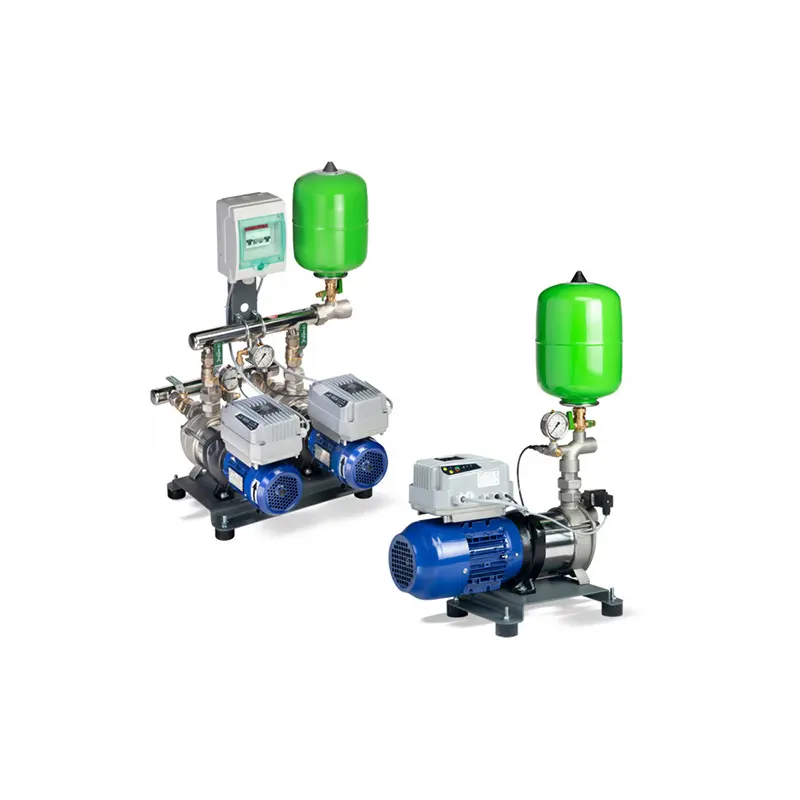

KSB Delta Compact
This is a fully automatic read-to-connect package single-pump pressure booster system/dual-pump pressure booster system with variable speed system.
Flow & Head
- Max Flow: 20m3/h
- Max Head: 57m

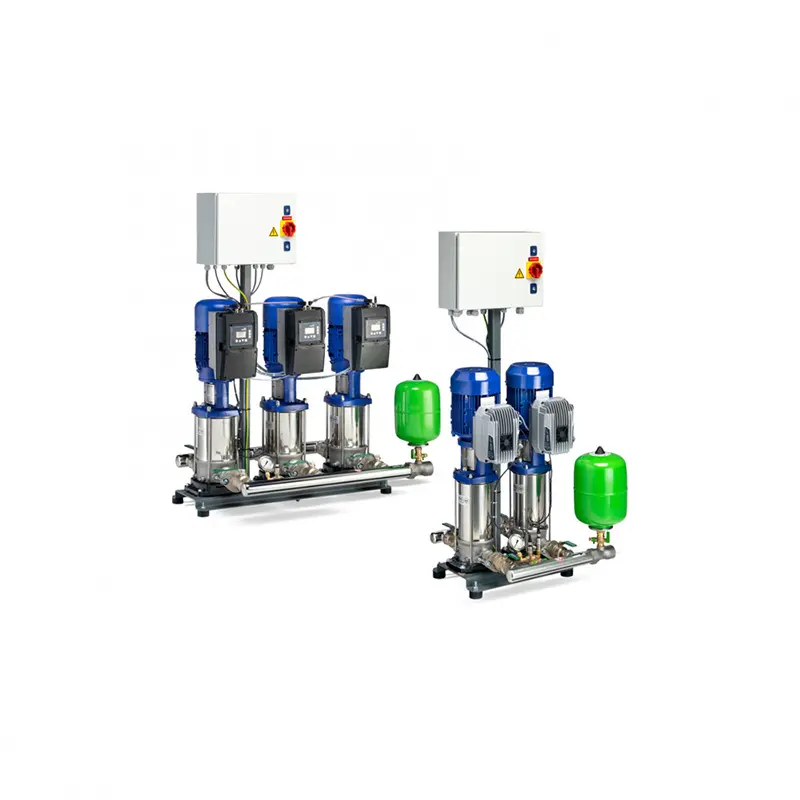

KSB Delta Basic
Fully automatic pressure booster system with two to three (MVP) / four (SVP) vertical high-pressure pumps in two variable speed versions. The frequency inverter operated MVP and SVP versions ensure variable speed control of each pump by motor-mounted frequency inverter for asynchronous motors (MVP) or PumpDrive variable speed system and KSB SuPremE motor (SVP), respectively, providing fully electronic control to ensure the required supply pressure. Equipped with a central fuse box.
Flow & Head
- Max Flow: 65.4m3/h
- Max Head: 134m

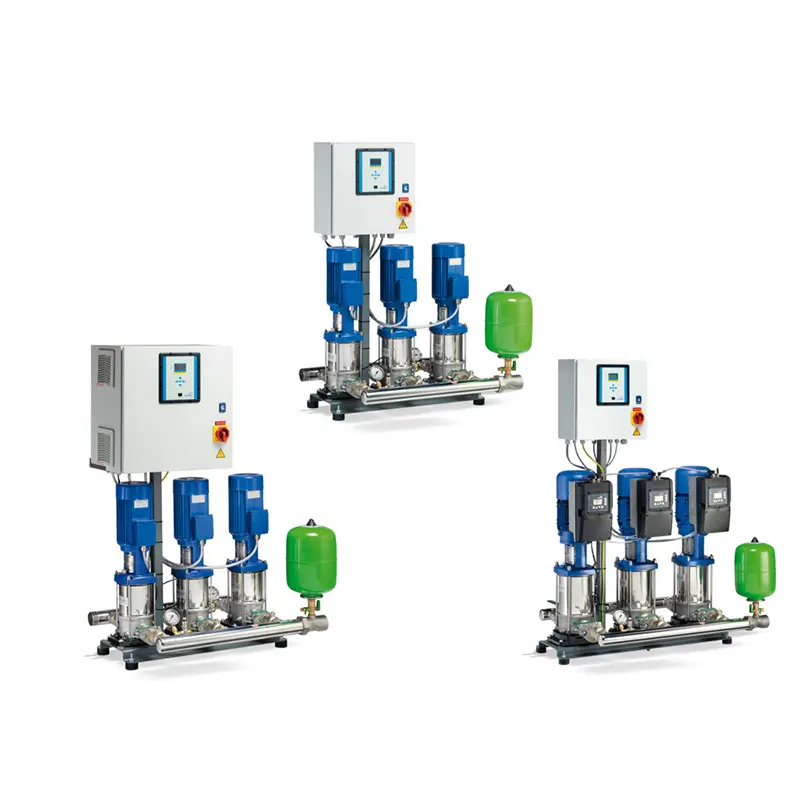

KSB Delta Primo
Fully automatic package pressure booster system with two or three (VC) / four (F/SVP) vertical high-pressure pumps; available in cascade-controlled and two variable speed versions. Cascade (F) control for ensuring the required supply pressure. The frequency inverter operated VC and SVP versions ensure variable speed control of each pump via cabinet-mounted frequency inverter (VC) or PumpDrive variable speed system and KSB SuPremE motor (SVP), respectively, providing fully electronic control to ensure the required supply pressure. Automated with BoosterControl.
Flow & Head
- Max Flow: 65.4m3/h
- Max Head: 134m
KSB Delta Macro
Fully automatic package pressure booster system with two to six vertical high-pressure pumps; available in cascade-controlled and two variable speed versions. Cascade control (F) for ensuring the required supply pressure. The VC and SVP versions ensure variable speed control of each pump by cabinet-mounted frequency inverter (VC) or motor-mounted PumpDrive variable speed system and KSB SuPremE motor (SVP), respectively, providing fully electronic control to ensure the required supply pressure. Automated with BoosterControl.
Flow & Head
- Max Flow: 960m3/h
- Max Head: 155m

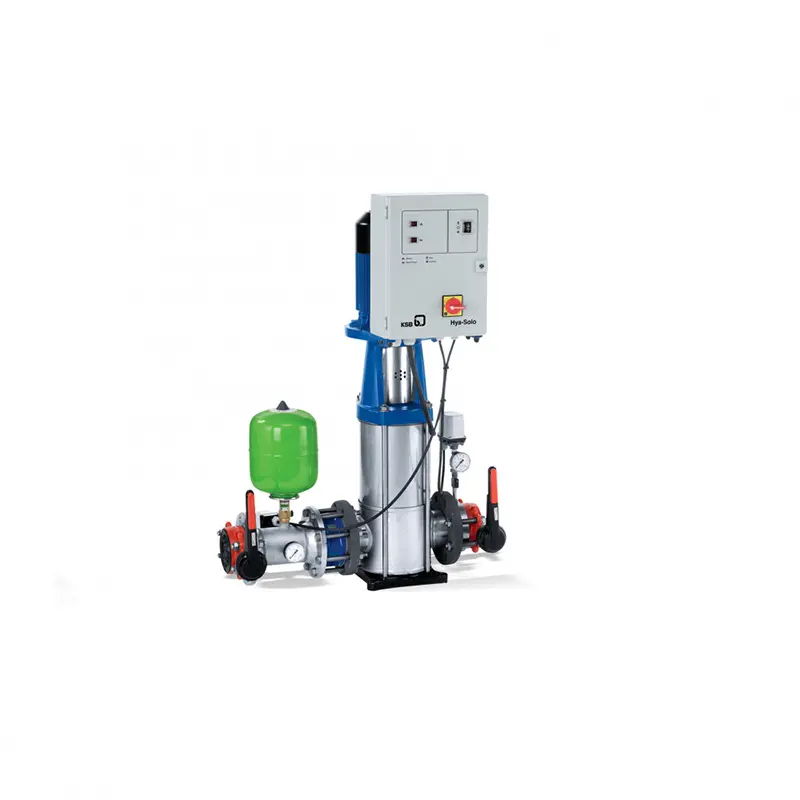

Hya Solo D
Fully Automatic package single-pump system with 8 litre membrane-type accumulator. The system is started and stopped as a function of pressure.
Flow & Head
- Max Flow: 110m3/h
- Max Head: 160m

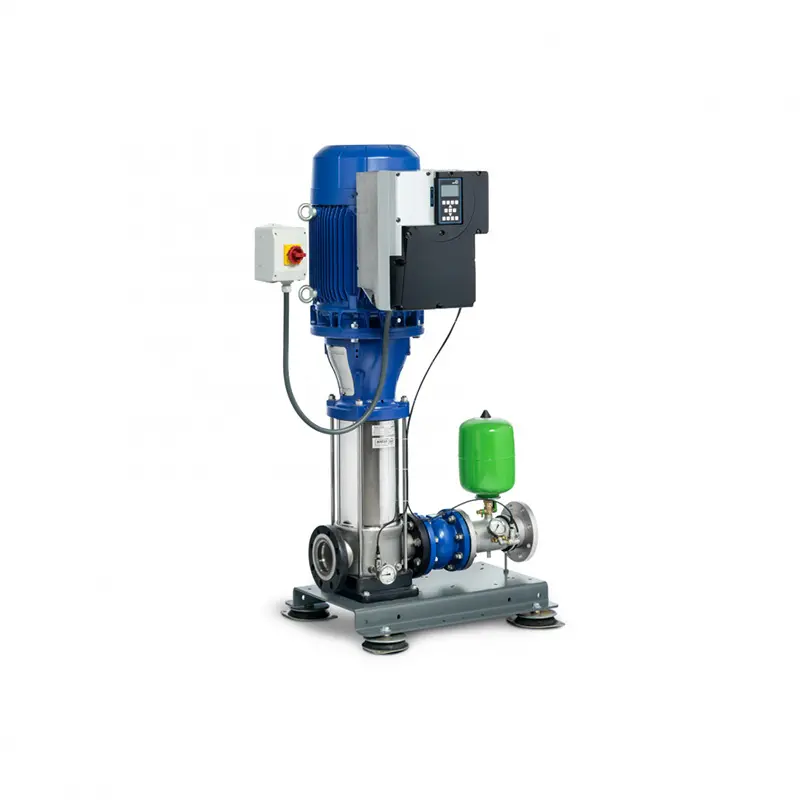

Hya Solo DSV
Fully automatic variable speed package single pump system with PumpDrive2/ PumpDrive 2 Eco. The system is started as a function of pressure and stopped as a function of flow.
Flow & Head
- Max Flow: 110m3/h
- Max Head: 160m

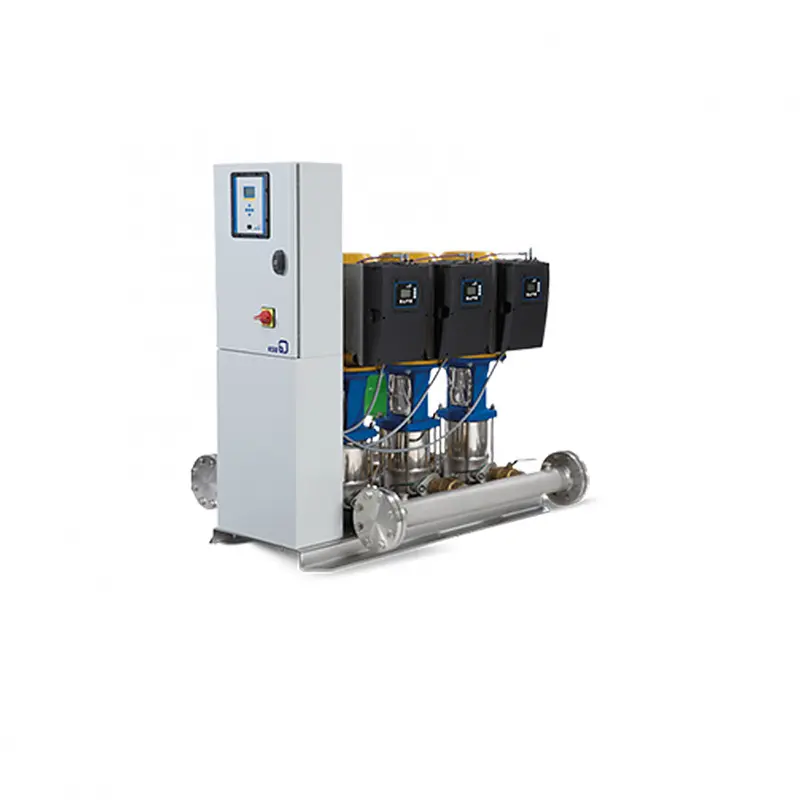

Hyamat SVP
Fully automatic package pressure booster system with 2 to 6 vertical high-pressure pumps continuously variable speed adjustment of all pumps by PumpDrive; for fully electronic control of the required supply pressure.
Flow & Head
- Max Flow: 660m3/h
- Max Head: 160m

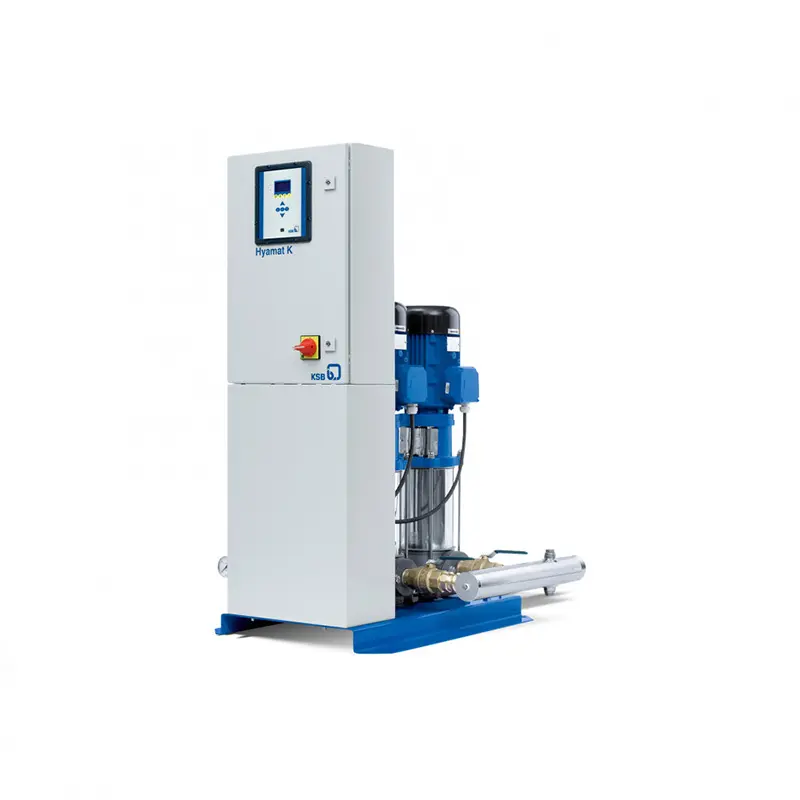

Hyamat K
Fully automatic package pressure booster system with 2 to 6 vertical high-pressure pumps and fully electronic control to ensure the required supply pressure, with volt-free changeover contact for general fault indication and broken wire detection (live-zero) of the connected sensors, design and function to DIN 1988. Automated with BoosterControl.
Flow & Head
- Max Flow: 450m3/h
- Max Head: 160m
Usually a booster set will pump cold water, although they can pump hot water, softened water, processed water or even grey water in the case of a rainwater harvesting system. The main purpose of a cold water booster pump set is to supply water to a building, commonly where water storage is required or mains water pressure is not sufficient to reach the top of the building or to meet the demand.
For example, in the case of a tower block, the mains will only provide half a bar of pressure which amounts to roughly five metres of height when pumped. In this case, the pressurisation unit will provide enough pressure for the liquid to reach all water points. Some buildings require water storage so that there is enough water to meet demand, and some can store up to a day’s worth of water. The same type of water storage is also used as a break in a water system, as some processes can cause contamination so this helps alleviate any risk.
Low water pressure is becoming an increasingly worrying issue for citizens around the world. There are three main reasons for this:
- A consistently growing demand for more water
- A requirement for constant pressure as standard
- Water Authorities only have to guarantee a pressure of 1 bar at a simultaneous flow of 9 litres/min
Hot and Cold Water Booster Pumps are the solution to low water pressure. By installing a pump system, you achieve a constant reliable water pressure, giving you and your users a quality experience.
KSB valves and pumps for water supply are up to any challenge
Thanks to its extensive product portfolio and many years of market experience, KSB can provide the right products for every requirement – from automatic domestic water supply systems and pressure booster systems to submersible pumps.
Water supply for building services, rainwater harvesting, irrigation and washing plants or the circulation of swimming pool water: KSB valves and pumps for water distribution meet the highest quality standards and are continually tested for their safety, reliability and durability. Thanks to wear-resistant materials and sophisticated design, you benefit from low repair and maintenance costs.
When dealing with drinking water, hygiene is the absolute priority: All KSB products consistently comply with special stipulations for drinking water protection and all international standards, approvals and testing regulations.
But functionality, reliability and durability depend on more than quality of individual products. Equally important is optimised service that ensures success from the outset: from commissioning and inspection to maintenance work and repair of pumps from any manufacturer – including the provision of spare parts. Our own service experts and specialists from regional service partners are there for you around the clock.
Learn more about water transport in municipal water supply.
From single-pump systems to large pressure booster systems incorporating multiple pumps – KSB has the right solution.
Your benefits
- Flexibility in planning due to a complete range of building services products
- Reliability through excellent product quality
- Minimisation of maintenance and repair costs due to high product quality
- Savings on energy costs thanks to process optimisation
- Comprehensive support in all project phases from KSB experts with extensive application knowledge
Let’s Talk Pressure, we understand that every facility has unique demands. speak with a system expert today and get a recommendation built around your environment.
