Thanks to the breadth and depth of the KSB pump product range, they are able to supply the right pumps for all applications in cooling/chiller water applications – whether for factory process, office blocks, railway stations or computer centres.
- High Volume Pumps Range
- 24 month warranity
- Savings on energy costs due to high-efficiency components
- Optimally specified pumps – Trimmed impellors
KSB Cilled Water Pumps Range

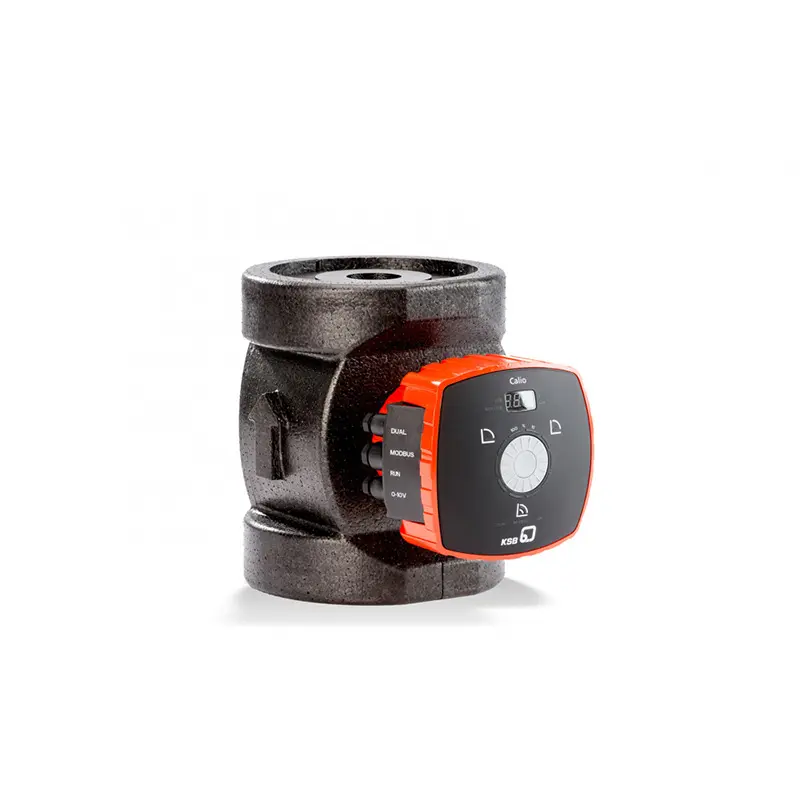

Calio
Maintenance-free high-efficiency flanged or screw-ended glandless pump with high-efficiency electric motor and continuously variable differential pressure control.
Flow & Head
- Max Flow: 51m3/h
- Max Head: 18m

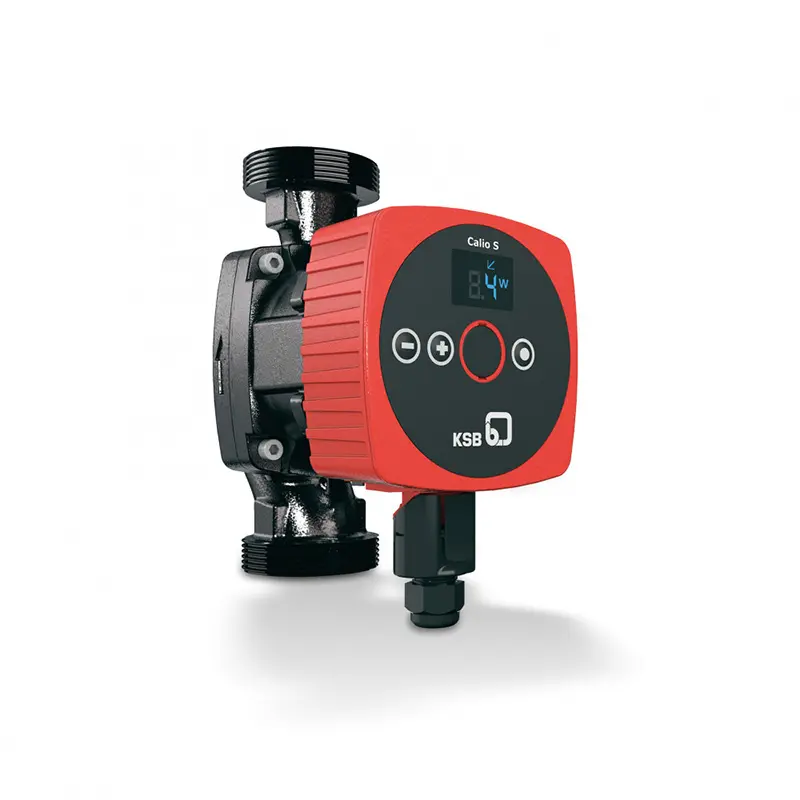

Calio S
Maintenance-free high-efficiency screw-ended glandless pump with high-efficiency electric motor and continuously variable differential pressure control.
Flow & Head
- Max Flow: 3.5m3/h
- Max Head: 6m

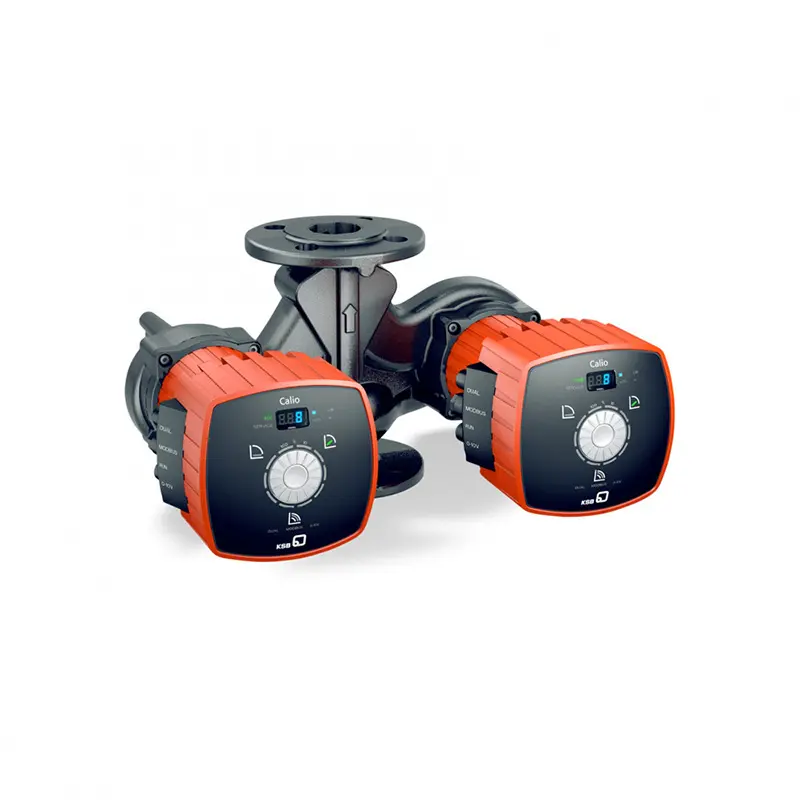

Calio Z
Maintenance-free high-efficiency flanged or screw-ended glandless pump in twin pump design with high-efficiency electric motor and continuously variable differential pressure control.
Flow & Head
- Max Flow: 52m3/h
- Max Head: 18m

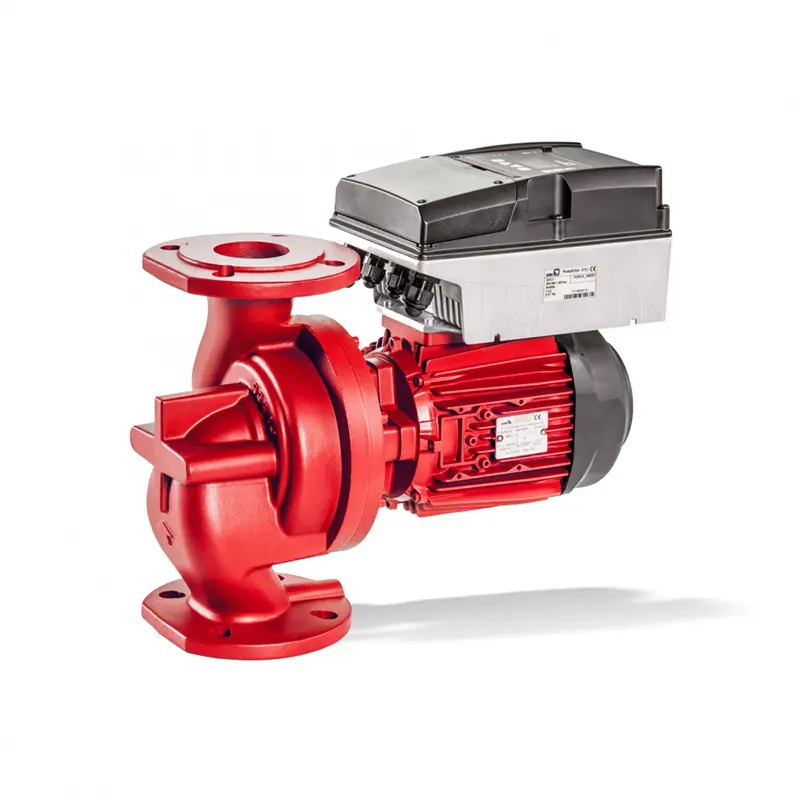

Etaline L
Single-stage close-coupled in-line volute casing pump, with PumpDrive variable speed system and common motor/pump shaft.
Flow & Head
- Max Flow: 95m3/h
- Max Head: 21m

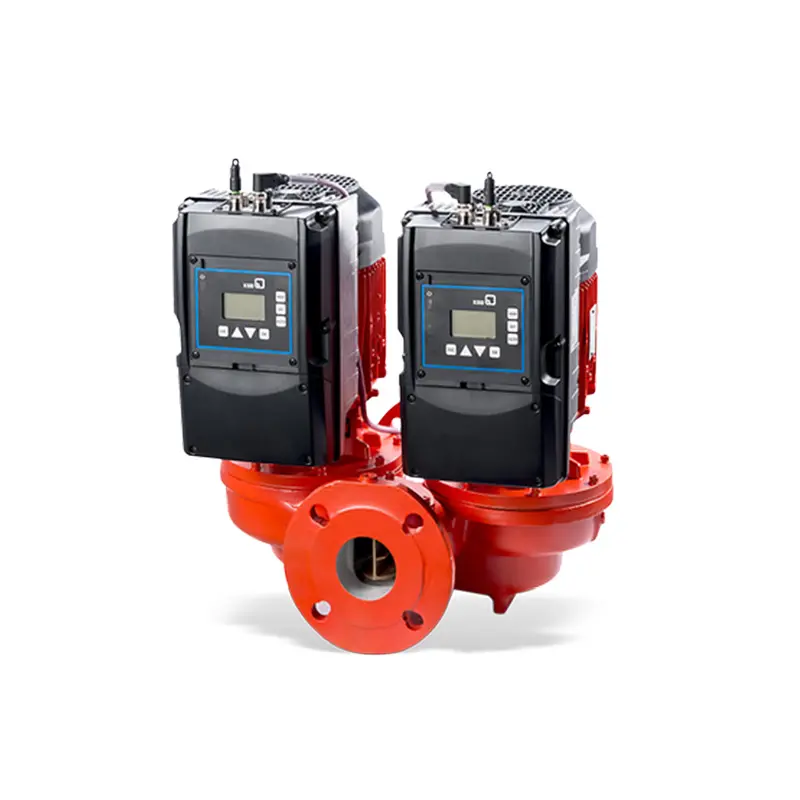

Etaline DL
Single-stage close-coupled in-line volute casing pump as twin pump, with PumpDrive variable speed system and common motor/pump shaft.
Flow & Head
- Max Flow: 150m3/h
- Max Head: 21m

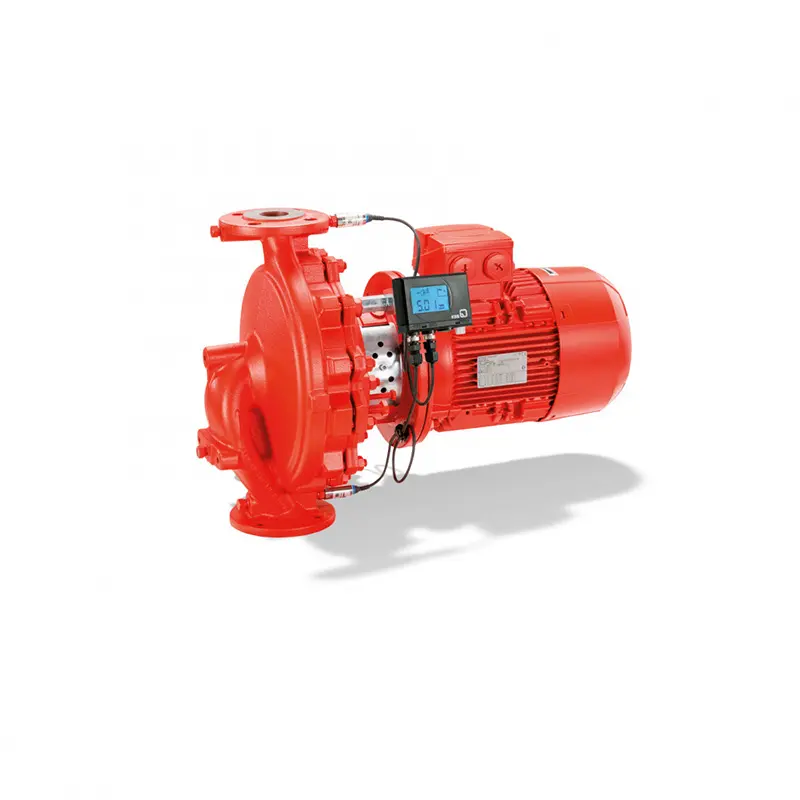

Etaline
Single-stage volute casing pump in in-line design, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; pump shaft and motor shaft are rigidly connected. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Flow & Head
- Max Flow: 850m3/h
- Max Head: 140m

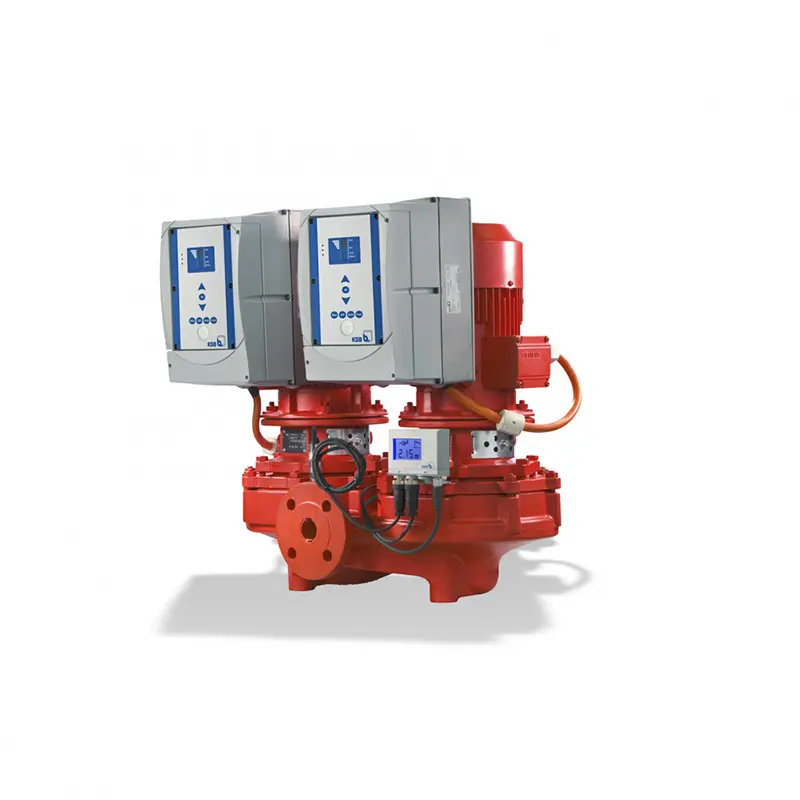

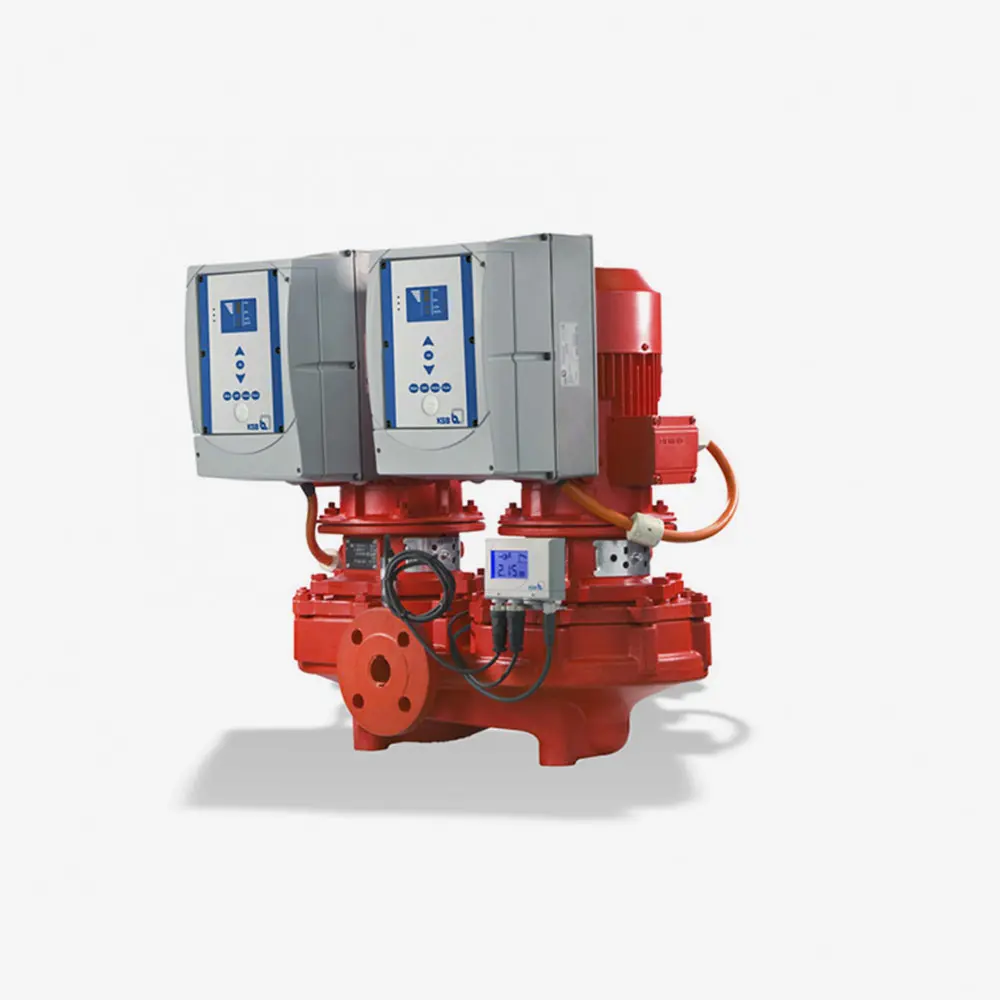

Etaline Z
Single-stage volute casing pump in in-line design as twin pump, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; pump shaft and motor shaft are rigidly connected. An M12 module (accessory) enables redundant operation of Etaline Z without the need for a higher-level controller. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2: 2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Flow & Head
- Max Flow: 1095m3/h
- Max Head: 38m

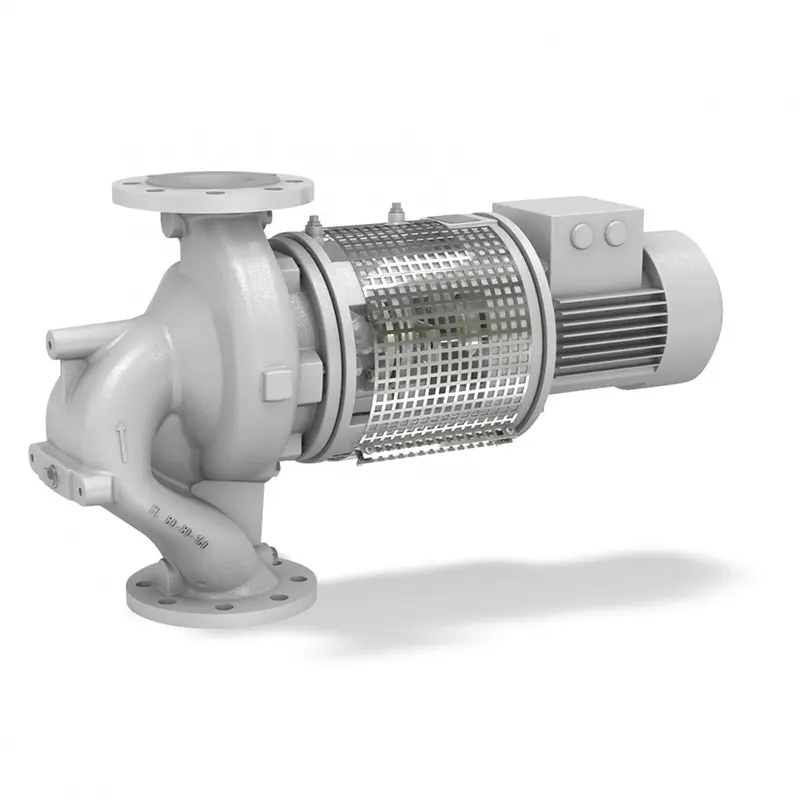

Etaline STY
Single-stage volute casing pump in in-line design, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; pump shaft and motor shaft are rigidly connected. ATEX-compliant version available.
Flow & Head
- Max Flow: 316m3/h
- Max Head: 101m

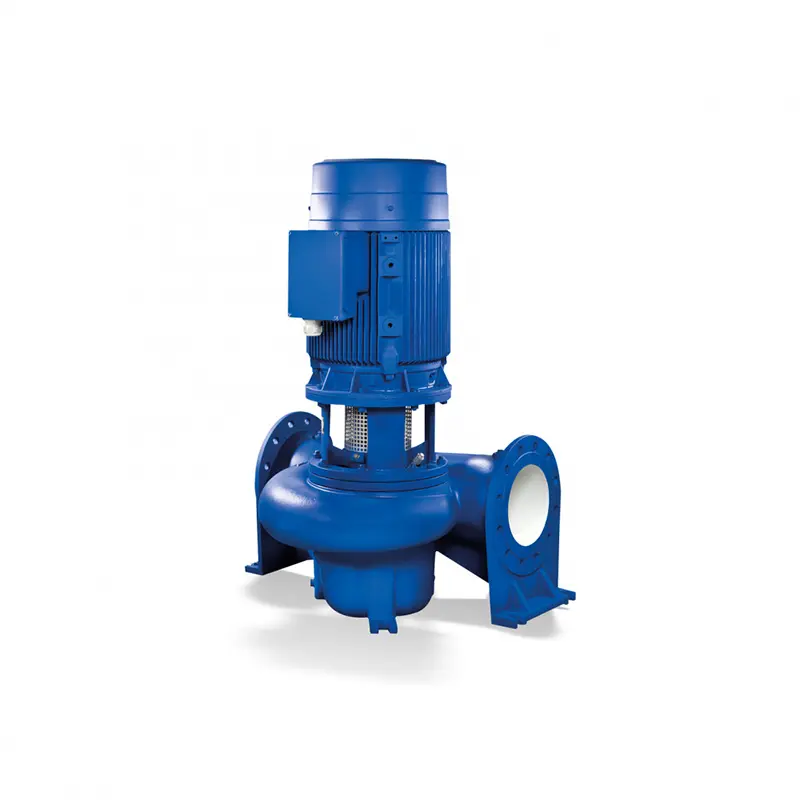

Etaline-R
Vertical close-coupled in-line pump with volute casing and magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system.
Flow & Head
- Max Flow: 753m3/h
- Max Head: 97m
Etabloc
Single-stage close-coupled volute casing pump, with ratings to EN 733, with replaceable shaft sleeve and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Flow & Head
- Max Flow: 740m3/h
- Max Head: 160m
Etanorm
Horizontal volute casing pump, single-stage, with ratings and main dimensions to EN 733, long-coupled, back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Flow & Head
- Max Flow: 740m3/h
- Max Head: 160m
Etanorm R
Horizontal long-coupled, single-stage (two-stage for pump size 125-500) volute casing pump in back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; ATEX-compliant version available.
Flow & Head
- Max Flow: 2285m3/h
- Max Head: 101m
Chilled water or Chiller pumps, are one of the most widely used pump and are simple, effective and reliable. In a standard set up water enters the pump via a horizontal pipe, goes through the impeller and – using centrifugal force –is flung out a vertical discharge. These can be found with glanded or glandless motors, otherwise knowns as canned motors. Smaller canned inline pumps typically come as standard with motor mounted inverter drives Inline pumps are normally available in single or twin head, which can be configured to automatically swop duties.
These pumps are available in stainless steel for applications where chemical is present.
Chiller pumps are used to overcome the resistance in the pipework and valves or to lift the water out of the hot or cold well and push through the chiller unit, cooling tower or system for cooling Old belt drive and fixed speed systems can be easily upgraded to new energy efficient systems with payback times from 6 to 36 months, depending on application. In addition to saving energy, this can be a cost effective way of upgrading your system. Let your energy savings pay for your upgrade.
- Minimal maintenance needed
- Available single or twin head
- Bronze and stainless steel impellers
- Can be inverter driven for energy savings
- Energy efficient
