Above ground pump stations, also known as lift stations, are compact package pump stations used where digging for a conventional pump station is not feasible.
- Range to suit domestic to heavy commercial
- Single & Dual applications
- Suitable for highly contaminated, fibre containing fluid in industrial applications
- Pre-assembled for fast easy installation
KSB Surface Pump Stations Range
Mini-Compacta
Floodable single-pump sewage lifting unit or dual pump sewage lifting unit for automatic disposal of domestic waste water and faeces in building sections below the flood level.
Flow & Head
- Max Flow: 36m3/h
- Max Head: 25m

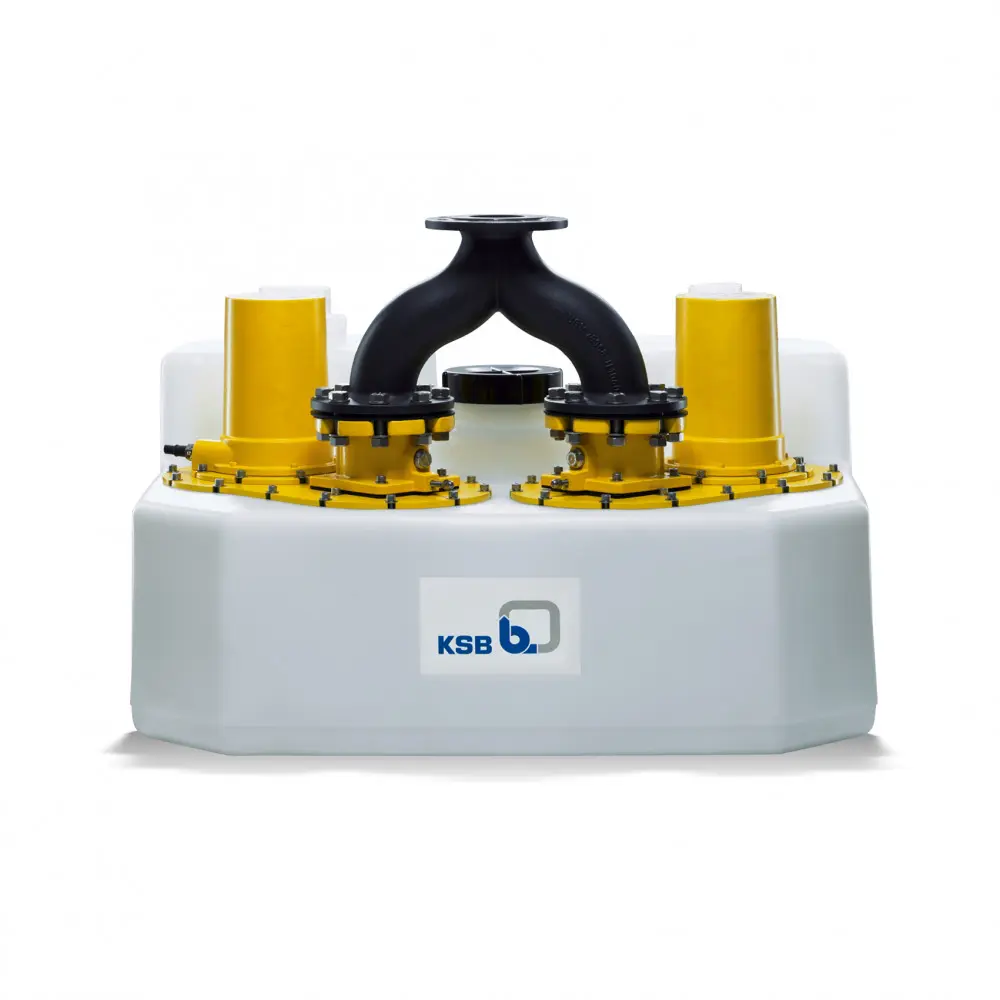

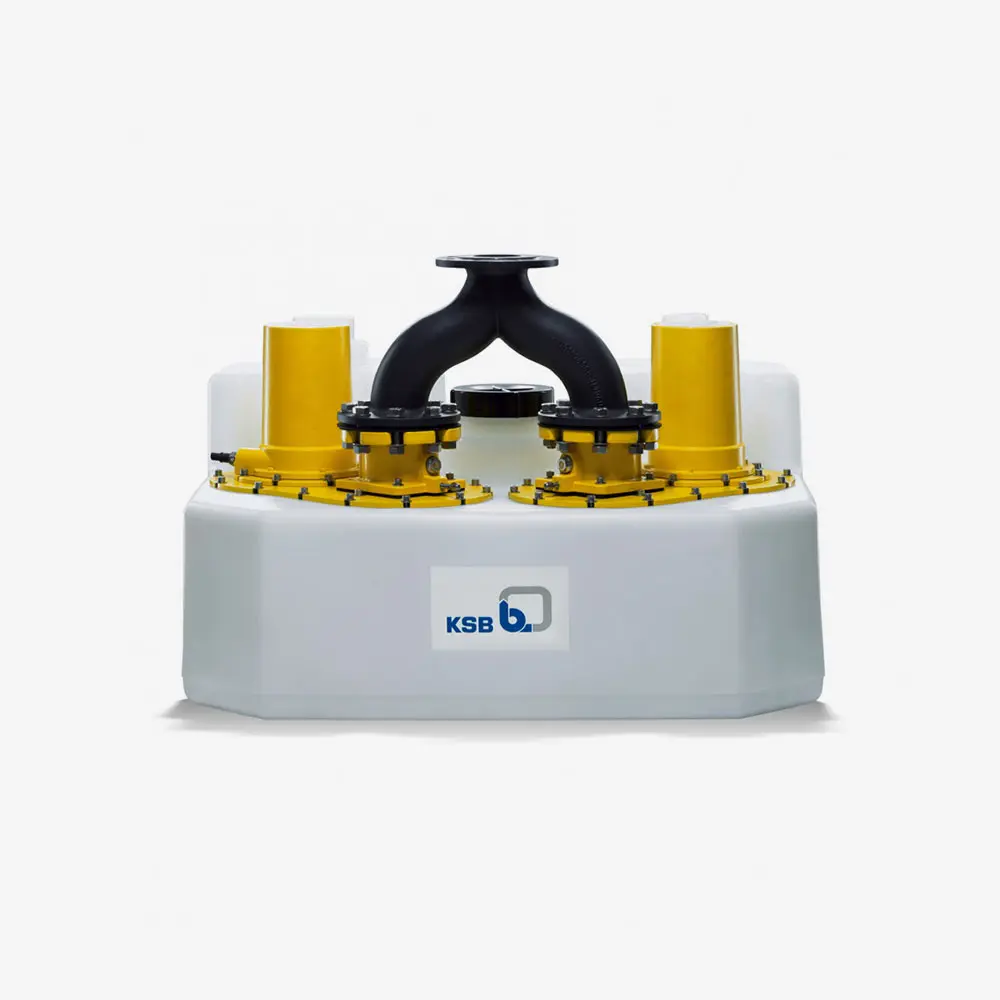

Compacta
Floodable single-pump sewage lifting unit or dual pump sewage lifting unit for automatic disposal of domestic waste water and faeces in building sections below the flood level.
Flow & Head
- Max Flow: 140m3/h
- Max Head: 24.5m

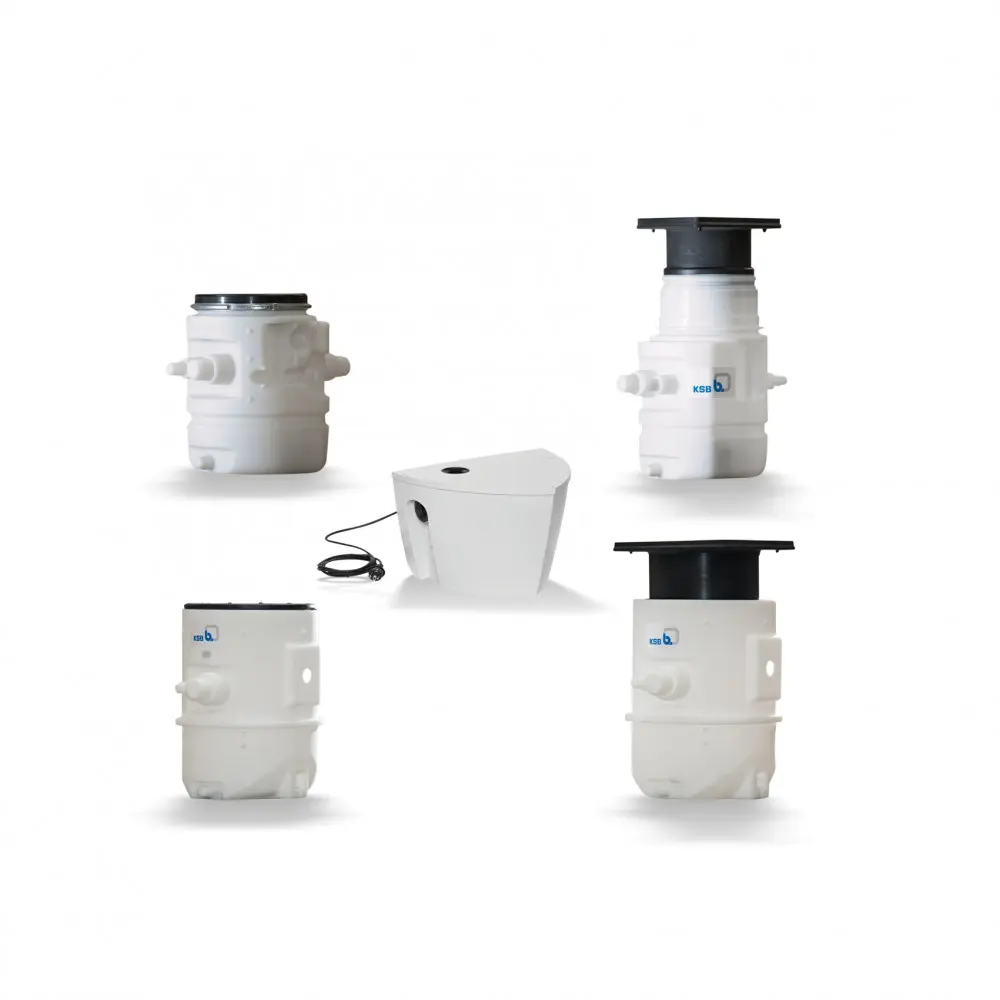

Ama-Drainer-Box
Stable above-floor plastic collecting tank or impact-resistant underfloor plastic collecting tank, with floor drain and odour trap, both with Ama-Drainer submersible motor pump starting and stopping automatically and swing check valve.
Flow & Head
- Max Flow: 46m3/h
- Max Head: 24m

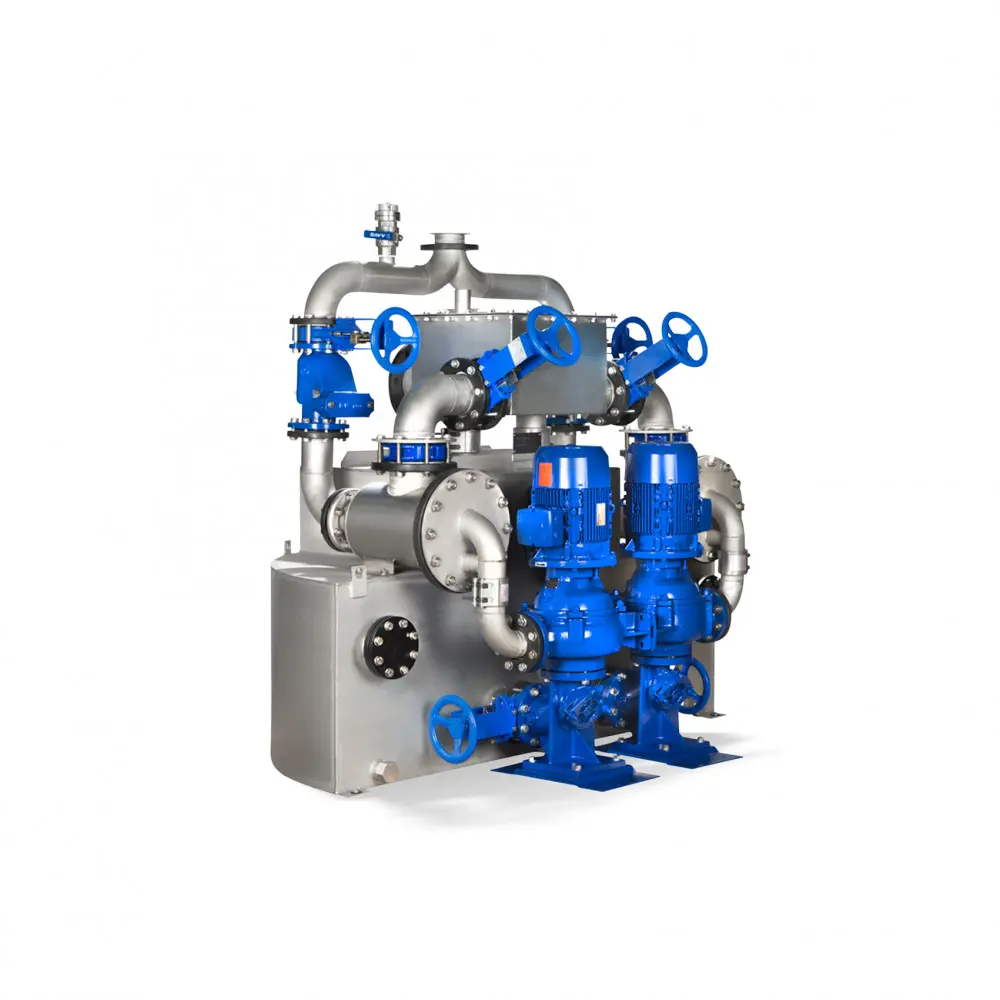

Ama-DS
Waste water pump station with solids separation system. Indirect hydraulic transport of waste water, solids separators arranged upstream of the pumps, for maximum economic efficiency, operating reliability and ease of servicing.
Flow & Head
- Max Flow: 200m3/h
- Max Head: 23m
Above ground pump stations, also known as lift stations, are compact package pump stations, where digging for a conventional pump station is not feasible or viable, or perhaps not a cost-effective option. These units are suitable for both domestic and commercial applications.
These units come fully assembled, gas-tight and water-tight, with varying size tanks, pumps and control equipment all fitted as standard to meet your sewage, storm or surface water drainage requirements.
Systems are specifically designed to be compact with highly durable and robust tanks. This enables them to be installed into basements and tight spaces, making waste removal viable. Both single and twin pump systems are available with a number of different discharge sizes, enabling easy installation. Each system comes with integrated level control and a control panel to suit your requirements.
- Automatic response to changed operating conditions.
- Filling level permanently monitored by a float sensor.
- Maximum system safety due to level-dependent control unit.
- Straightforward, time-saving installation.
- Range of vertical and horizontal connection options.
- Reliable operation.
- Integrated swing check valve and mains-independent alert.
KSB ensures smooth processes thanks to its many years of experience in waste water technology. Whether it is waste water transport, waste water treatment, waste water disposal or flood control, for domestic, municipal or industrial waste water, KSB has a solution. Their pumps are used in sewage treatment plants, industrial waste water treatment, waste water lifting units, sludge dewatering, municipal drainage and as part of a waste water pump station.
