These are especially suited for pumping sludge, pulp and wastewater with solids included in the water. This pump can be used for many different applications such as wastewater treatment plans or even abattoirs.
- Available with knife system
- Available with explosion proof motor
- Horizontal and vertical mountings
- Motors ranging from 0.55 to 30.0 kW

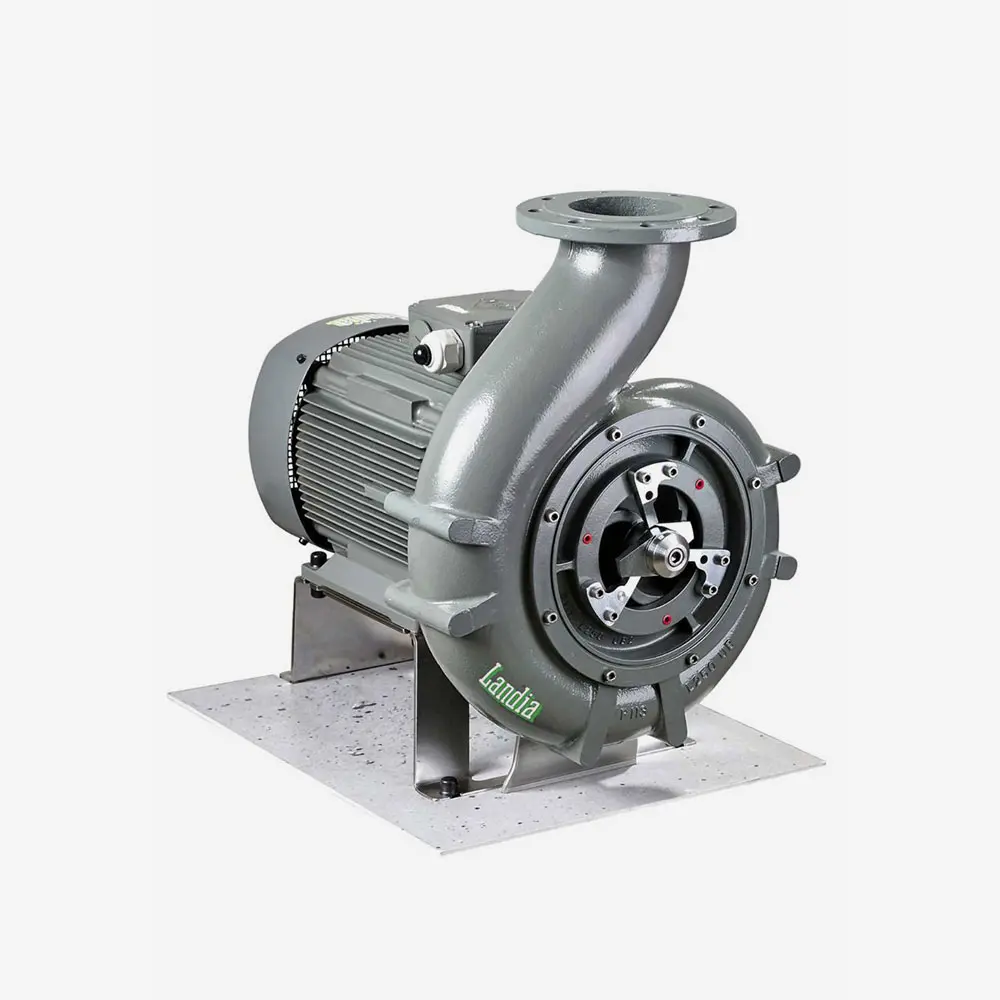

MPTK-I Chopper Pump
MPTK-I 50
Motor Power (kW)
- 0.75
Flow & Head
- Max Flow: 0.75
- Max Head: 8
Current (3x400V amp)
- 2.1
Dimensions (mm)
- 248x294x360
Weight (kg)
- 25
MPTK-I 65
Motor Power (kW)
- 1.1
Flow & Head
- Max Flow: 75
- Max Head: 11
Current (3x400V amp)
- 2.6
Dimensions (mm)
- 371x320x465
Weight (kg)
- 45
MPTK-I 65
Motor Power (kW)
- 1.5
Flow & Head
- Max Flow: 75
- Max Head: 11
Current (3x400V amp)
- 3.4
Dimensions (mm)
- 371x320x490
Weight (kg)
- 50
MPTK-I 65
Motor Power (kW)
- 2.2
Flow & Head
- Max Flow: 75
- Max Head: 11
Current (3x400V amp)
- 4.9
Dimensions (mm)
- 371x320x495
Weight (kg)
- 55
MPTK-I 80
Motor Power (kW)
- 3
Flow & Head
- Max Flow: 145
- Max Head: 15
Current (3x400V amp)
- 6.7
Dimensions (mm)
- 432x369x575
Weight (kg)
- 80
MPTK-I 80
Motor Power (kW)
- 4
Flow & Head
- Max Flow: 145
- Max Head: 15
Current (3x400V amp)
- 8.8
Dimensions (mm)
- 432x369x610
Weight (kg)
- 85
MPTK-I 80
Motor Power (kW)
- 5.5
Flow & Head
- Max Flow: 145
- Max Head: 15
Current (3x400V amp)
- 10.5
Dimensions (mm)
- 432x369x635
Weight (kg)
- 100
MPTK-I 105
Motor Power (kW)
- 7.5
Flow & Head
- Max Flow: 325
- Max Head: 22
Current (3x400V amp)
- 15
Dimensions (mm)
- 534x457x670
Weight (kg)
- 140
MPTK-I 105
Motor Power (kW)
- 11
Flow & Head
- Max Flow: 325
- Max Head: 22
Current (3x400V amp)
- 21.5
Dimensions (mm)
- 534x475x720
Weight (kg)
- 160
MPTK-I 105
Motor Power (kW)
- 15
Flow & Head
- Max Flow: 325
- Max Head: 22
Current (3x400V amp)
- 28.5
Dimensions (mm)
- 534x475x730
Weight (kg)
- 200
MPTK-I 105
Motor Power (kW)
- 18.5
Flow & Head
- Max Flow: 325
- Max Head: 22
Current (3x400V amp)
- 34.5
Dimensions (mm)
- 534x475x730
Weight (kg)
- 210
MPTK-I 150
Motor Power (kW)
- MPTK-I 150
Flow & Head
- Max Flow: 475
- Max Head: 30
Current (3x400V amp)
- 35
Dimensions (mm)
- 740x580x775
Weight (kg)
- 275
MPTK-I 150
Motor Power (kW)
- 22
Flow & Head
- Max Flow: 475
- Max Head: 30
Current (3x400V amp)
- 42
Dimensions (mm)
- 740x580x870
Weight (kg)
- 315
MPTK-I 150
Motor Power (kW)
- 30
Flow & Head
- Max Flow: 475
- Max Head: 30
Current (3x400V amp)
- 56
Dimensions (mm)
- 740x580x870
Weight (kg)
- 345
These are especially suited for pumping sludge, pulp and wastewater with solids included in the water. This pump can be used for many different applications such as wastewater treatment plans or even abattoirs.
These centrifugal chopper pumps are are made with efficient motors and are fitted with a chopper knife system that helps the pump to reduce the size of any solids that may attempt to pass through the pump. This chopper system combined with the high efficiency motor reduces the costs of running the pump.
There is a large variety of sizes and motors within this pump range with pumps motors ranging from 0.55kW up to 30kW. With this range of pumps comes a variety of flows and heads from a 50m3/h up to a 475m3/h flow rate.
These pumps can be used in a variety of situations from wastewater treatment plants, abattoirs to working in the fish industry.
