This stainless-steel pump is especially suited for pumping wastewater, sludge or even pulp. With the knife system attached this pump would reduce the risk of clogging and would increase productivity. This pump is ideal for pumping difficult mediums.
- Acid prof casing made from stainless steel
- Specially designed impeller for difficult mediums
- Available with knife system
- Horizontal or vertical mounting

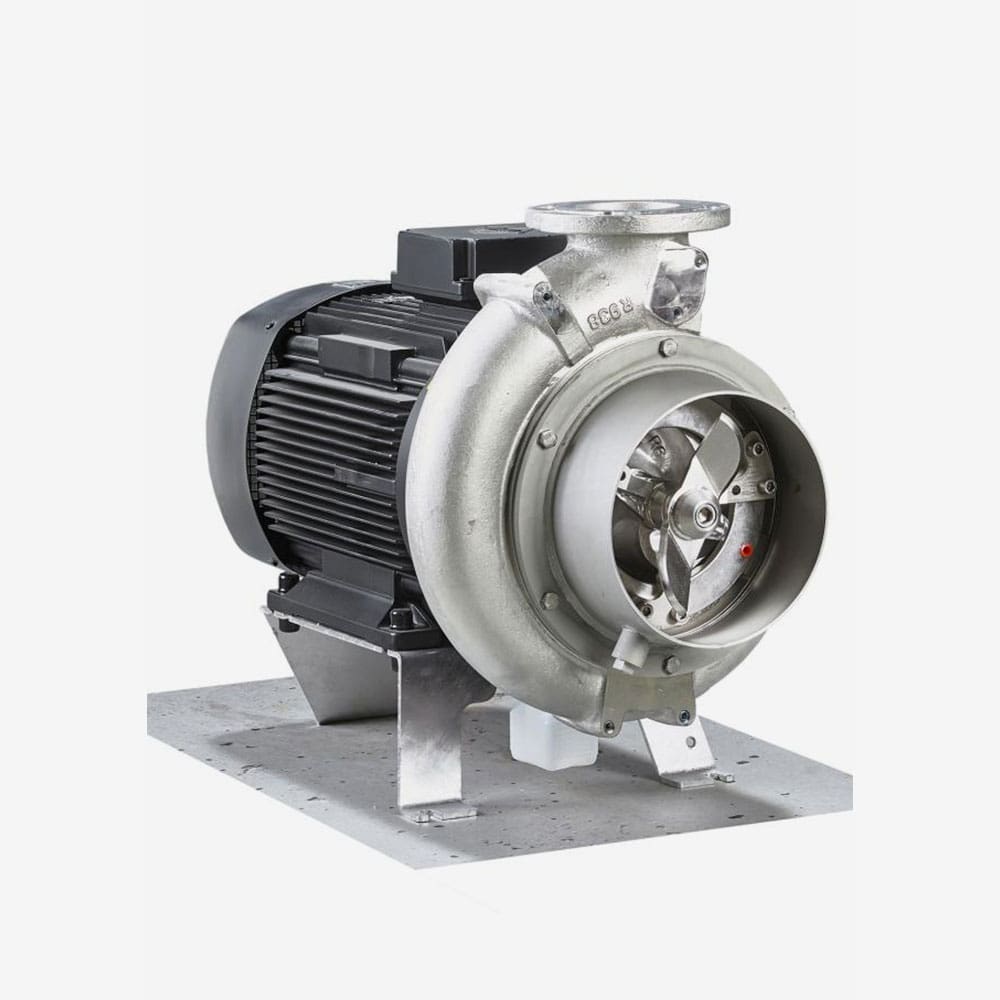

MPTKR-I Chopper Pump
MPTKR-I 80
Motor Power (kW)
- 3
Flow & Head
- Max Flow: 145
- Max Head: 15
Current (3x400V amp)
- 6.8
Dimensions (mm)
- 432x369x575
Weight (kg)
- 80
PTKR-I 80
Motor Power (kW)
- 4
Flow & Head
- Max Flow: 145
- Max Head: 15
Consumption (3x400V amp)
- 8.8
Dimensions (mm)
- 432x369x610
Weight (kg)
- 85
MPTKR-I 80
Motor Power (kW)
- 5.5
Flow & Head
- Max Flow: 145
- Max Head: 15
Consumption (3x400V amp)
- 10.5
Dimensions (mm)
- 432x369x635
Weight (kg)
- 100
MPTKR-I 105
Motor Power (kW)
- 7.5
Flow & Head
- Max Flow: 340
- Max Head: 23
Consumption (3x400V amp)
- 15.0
Dimensions (mm)
- 534x457x670
Weight (kg)
- 140
MPTKR-I 105
Motor Power (kW)
- 11
Flow & Head
- Max Flow: 340
- Max Head: 23
Consumption (3x400V amp)
- 21.5
Dimensions (mm)
- 534x457x720
Weight (kg)
160
MPTKR-I 105
Motor Power (kW)
- 15
Flow & Head
- Max Flow: 340
- Max Head: 23
Consumption (3x400V amp)
- 28.5
Dimensions (mm)
- 534x457x730
Weight (kg)
- 200
MPTKR-I 105
Motor Power (kW)
- 18.5
Flow & Head
- Max Flow: 340
- Max Head: 23
Consumption (3x400V amp)
- 35
Dimensions (mm)
- 534x457x730
Weight (kg)
- 210
This stainless-steel pump is especially suited for pumping wastewater, sludge or even pulp. With the knife system attached this pump would reduce the risk of clogging and would increase productivity. This pump is ideal for pumping difficult mediums.
These centrifugal chopper pumps are fitted with efficient motors and come with a acid-proof steel option where the pump is therefore ideal for pumping aggressive liquids.
All these chopper pumps can be equipped with a knife system at the inlet of the pump, to ensure the pump is problem free and doesn’t get blocked up with unnessercery items such as rags. This combined with the high efficiency motor reduces the costs of running the pump.
