Lowara Centrifugal Pumps Range

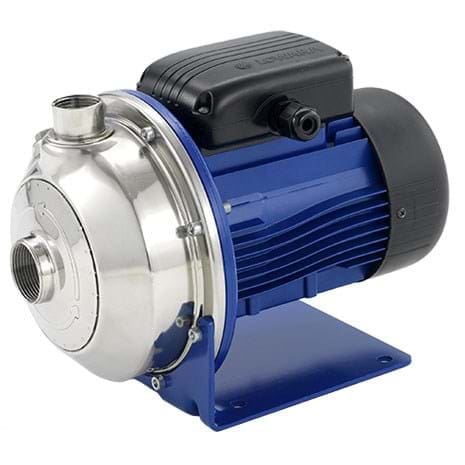

CEA
The Lowara CEA Wide range of stainless steel pumps for domestic and industrial applications.
Flow & Head
- Max Flow: 31m³/h
- Max Head: 30 m Liquid temperature from -10°C to +85°C
CO
These pumps combine the advantages of an open impeller with those of the AISI 316 stainless steel construction, which is particularly suited for handling moderately aggressive liquids with suspended solids.
Flow & Head
- Max Flow: 54m³/h
- Max Head: 24 m Liquid temperature from -10°C to +110°C
CHO
The Lowara SHO is a centrifugal pump with an open and recessed impeller design allowing free passage for solids. Maximum free passage is 40 mm. The main application is different types of washing machines and washing equipment where the water can contain solids and be slightly aggressive.
Flow & Head
- Max Flow: 56m³/h
- Max Head: 50 m Liquid temperature from -10°C to +120°C
e-SH
The Lowara e-SH series is a single impeller centrifugal pump made in AISI 316 stainless steel, making it the right pump for moving water and aggressive liquids in a vast number of applications where high chemical resistance is needed.
Flow & Head
- Max Flow: 240m³/h
- Max Head: 110 m Liquid temperature from -20°C to +120°C, Extended temperature versions from -30°C to + 120°C

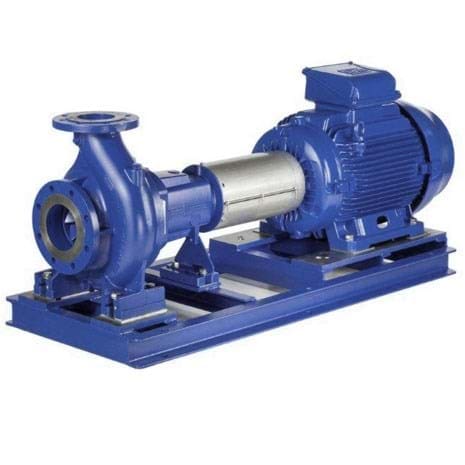

e-NSC
By combining high efficiency with high flexibility regarding installation, material options and temperature, the new Lowara e-NSC series is the natural choice for water transport, hydronic heating and chiller systems, fire protection systems and a vast number of industrial applications.
Flow & Head
- Max Flow: 1800m³/h
- Max Head: 160 m Liquid temperature from -25°C to +120°C
Volgel series LSB
Single stage end suction pump in close coupled (block) design, based on the hydraulics acc. to ISO 2858, with direct mounted IEC motor, design B5.
Flow & Head
- Max Flow: 450m³/h
- Max Head: 150 m Liquid temperature from -40°C to +140°C
Volgel series LSN
Horizontal single stage volute casing pump, designed acc. to the international standards ISO 2858 /EN 22858 and ISO 5199/EN 25199
Flow & Head
- Max Flow: 450m³/h
- Max Head: 150 m Liquid temperature from -40°C to +180°C
Volgel series LS, LC
Horizontal single stage endsuction pump with closed impeller and oil lubricated bearing frame. Process design, back pull out for easy maintenance. Disassembly of impeller and bearing frame without dismantling of the pump casing and motor possible (spacer type coupling required). Suction branch axial, discharge radial upwards (optional horizontal possible). Drive by electric motor and flexible coupling arranged on common base plate.
Flow & Head
- Max Flow: 4600m³/h
- Max Head: 100 m Liquid temperature max +140°C
End suction pumps are the most widely used pump in the world and are simple, effective and reliable. In a standard set up water enters the pump via a horizontal pipe, goes through the impeller and – using centrifugal force – is flung out a vertical discharge.
End Suction Pumps are generally suited to transfer and high flow applications. Pressure can be limited as they typically only have one impeller. Multistages are available to overcome this. The most common uses include water, sewage, agriculture, petroleum and petrochemical pumping. Centrifugal pumps are often chosen for their high flow rate capabilities, abrasive solution compatibility, mixing potential, as well as their relatively simple engineering.
Typical use for these pumps are:
- Recirculation pumps
- Cooling water pumps
- Water transfer pumps
- Heating pumps
- Fire fighting
- General industrial pumps
- Process pumps
- High temperature applications up to 350 degrees C
