Lowara – Multistage Pumps

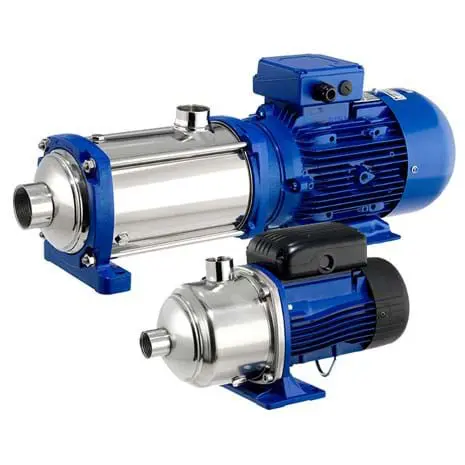

e-HM

The e-HM series is a modern, robust designed pump State-of-the-art hydraulics with best-in class efficiency combined with IE3 motors mean the lowest possible operating costs. Thick sheet metal casing, high-quality bearings and stainless steel guarantees a long service life. High-efficiency hydraulics, motor and thick sheet metal pump body keep the noise level to a minimum.

Flow & Head

• Max Flow: 29m³/h
• Max Head: 160m Liquid temperature from -10°C to +110°C

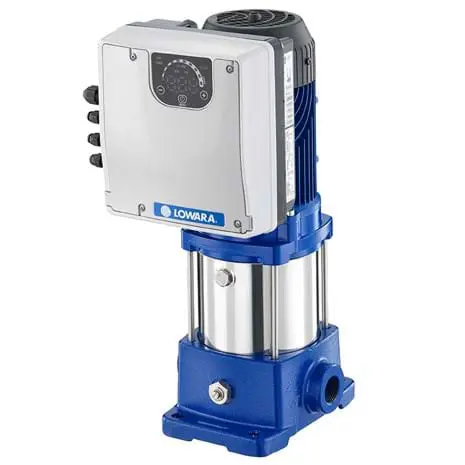

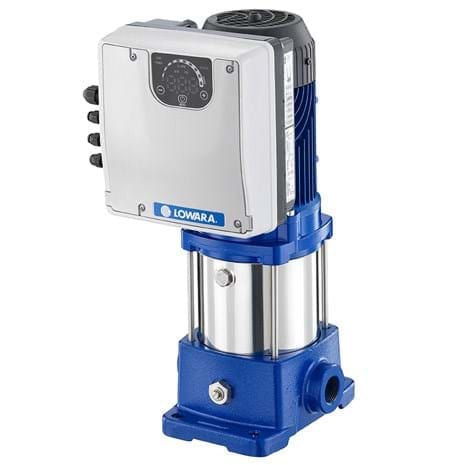

VM Close Coupled Vertical multistage pump

The VM series is a modern, robust designed pump offering reliable water supply for most buildings; from family houses up to 10 floor apartment buildings. The Pump is made with State-of-the-art hydraulics with best-in class efficiency combined with IE3 motors meaning the pump has the lowest possible operating costs. The pump is made with thick sheet metal casing, high quality bearings and stainless steel which guarantees a long service life.

Flow & Head

• Max Flow: 14 m³/h
• Max Head: 99m Liquid temperature from -15°C to +45°C

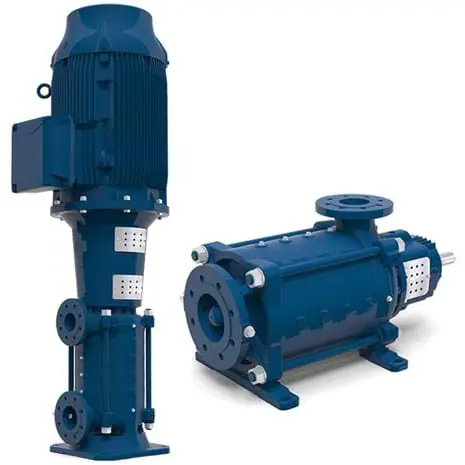

e-MP

A robust and reliable pumping system for virtually any high pressure application. The Lowara e-MP multistage ring section pump combines Xylem’s century of experience, knowhow and expertise to create a powerful and efficient solution for customers in industry, public utilities, agriculture and building services. Designed to be configured a multitude of ways, the Lowara e-MP has applications limited only by your imagination.

Flow & Head

• Max Flow: 850 m³/h
• Max Head: 950m Liquid temperature from -10°C to +140°C

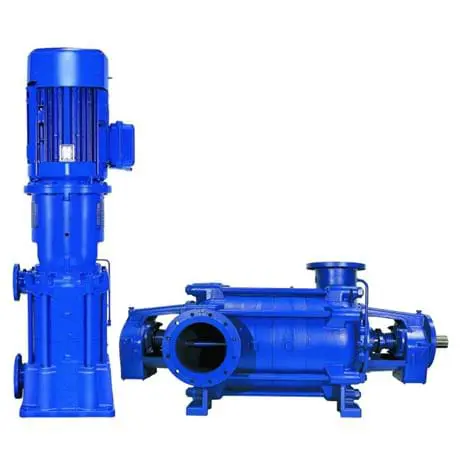

Vogel series P and PVa

The Vogel Multistage Pump comes in two options, the P – which is a horizontal multistage pump with bearings on both ends. And the other option is the PVa – which is a vertical multistage pump.

Flow & Head

• Max Flow: 1800 m³/h
• Max Head: 300m Liquid temperature up to +140°C

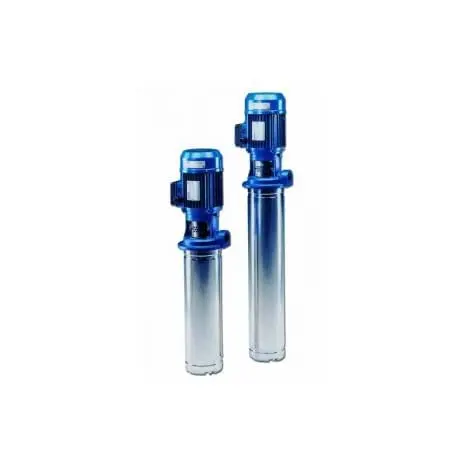

SVI

Versatile range of stainless steel multistage pumps for tank mounting.

Flow & Head

• Max Flow: 120m³/h
• Max Head: 240m Liquid temperature from -10°C to +90°C

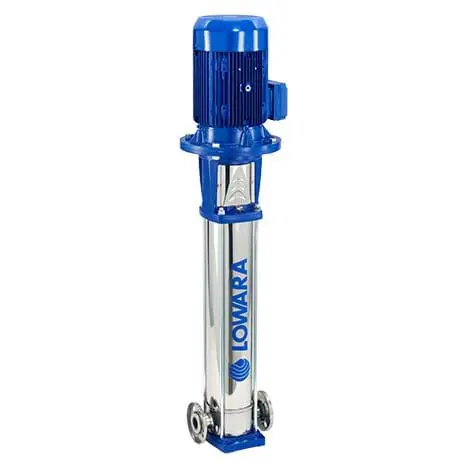

e-SV

The Lowara e-SV vertical multistage pump is a highly reliable and technologically advanced multipurpose pump. It’s capable of satisfying the needs of a wide variety of users and many different construction designs are available. The e-SV range feature models in eleven sizes with 1-3-5-10-15-22-33-46-66-92-125 m³/h nominal capacities. All pumps ≥ 1.5kW are equipped with IE3 standard motors.

Flow & Head

• Max Flow: 160m³/h
• Max Head: 330m Liquid temperature from -10°C to +120°C
