The Lowara range includes a variety of different pumps including Dewatering Pumps, Borehole Pumps and Waste Movement Pumps. These designs vary from small to large designs and can be used in many different applications.
- Non-Clogging Design
- Grinder Pump Options
- Compact and Reliable Design
- Cast Iron and Stainless Steel Options Availible
Lowara Submersible Pumps Range

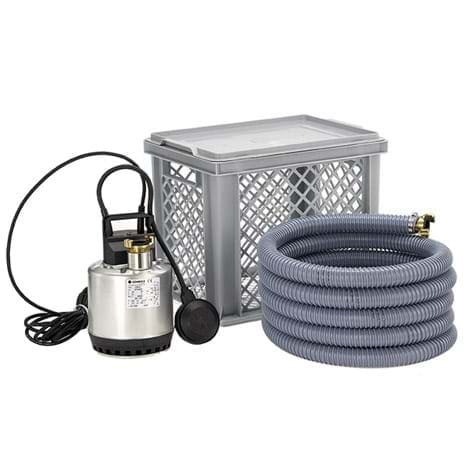

SOS Kit Submersible Dewatering Unit
The Lowara SOS Kit provides a quick and easy solution in case of flooded basements, garages and residential buildings. The kit is composed of a stainless steel Lowara DOC3 submersible drainage pump and a 6 meters long flexible hose complete with quick coupling, all inside a plastic box that can be used to store the kit on a shelf when not in use, or as a strainer during operation.
Specification
- Liquid temperature between 0°C and +40°C
Application
- N/A
Flow & Head
- Max Flow: 135l/m
- Max Head: 7m

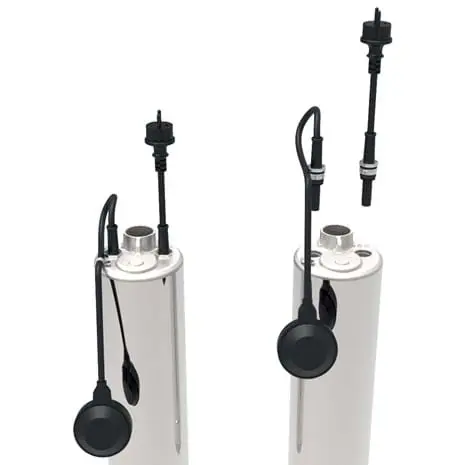

Scuba Series
The new SCUBA compact close-coupled submersible pump from Xylem brings a new level of reliability and flexibility to primary water supply options for wells, tanks or reservoirs, sprinkler irrigation systems, and pressure boosting. SCUBA quiet, compact multistage pumps are high performance and corrosion resistant, and designed to help people solve mainly domestic, light commercial and agricutural water challenges. A drinking water certified version is available upon request. This makes them perfectly suited to applications like private wells or tanks for residential use, alongside the SCUBA DRY version for working outside of the well as a noiseless surface booster pump.
Specification
- Liquid temperature between 0°C and +40°C
Application
- N/A
Flow & Head
- Max Flow: 11.5m³/h
- Max Head: 100m

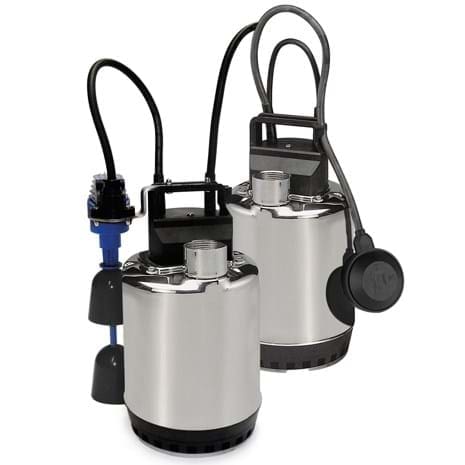

DOC Submersible Dewatering Pumps
Submersible pumps for drainage, infiltration water and emptying of pools, ponds, tanks and reservoirs. The DOC pump is mainly made of stainless steel and the motor has thermal overload protection which makes the DOC versatile, corrosion-resistant and compact. The single phase version has built in capacitor, level regulation and cable with a plug which enables fully automatic operation.
Specification
- Liquid temperature between 0°C and +40°C
Application
- N/A
Flow & Head
- Max Flow: 14m³/h
- Max Head: 11m

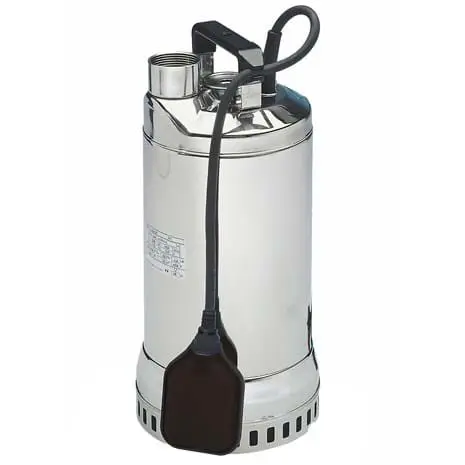

DIWA Submersible Dewatering Pump
Submersible pumps for dirty water manufactured in AISI 304 stainless steel. Four basic models with 0.55 (0.75 HP) to 1.5 kW (2HP) rated power. DIWA GT version with fixed vertical float switch system is also available.
Specification
- Liquid temperature is 0°C to +50°C
Application
- N/A
Flow & Head
- Max Flow: 25m³/h
- Max Head: 21m

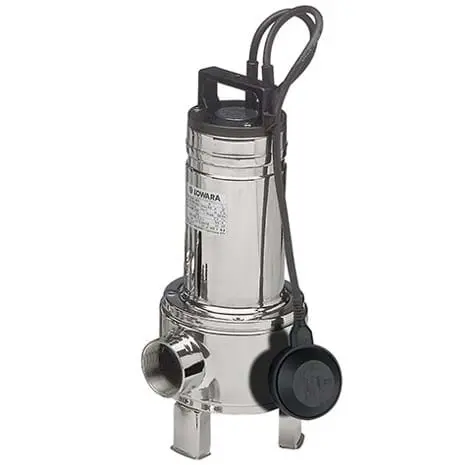

DOMO Submersible Wastewater Pumps
DOMO series, stainless steel submersible pumps, are available with twin-channel or vortex impeller (DOMO VX). They are designed to handle suspended solids up to 50mm in diameter (35 mm for DOMO 7 and DOMO 7VX).
Specification
- Liquid temperature is 0°C to +35°C
Application
- N/A
Flow & Head
- Max Flow: 40m³/h
- Max Head: 14.5m
DOMO GRI Submersible Grinder Pumps
The new DOMO GRI has been design to deliver domestic sewage, liquids containing solids or fibres, and wastewater from residential buildings to the sewer mains or a pressurized sewer network. The grinder cuts solids in sewage into smaller bits that can easily pass through the impeller and discharge pipes. Risks of clogging or blockage are very low, and the grinder system is easily adjustable.
Specification
- Liquid temperature is 0°C to +35°C
Application
- N/A
Flow & Head
- Max Flow: 6.60m³/h
- Max Head: 25m

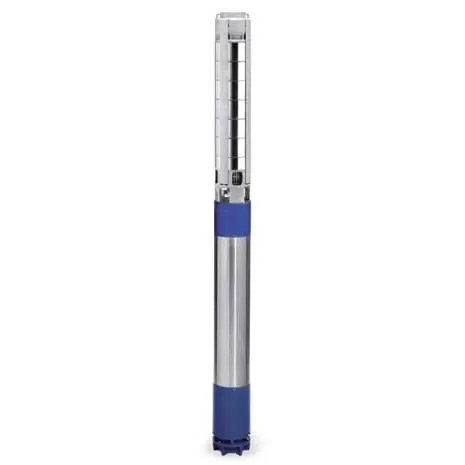

Z6, ZN6 Bore Hole Pumps
The Z6-ZN6 Series is designed for use in 6” wells. The head and motor support of this lightweight and sturdy pump is cast in stainless steel as are the shaft sleeves ensuring long lasting reliability and efficiency. The pump has a high sand handling capability which make the Z6-ZN6 series suitable for use in aggressive environments such as water supply from deep wells or irrigation over large areas such as golf courses.
Specification
- Liquid temperature is -10°C to +120°C
Application
- For 6” Wells Max imersion depth:350
Flow & Head
- Max Flow: 78m³/h
- Max Head: 700m
Z8, ZR8 Bore Hole Pumps
“The Z8-ZR8 series is designed for use in 8” wells. The pump is built in stainless steel and resists corrosion even in more aggressive environments thanks to the ZR8 version in Duplex. This design feature boasts a “dynamic” wear ring which reduces hydraulic losses to a minimum and prevents the pump from blocking during stand-by periods. Meaning the pump is ideal for use in mining, water supply from deep wells and pressure boosting and water distribution applications in municipal and industrial systems.”
Specification
- Liquid temperature is up to +30°C
Application
- For 8” Wells Max immersion depth:350
Flow & Head
- Max Flow: 180m³/h
- Max Head: 550m
DN Drainage Pumps
Drainage pumps made of cast iron and stainless steel. The DN series is designed for long life time including a high quality mechanical face seal system and an open impeller with abrasion resistant rubber coating.
Specification
- N/A
Application
- N/A
Flow & Head
- Max Flow: 17m³/h
- Max Head: 20m Liquid temperature is up to +50°C
Lowara have a large variety of different pumps included in their range. It starts off with smaller dewatering pumps such as the Scuba o DOC design. These smaller pumps are designed to be used in floods or where storm water is needed to be moved. Their range however includes a lot of different pumps including a range of different sizes and applications.
- There are many different benefits to the Lowara Submersible Pump Range some are:
- Cast Iron and Stainless-Steel Options
- Dewatering Kits for Emergencies
- Single Channel or Vortex Impeller options
- High efficiency
- Easy Installation
