Lowara’s range of prefabricated lifting stations are designed to move waste water. These compact design pump stations are designed for use above ground. The Lowara Range includes 7 different designs all for different apllications. These designs are automatic, compact and cost effective and are used when the sanitary appliances are located at a lower level than the main gravity sewer.
- Commercial & Domestic Applications
- Compact Design
- Range of Tank sizes
- Single and Twin Pump Configurations
Lowara Surface Pump Stations Range
MidiBox
Suitable for delivering clean and grey water to main sewer lines located at a higher level, or where gravity drainage is not possible.
Specification
- Tank Size: 110Lt
Flow & Head
- Max Flow: 11 l/s
- Max Head: 19 m
SingleBox
Suitable for delivering clean and grey water to main sewer lines located at a higher level, or where gravity drainage is not possible.
Specification
- Tank Size: 270Lt
Flow & Head
- Max Flow: 42 l/s
- Max Head: 25 m
DoubleBox
Suitable for delivering clean and grey water to main sewer lines located at a higher level, or where gravity drainage is not possible.
Specification
- Tank Size: 550Lt
Flow & Head
- Max Flow: 85 l/s
- Max Head: 25 m

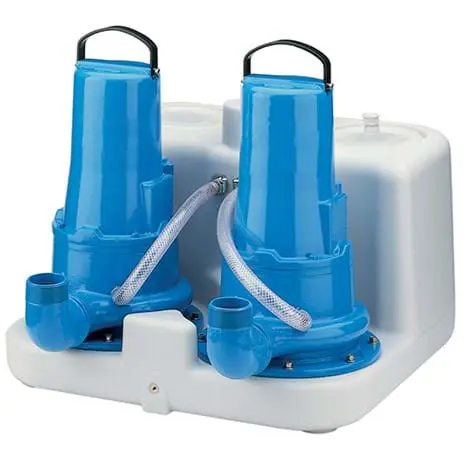

Sekamatik 50
The grinder pumps macerate incoming particles, allowing the use of small pipe diameters. This and the compact footprint make the Sekamatik 50 easy to install and ideal to use in buildings away from the main sewer line.
Specification
- Tank Size: 46Lt
Flow & Head
- Max Flow: 22 l/s
- Max Head: 32m

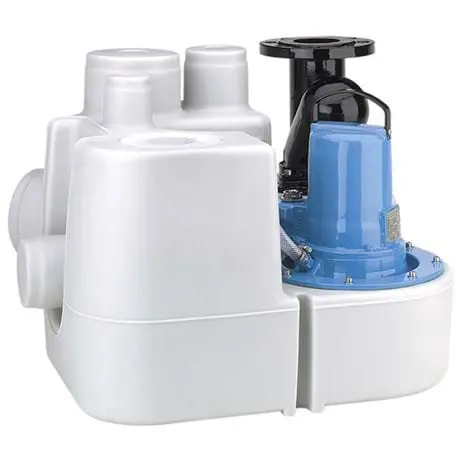

Sekamatik 100 Compact
The Sekamatik 100 has an integrated check valve and is equipped with vortex hydraulics for problem free pumping and sewage. The size is suitable for residential and smaller commercial buildings.
Specification
- Tank Size: >95 Lt
Flow & Head
- Max Flow: 50 l/s
- Max Head: 15 m

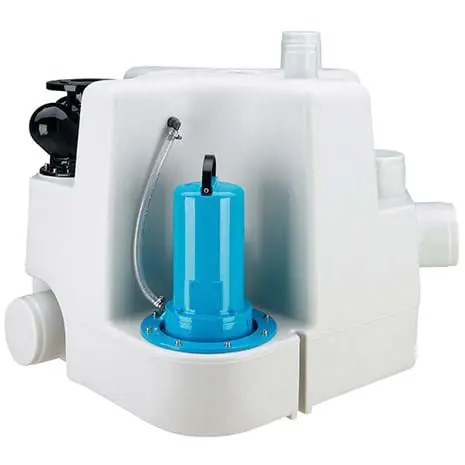

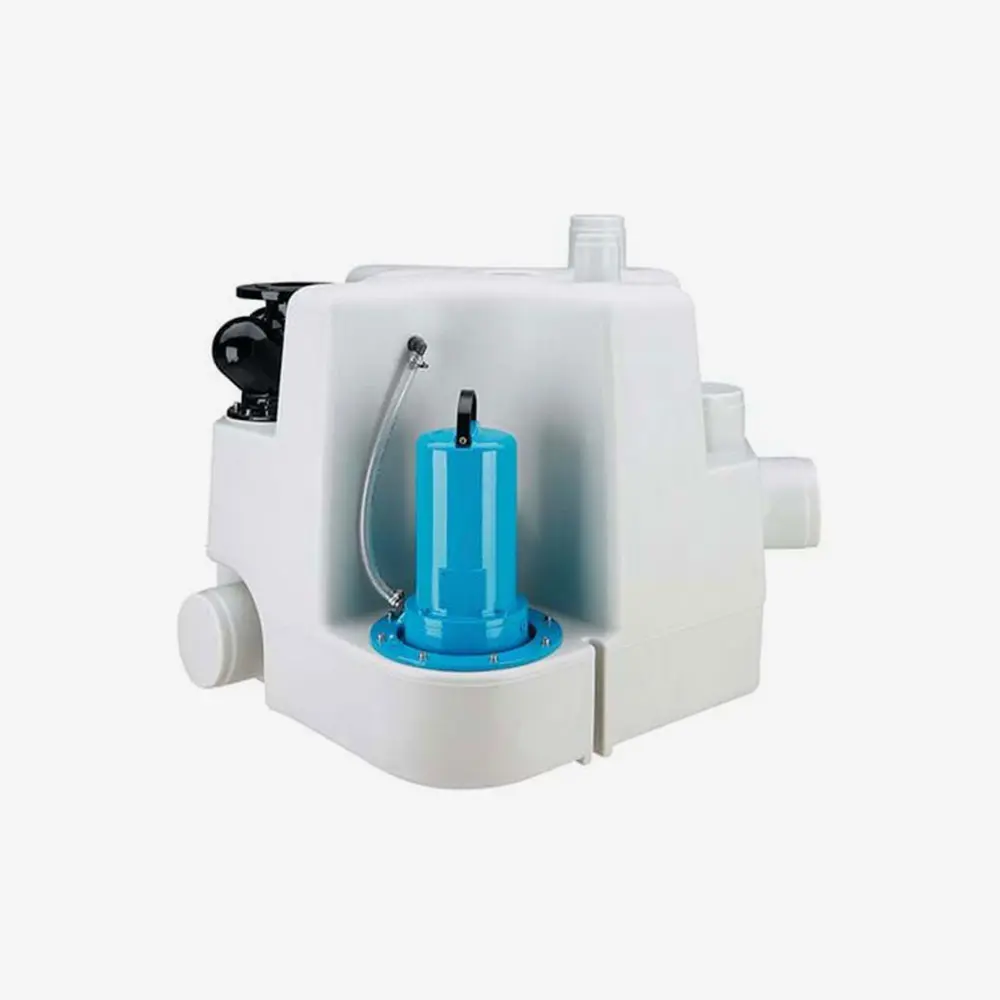

Sekamatik 300
The Sekamatik 300 has an integrated check valve and is equipped with vortex hydraulics for problem free pumping. The size is suitable for commercial and public buildings. A tandem version with higher capacity is available.
Specification
- Tank Size: >600Lt
Flow & Head
- Max Flow: 60 l/s
- Max Head: 18 m

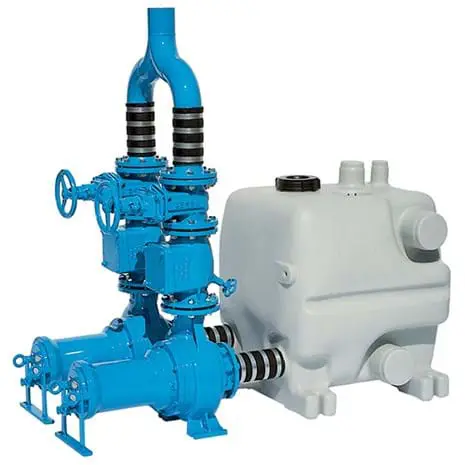

Sekamatik 400/800
This is a High volume but compact wastewater lifting station which is fully automatic and is used for handling waste water in buildings.
Specification
- Tank Size: >800Lt
Flow & Head
- Max Flow: 200 l/s
- Max Head: 37 m
Above ground pump stations, also known as lift stations, are compact package pump stations, where digging for a conventional pump station is not feasible or viable, or perhaps not cost effective option. These units are suitable for both domestic and commercial applications.
These units come fully assembled, gas-tight and water-tight, with varying size tanks, pumps and control equipment all fitted as standard to meet your sewage, storm or surface water drainage requirements.
Systems are specifically designed to be compact with highly durable and robust tanks. This enables them to be installed into basements and tight spaces, making waste removal viable. Both single and twin pump systems are available with a number of different discharge sizes, enabling easy installation. Each system comes with integrated level control and a control panel to suit your requirements.
The ideal solution when domestic clean water, rain water, gray water and wastewater must be delivered to sewer mains located at a higher level, or where gravity drainage is not possible.
PRODUCT FEATURES:
- Wastewater pumping stations for indoor and outdoor installation
- Designed according to EN 12050
- Flows up to 85 m3/h
- Heads up to 25 m
- Volume up to 550 l
