Horizontal centrifugal pumps, single stage and axial suction with back pull-out design and dismounting support foot allowing setting of discharge flange in 3 different positions.
- Free passage for pumping fluids with large particle content
- Reduced wearing from abrasive content
- Can be used in wide variety of applications
Rotomec Centrifugal Pumps Range

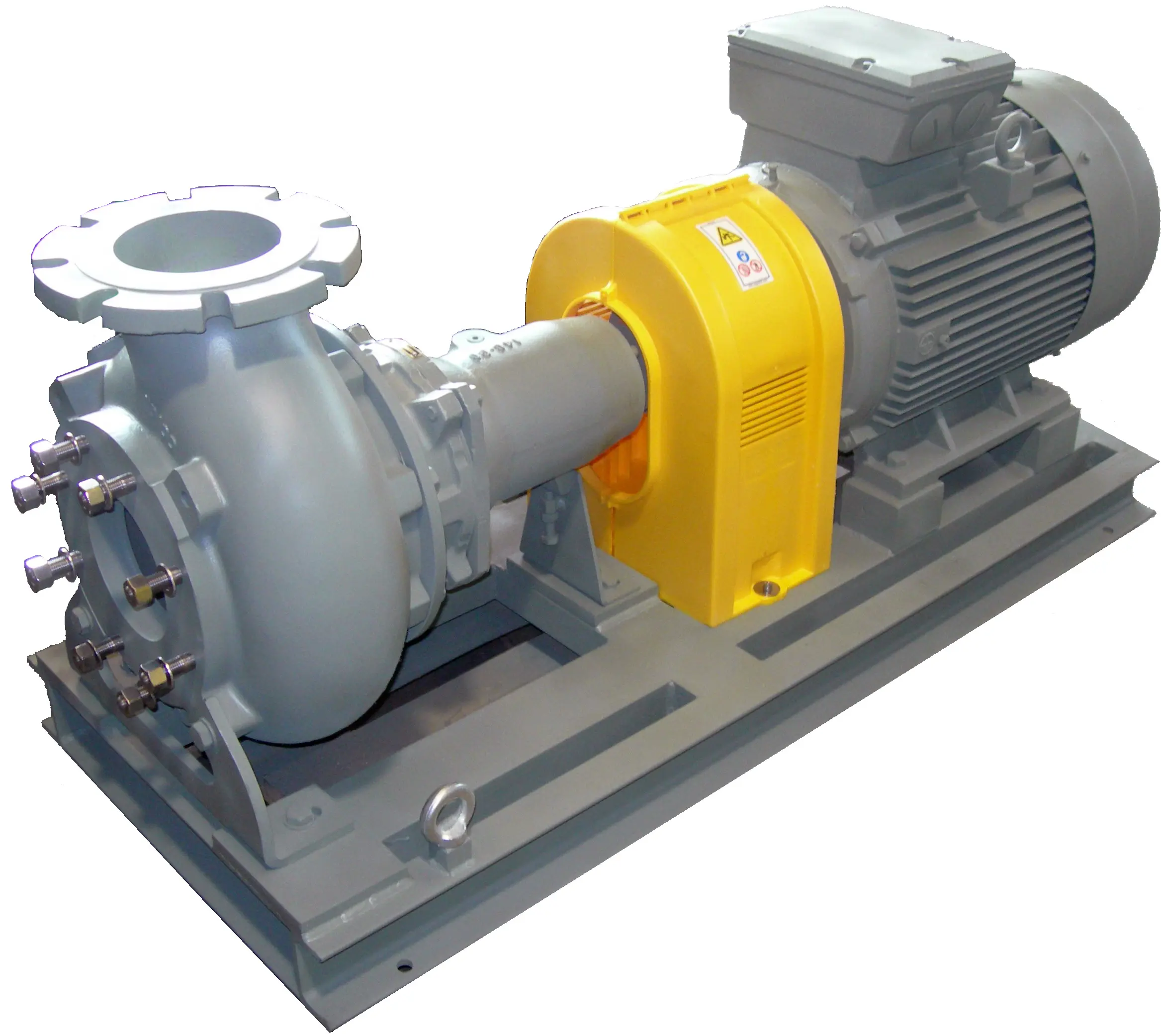

KS
Horizontal centrifugal pumps, single stage and axial suction with vortex impeller, dismounting support foot allowing setting of discharge flange in 3 different positions. Designed for the transfer of slurry and sludge, ecology, industrial processes, food processing, sugar and paper industries.
Models: KS 50, KS 65, KS 80, KS 100, KS 150, KS 200
Specification
- Vortex impeller
Flow & Head
- Max Flow: 140 l/sec
- Max Head: 43m

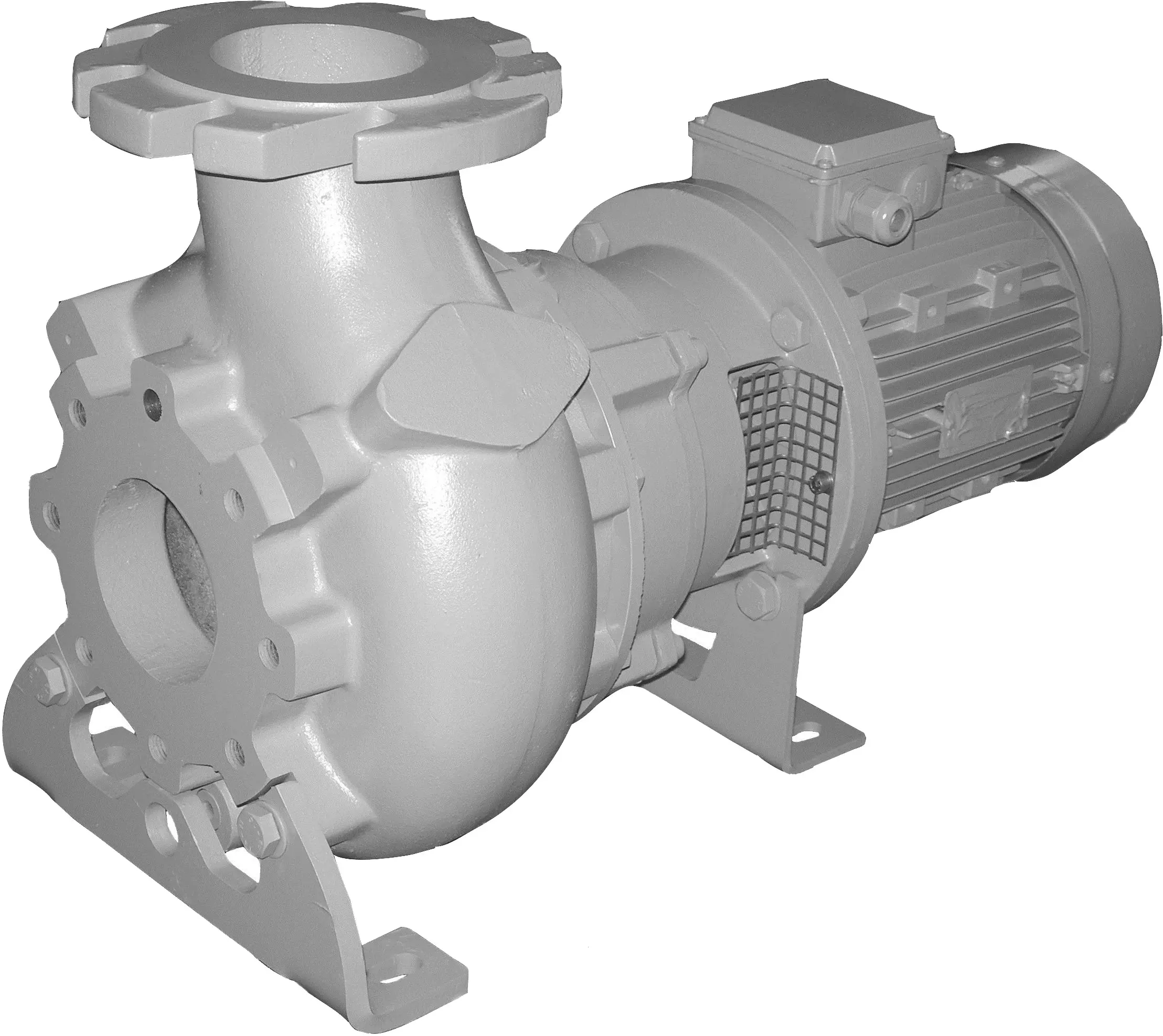

KSM
Horizontal single stage close coupled centrifugal pumps, axial suction, removable brackets, with the possibility of orienting the discharge outlet 90° and also vertical mounting of the group. Designed for the transportation of impure waters with suspended particles, dirty waters from industrial and process services, muds containing gases in the treatment plants.
Models: KSM 50, KSM 65, KSM 80, KSM 100, KSM 150, KSM 200
Specification
- Vortec Impeller
Flow & Head
- Max Flow: 140 l/sec
- Max Head: 43m
Horizontal centrifugal pumps, single stage and axial suction with back pull-out design and dismounting support foot allowing setting of discharge flange in 3 different positions.
Transfer of sewage and sludge in the ecologycal, food, sugar and paper industries.
The vortex impeller with complete free passage allows to pump liquids with suspended solids even oversized or with spinning inclusions, mud and sewage with gases without clogging.
Liquid vortex principle of operation permits a delicate handling of suspended solids without emulsions and at the same time reducing wearing effects of abrasive solids.
KS Features
1 – BEARINGS SUPPORT:
Supporting is realized with single and double ball bearings dimensioned to assure the best reliable running, shielded by means of seal gasket.
Standard: oil lubrication.
2 – MECHANICAL SEALS:
A double tandem mechanical seals in oil bath or, on request, flushed by external source is installed.
3 – SHAFT:
Shaft in stainless steel AISI 420 oversized for heavy duty.
SPECIAL VERSION
In option it is available the vertical construction with column pipe lenght on request.”
KSM Features
1 – BEARINGS SUPPORT:
It’s realised through a ball bearing which is placed on a holed shaft, and it’s inserted in the connection flange between the B5 unified motor and the seal housing.
2 – SHAFT:
Stainless steel AISI 420 shaft; it’s studied in its dimensions for strenuous services
3 – MECHANICAL SEALS:
Double mechanical seals sic/sic in tandem in oil chamber.
