Rotomecs core range are Electric submersible pumps with vortex impeller or grinder impeller. they are designed for lifting of sewage, liquids with traces of solids particularly voluminous, fibrous materials and fermented sediments with traces of gas making them the go to pump for a lot of applications.
- Competative Pricing
- Reliable Products
- High Flow Rate / Head available
- Good availability
Rotomec Submersible Pumps Range

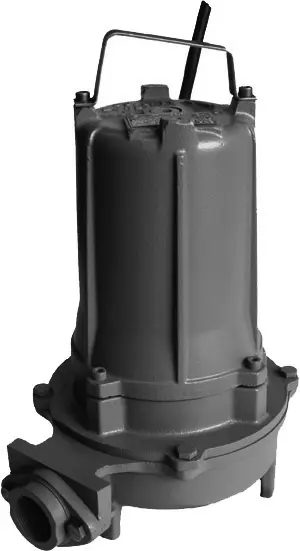

Divorex
Grinder pumps for installation with small diameter pipelines in order to handle pressurized sewage. The grinder device crushes the solid parts preventing clogging.
Models: 3211, 4012-13, 4017-18, 5020-22
Specification
- Open impeller with grinder
Flow & Head
- Max Flow: 8 l/s
- Max Head: 62 m

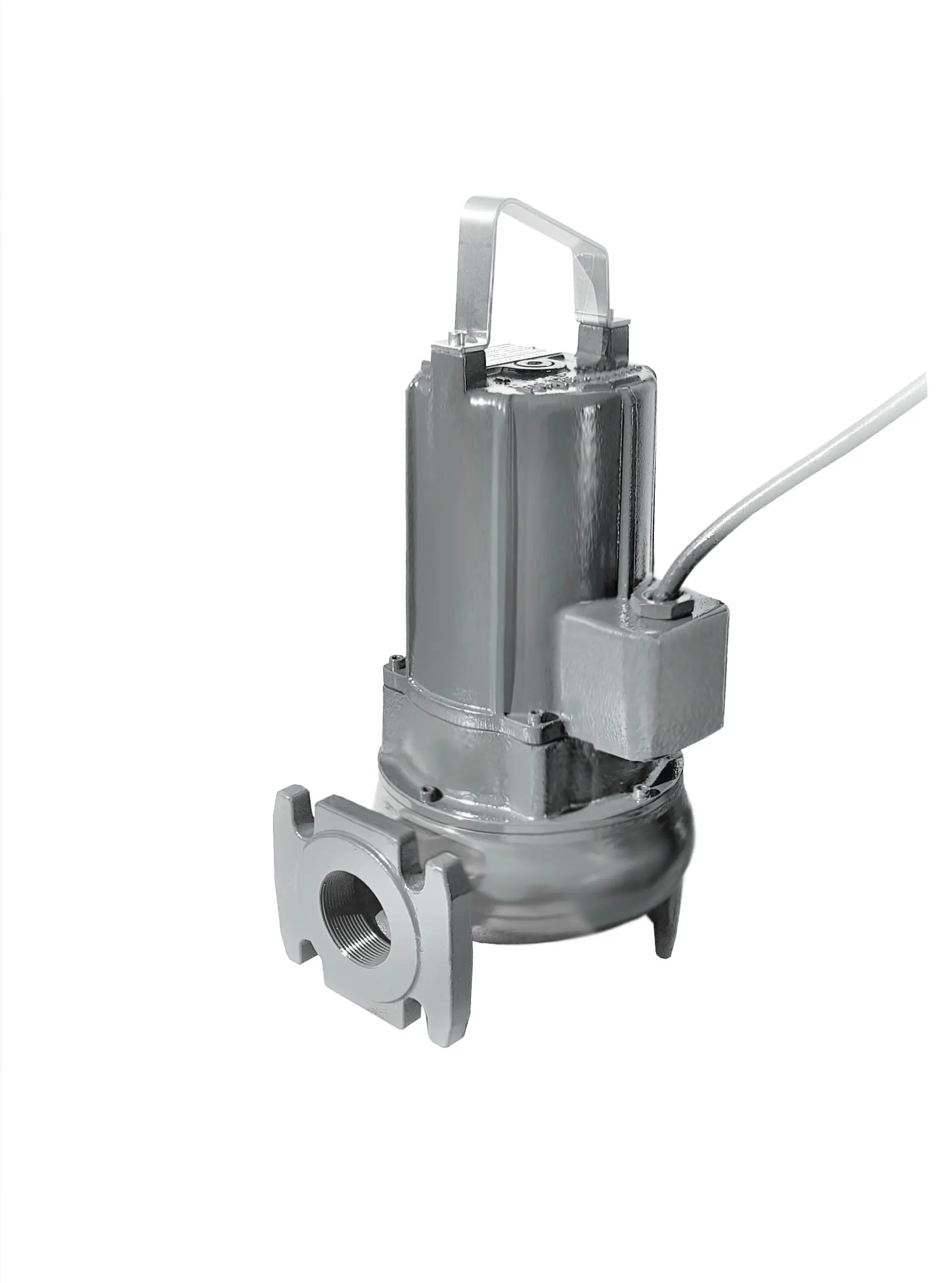

TR
Submersible electric pumps with vortex impeller. Double mechanical seal in oil-chamber. Max liquid temperature 40° C.
Models: 50 TR1.6, 50 TR, 65 TR
Specification
- Vortex impeller
Flow & Head
- Max Flow: 12.5 l/s
- Max Head: 17m

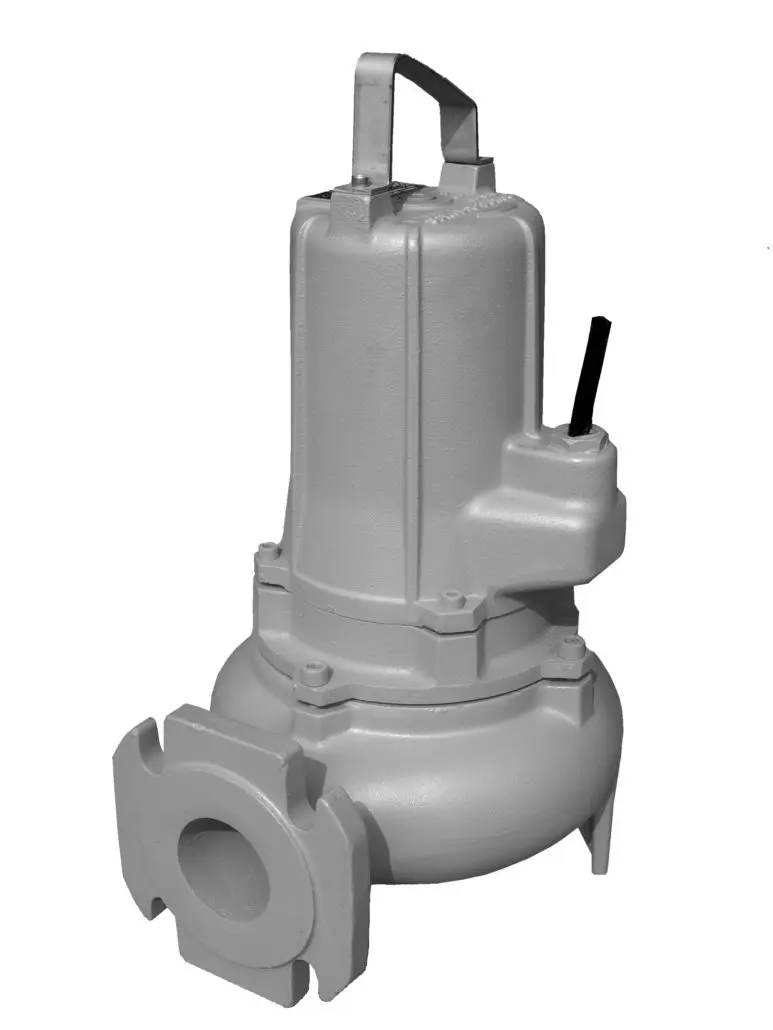

TL
Submersible electric pumps with vortex impeller. Double mechanical seal in oil-chamber. Max liquid temperature 40° C. They are used for pumping dirty water, sewage, ground water, rain water and industrial effluents.
Models: TL 50, TL 65, TL 80
Specification
- Vortex impeller
Flow & Head
- Max Flow: 20 l/s
- Max Head: 21m

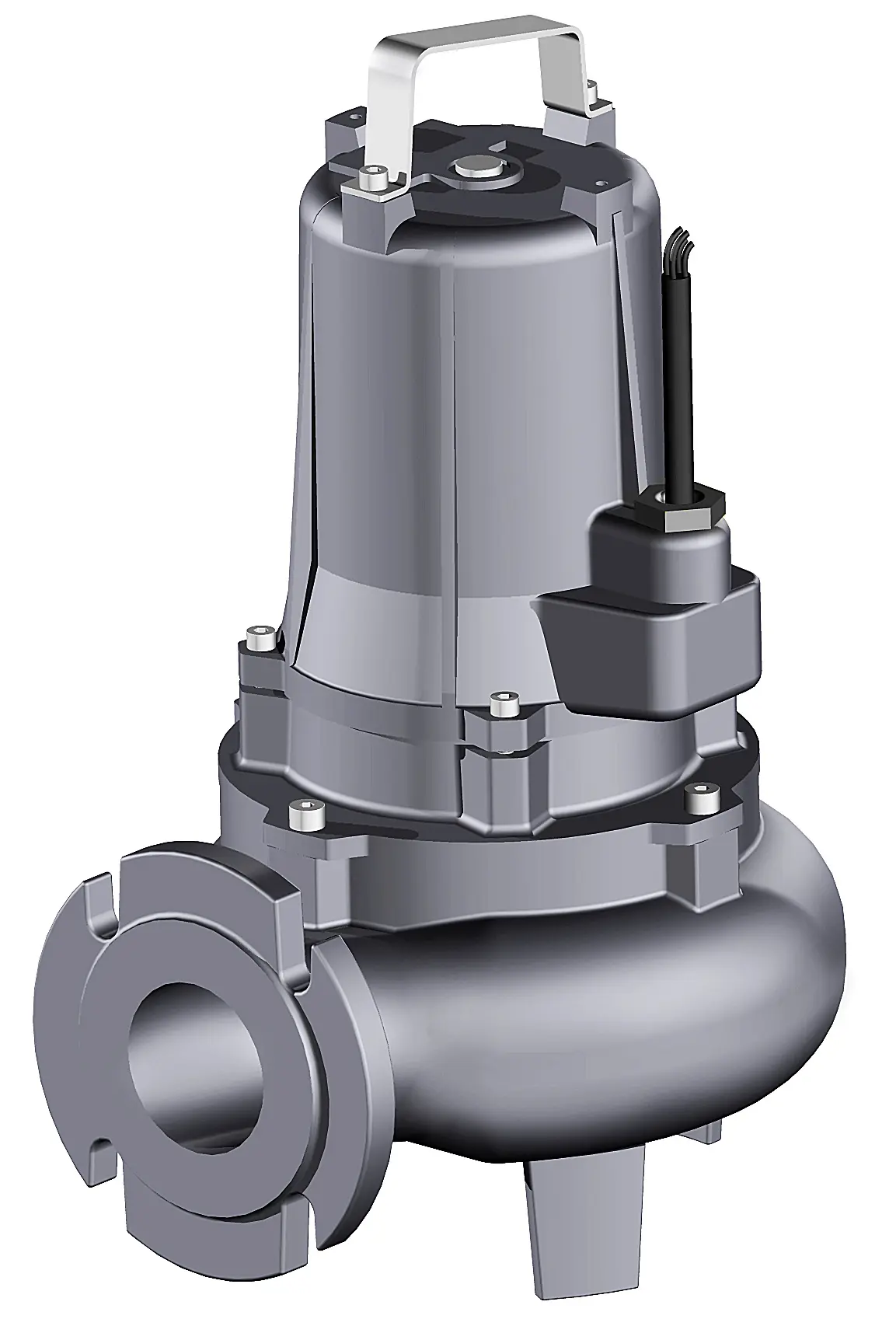

TF -TFX
Submersible pumps with vortex impeller, the version of TFX is built in AISI 316 stainless steel for corrosive liquids; TF: Pumping of sewage, rain waters, sludge and no-corrosive wastes waters for industrial plants. TFX: Suitable for lifting of particular muddy waters, sea waters and aggressive effluents.
Models: 50TF – 50TFX (AISI 316), 65TF – 65TFX (AISI 316), 80TF – 80TFX (AISI 316), 100TF – 100TFX (AISI 316)
Specification
- Vortex impeller
Flow & Head
- Max Flow: 39 l/sec
- Max Head: 28m

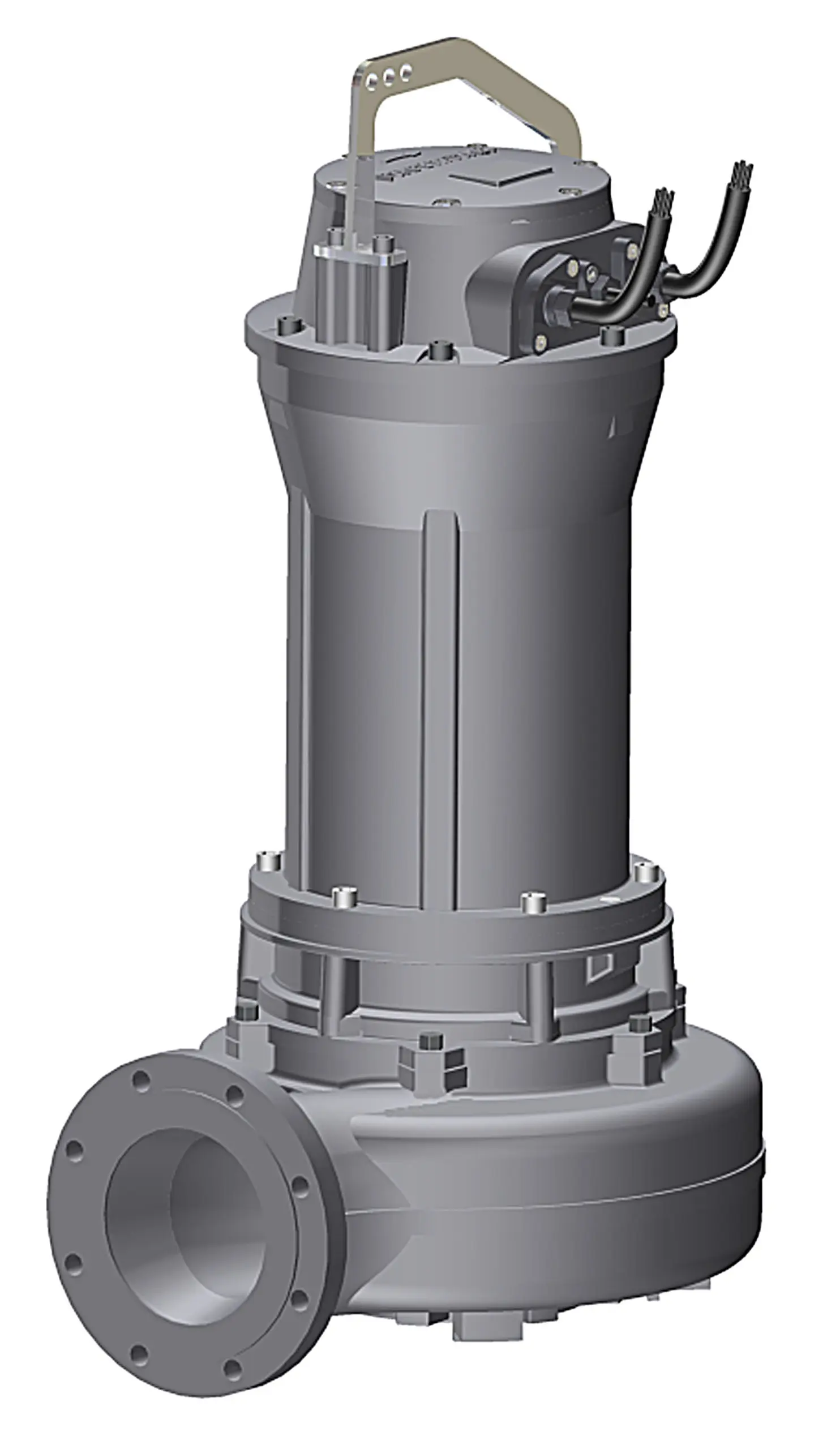

RS
Submersible electric pumps with vortex impeller. They are designed for lifting of sewage, liquids with traces of solids particularly voluminous, fibrous materials and fermented sediments with traces of gas. Available from DN 50mm to DN200mm.
Models: See download
Specification
- Vortex impeller
Flow & Head
- Max Flow: 180 l/sec
- Max Head: 50m

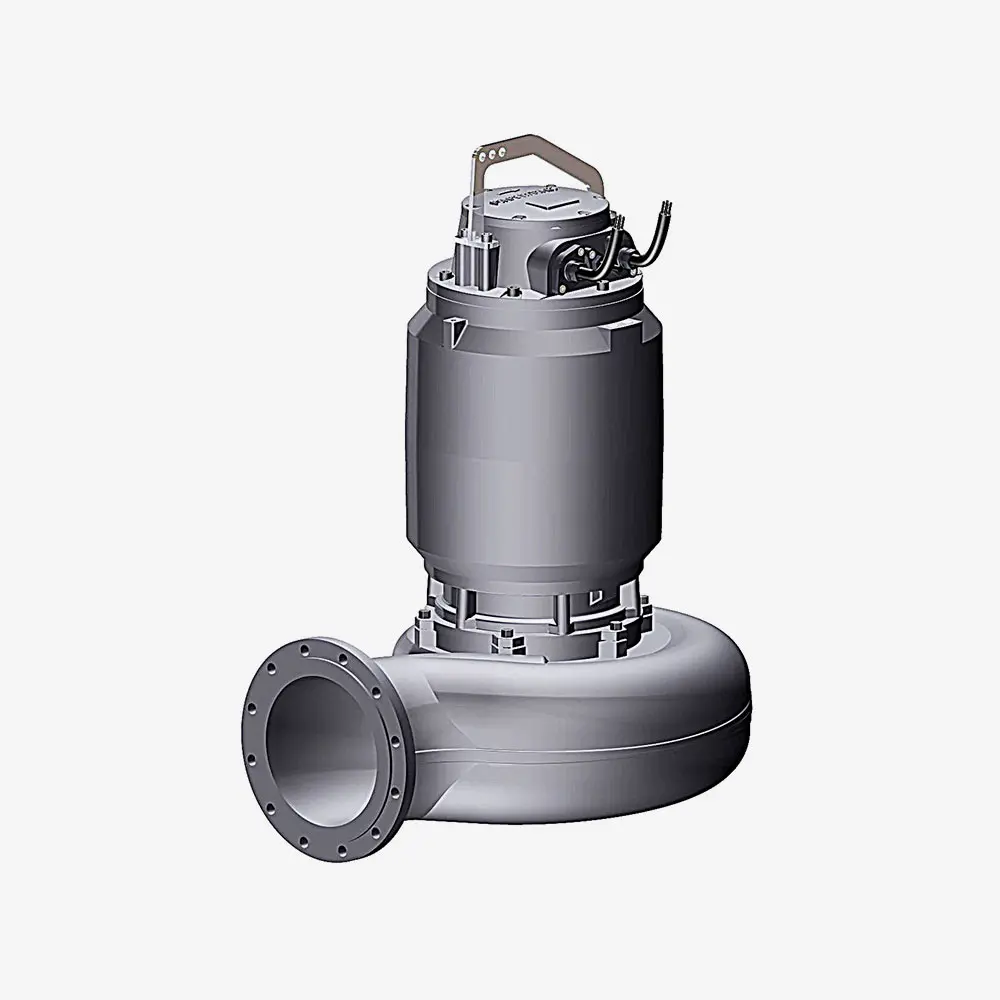

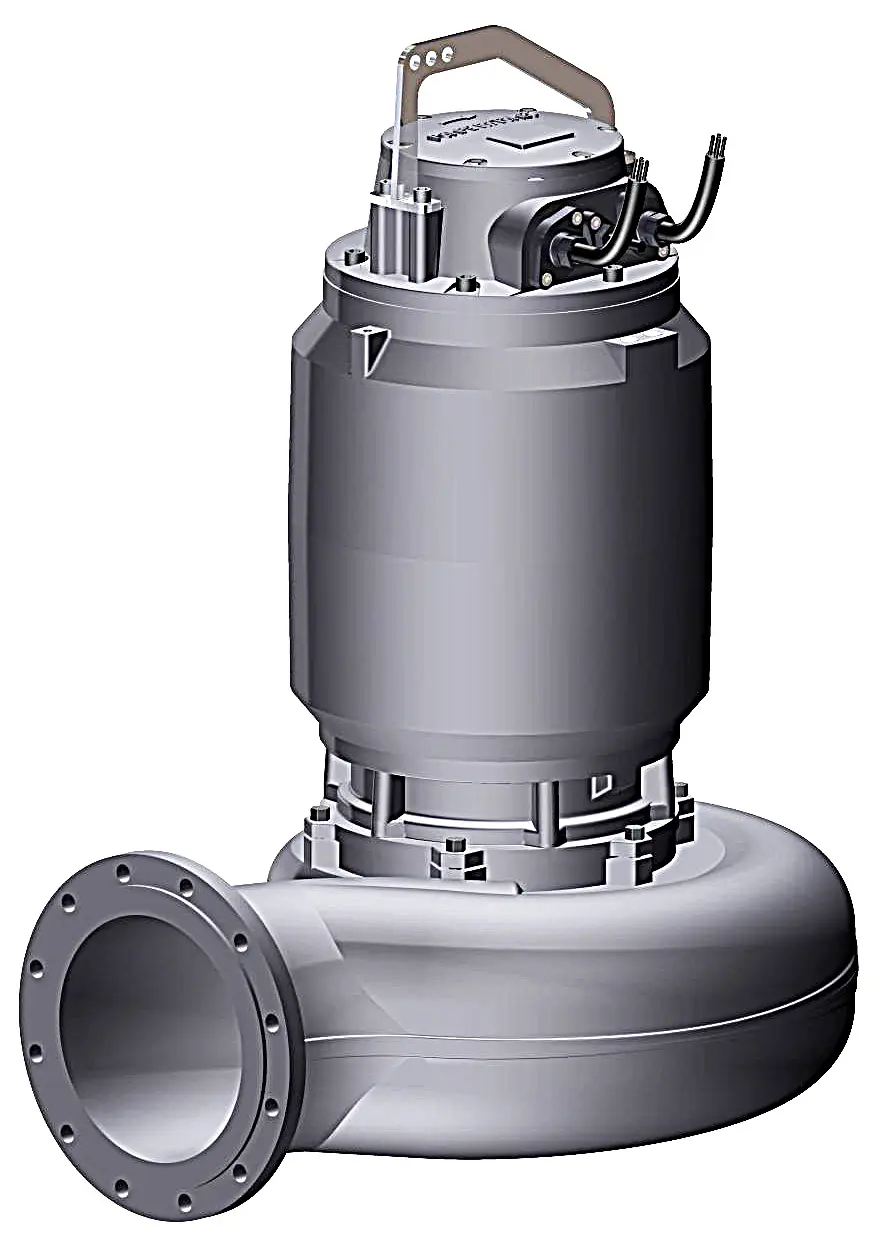

BT
Submersible pumps with two – channel impeller and self cleaning diffuser. Chopper version with cutting diffuser and impeller hardened. Designed for lifting of sewage, liquids with traces of solids particularly voluminous, fibrous materials and fermented sediments with traces of gas. Available in DN 80 to DN 300
Models: See download
Specification
- Vortex Impeller
Flow & Head
- Max Flow: 360 l/sec
- Max Head: 29m
A sump pump is a small submersible pump that is most commonly installed in the lowest part of premises such as a basement, cellar or plant room. The role of the sump pump system is to keep the area under the building dry or to prevent flooding.
Sump pumps work in conjunction with a sump pit or sump pump tank. This pit is built beneath the level that needs to remain dry, which is usually the floor level. Water or other waste liquids that may spill during a process will collect in the pit as it is channelled there and be pumped away to prevent flooding.
Options of low suction pumps, more commonly known as “puddle suckers”, for emptying shallow pits or spillages.
Small sump pumps are often very critical in many applications. A failed sump pump could mean a flooded factory floor, a flooded store or a flooded plant room. Often they are overlooked. However they are typically a cheap and quick install, that can save thousands.
