Grundfos – Multistage Pumps

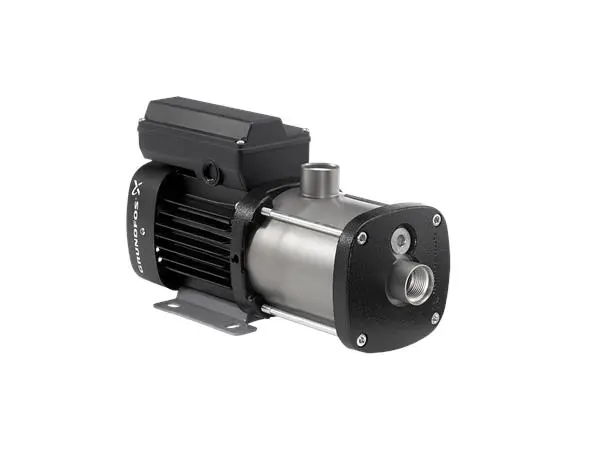

CM

CM are reliable, quiet and compact horizontal end-suction pumps. The modular pump design makes it easy to make customised solutions. The CM pumps are available in cast iron and stainless steel

Specification

• Inverter Driven: No

Flow & Head

• Max Flow: 30 m³/h
• Max Head: 132 m Liquid temperature -20 .. 120 °C p max 16 bar

CME

CME are reliable, quiet and compact horizontal end-suction pumps. The modular pump design makes it easy to make customised solutions. The CME pumps are available in cast iron and stainless steel

Specification

• Inverter Driven: Yes

Flow & Head

• Max Flow: 36 m³/h
• Max Head: 120 m Liquid temperature -20 .. 120 °C p max 16 bar

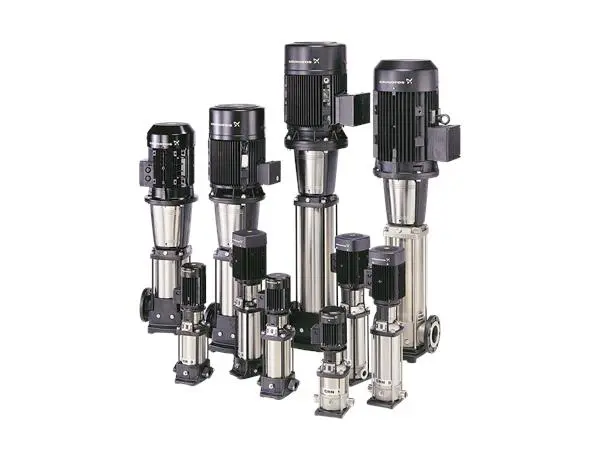

CR

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron – all other wetted parts are in stainless steel (EN 1.4301).

Specification

• Inverter Driven: No

Flow & Head

• Max Flow: 244 m³/h
• Max Head: 362 m Liquid temperature -30 .. 120 °C p max 40 bar

CRE

Vertical, multistage centrifugal pump with integrated frequency converter. The pump head and base are in cast iron – all other wetted parts are in stainless steel (EN 1.4301).

Specification

• Inverter Driven: Yes

Flow & Head

• Max Flow: 242 m³/h
• Max Head: 215 m Liquid temperature -30 .. 120 °C p max 30 bar

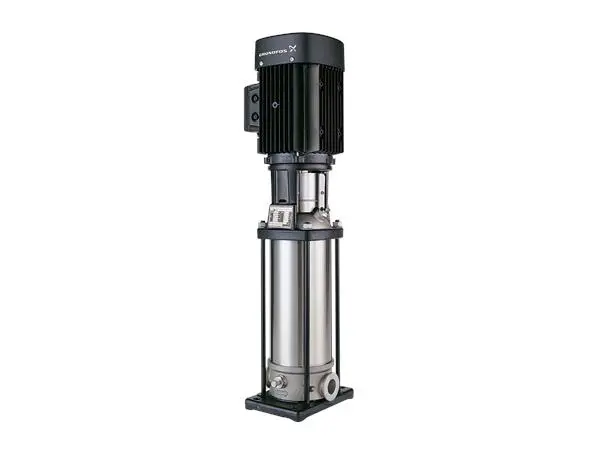

CRI

Vertical, multistage centrifugal pump with suction and discharge ports on same the level. Pump materials in contact with the liquid are in stainless steel (EN 1.4301).

Specification

• Inverter Driven: No

Flow & Head

• Max Flow: 30 m³/h
• Max Head: 252 m Liquid temperature -20 .. 120 °C p max 25 bar

CRIE

Vertical, multistage centrifugal pump with integrated frequency converter. Pump materials in contact with the liquid are in stainless steel (EN 1.4301).

Specification

• Inverter Driven: Yes

Flow & Head

• Max Flow: 35 m³/h
• Max Head: 252 m Liquid temperature -20 .. 120 °C p max 25 bar

CRN

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. Pump materials in contact with the liquid are in high-grade stainless steel (EN 1.4401).

Specification

• Inverter Driven: No

Flow & Head

Max Flow: 244 m³/h
Max Head: 362 m Liquid temperature -40 .. 150 °C p max 40 bar

CRNE

Vertical, multistage centrifugal pump with integrated frequency converter. Pump materials in contact with the liquid are in high-grade stainless steel (EN 1.4401).

Specification

• Inverter Driven: Yes

Flow & Head

• Max Flow: 242 m³/h
• Max Head: 252 m Liquid temperature -40 .. 120 °C p max 30 bar

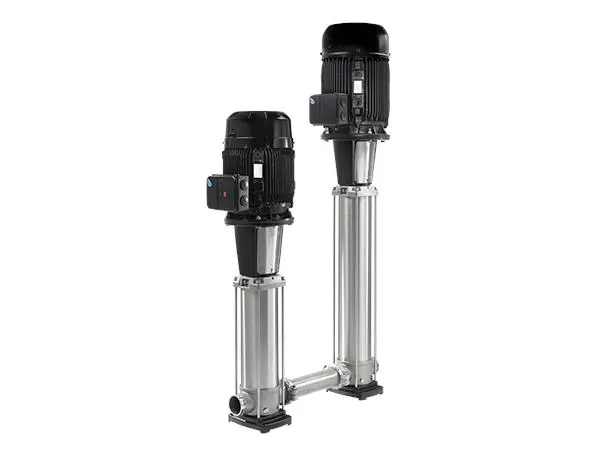

CRNE-HS, CRN-SF

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. Pump materials in contact with the liquid are in high-grade stainless steel (EN 1.4401).

Specification

• Inverter Driven: Yes/No

Flow & Head

• Max Flow: 87 m³/h
• Max Head: 487 m Liquid temperature -30 .. 120 °C

CRT

Vertical, multistage centrifugal pump with suction and discharge ports on same the level. Materials in contact with the liquid are in Titanium. Titanium has an exceptional resistance to a wide range of acids, alkalis, seawater and industrial chemicals.

Specification

• Inverter Driven: No

Flow & Head

• Max Flow: 22 m³/h
• Max Head: 246 m Liquid temperature -25 .. 120 °C”

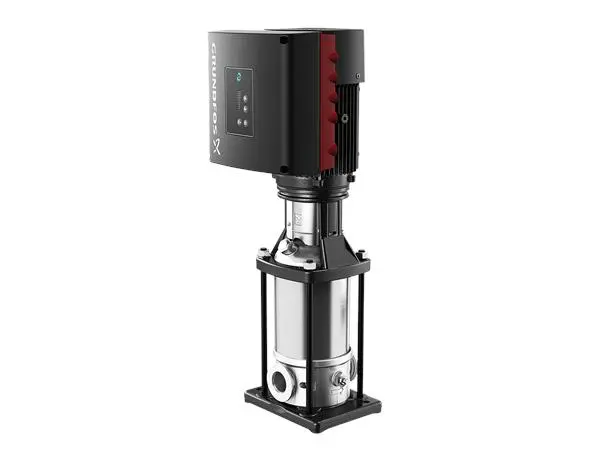

CRTE

Vertical, multistage centrifugal pump with integrated frequency converter. Materials in contact with the liquid are in Titanium has an exceptional resistance to a wide range of acids, alkalis, seawater and industrial chemicals.

Application

• Inverter Driven: Yes

Flow & Head

• Max Flow: 26 m³/h
• Max Head: 246 m Liquid temperature -20 .. 120 °C

CR Flex

Vertical multistage pumps with Renewable MGFlex motor for solar, wind and AC powersource. Runs on both AC and DC voltage

Specification

• Inverter Driven: Yes

Flow & Head

• Max Flow: Liquid temperature -20 .. 120 °C
• Max Head:

MTA

Single stage pump for tank top mounting for pumping cooling lubricants and cutting oils for machine tool applications.

Specification

• Inverter Driven: No

Flow & Head

• Max Flow: 21 m³/h
• Max Head: 20 m Liquid temperature 0 .. 60 °C

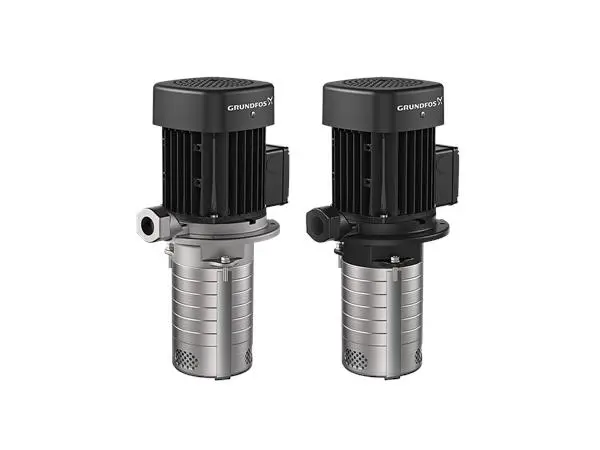

MTH

Vertical multistage centrifugal pump designed for pumping of cooling lubricants for machine tools, condensate transfer and similar applications.

Specification

• Inverter Driven: No

Flow & Head

• Max Flow: 8 m³/h
• Max Head: 99 m Liquid temperature -10 .. 90 °C p max 10 bar

MTR

Vertical multistage centrifugal pump designed for tank top mounting and for pumping of cooling lubricants and cutting oils for machine tools, cooling applications, industrial liquid transfer and similar applications.

Specification

• Inverter Driven: No

Flow & Head

• Max Flow: 87 m³/h
• Max Head: 324 m Liquid temperature -10 .. 90 °C p max 25 bar

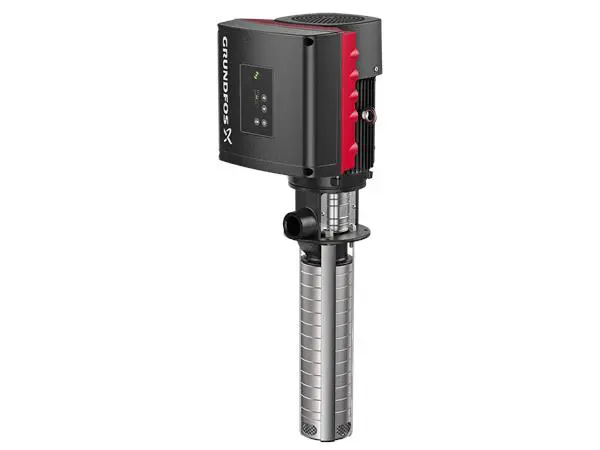

MTRE

Vertical multistage centrifugal pump with integrated frequency converter designed for tank top mounting and for pumping of cooling lubricants and cutting oils for machine tools, cooling applications, industrial liquid transfer and similar applications.

Specification

• Inverter Driven: Yes

Flow & Head

• Max Flow: 58 m³/h
• Max Head: 367 m Liquid temperature -10 .. 90 °C p max 38 bar”

MTS

Screw spindle pump designed for pumping cooling lubricants and cutting oils for machine tool applications.

Specification

• Inverter Driven: No

Flow & Head

• Max Flow: 4 m³/h
• Max Head: 720 m Liquid temperature 0 .. 80 °C p max 100 bar

SPK

Vertical multistage centrifugal pump designed for tank top mounting and for pumping of cooling lubricants and cutting oils for machine tools, condensate transfer and similar applications.

Specification

• Inverter Driven: No

Flow & Head

• Max Flow: 5 m³/h
• Max Head: 98 m Liquid temperature -10 .. 90 °C
