Lifting stations or known as above ground pumping stations for collecting and removing wastewater of inside buildings.
- Compact Design
- Range of tank sizes
- Commercial & Domestic Applications

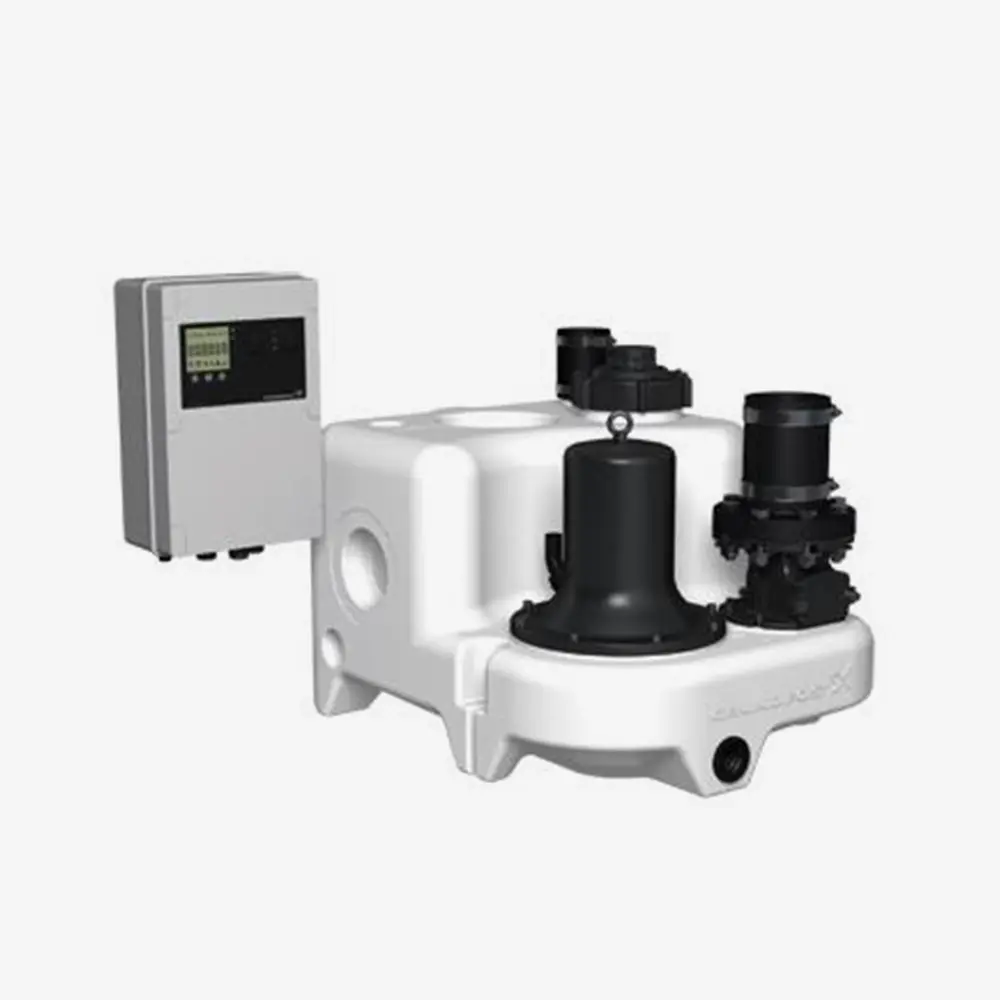

Grundfos Above Ground Pump Station Range

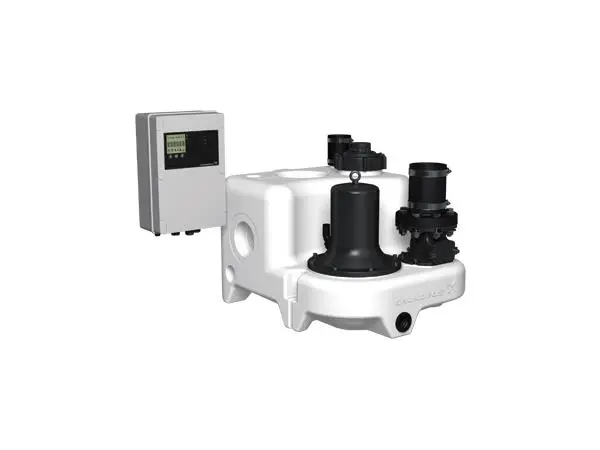

Multilift M
Grundfos MULTILIFT M compact lifting stations are all-in-one solutions featuring a larger collecting tank of 93 litres and a vortex impeller, designed for the collection and pumping of domestic wastewater from selected sanitary appliances, especially for single-family houses.
Flow & Head
- Max Flow: 17 l/s
- Max Head: 21 m Liquid temperature 0-40 °C

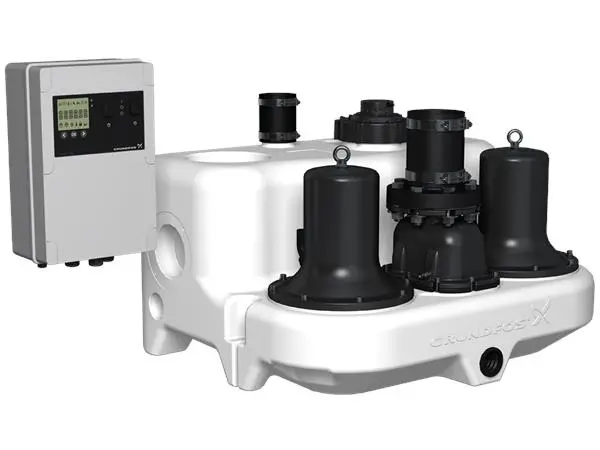

Multilift MD
Grundfos MULTILIFT MD double-pump lifting stations are all-in-one solutions featuring a collecting tank of 130 litres, designed for the collection and pumping of domestic wastewater from selected sanitary appliances, especially for multi-family houses.
Flow & Head
- Max Flow: 17 l/s
- Max Head: 21 m Liquid temperature 0-40 °C

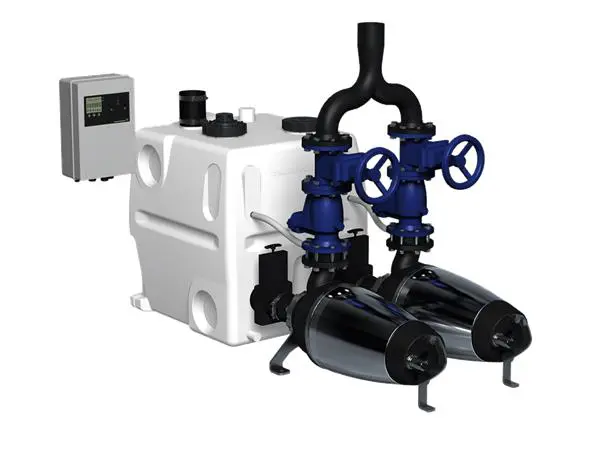

Multilift MD1, MDV
Grundfos MULTILIFT MD1, MDV lifting stations are all-in-one solutions featuring a large collecting tank of 450 litres and a SE or SL pump with vortex impeller, designed for the collection and pumping of wastewater from selected sanitary appliances, especially for commercial applications and buildings.
Flow & Head
- Max Flow: 37 l/s
- Max Head: 45 m Liquid temperature 0 .. 40 °C p max 10 bar
Above ground pump stations, also known as lift stations, are compact package pump stations, where digging for a conventional pump station is not feasible or viable, or perhaps not cost effective option. These units are suitable for both domestic and commercial applications.
These units come fully assembled, gas-tight and water-tight, with varying size tanks, pumps and control equipment all fitted as standard to meet your sewage, storm or surface water drainage requirements.
Systems are specifically designed to be compact with highly durable and robust tanks. This enables them to be installed into basements and tight spaces, making waste removal viable. Both single and twin pump systems are available with a number of different discharge sizes, enabling easy installation. Each system comes with integrated level control and a control panel to suit your requirements.
MULTILIFT lifting stations are all-in-one solutions designed for the collection and pumping of domestic wastewater from selected sanitary appliances. These appliances may be in a single room, a complete floor or an entire building of any size, from a single-family house up to a huge shopping mall. MULTILIFT lifting stations come in many versions of different size and performance.
Most versions come complete and pre-assembled, which enables quick and low-cost installation.
Lifting stations are designed to be placed inside a building, and their outlet pipes are to be connected to the wastewater collecting lines of the building.The MULTILIFT unit consist of these main components:
Gas, odour and pressure-tight tank, wastewater pump in service friendly, dry installation outside the tank, level sensor, controller and non-return valve.
In spite of the compact design and the dry installed pumps, lifting stations are able to handle a large amount of domestic wastewater.
MULTILIFT lifting stations are mainly installed in basements situated below the municipal sewer system outside the building. In those cases, the wastewater must be pumped up above the backflow level. Depending on local regulations, this is normally the street level.
Lifting stations are the only safe system to ensure uninterrupted, sustained discharge of wastewater from basements into sewer lines which may be overloaded, e.g. by heavy rainfall. The application overview below shows typical installation sites for MULTILIFT lifting stations.
