These hot water or thermal oil pumps are suitable for moving liquid that is 120°C and higher.
- Improved efficiency
- Reduced operating costs
- Low vibration levels
KSB Thermal Oil and Hot Water Pumps Range

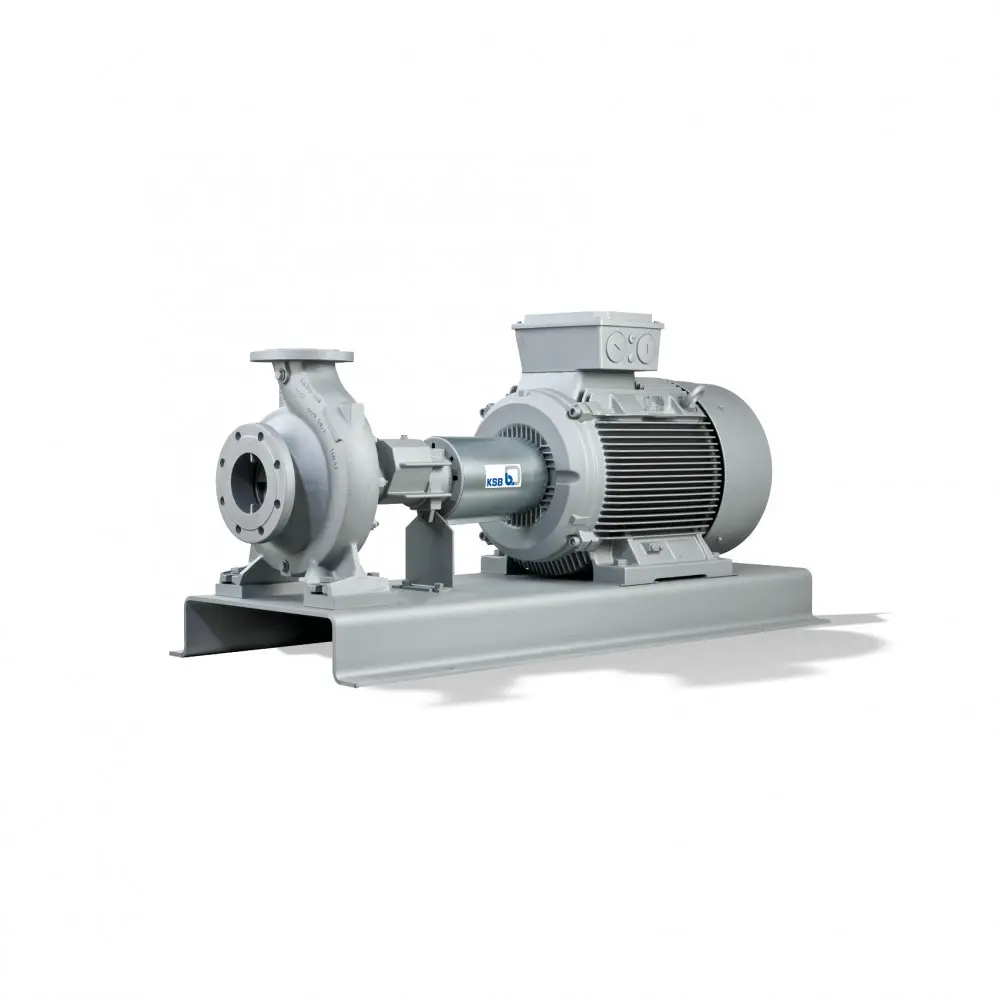

Etanorm SYT
Horizontal volute casing pump in back pull-out design, single-stage, with ratings and dimensions to EN 733, radially split volute casing with integrally cast pump feet, replaceable casing wear rings, closed radial impeller with multiply curved vanes, single mechanical seal to EN 12756, double mechanical seal to EN 12756, drive-end bearings: rolling element bearings, pump-end bearings: plain bearings, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; ATEX-compliant version available.
Flow & Head
- Max Flow: 754m3/h
- Max Head: 102m
- Max Liquid Temp:350°C

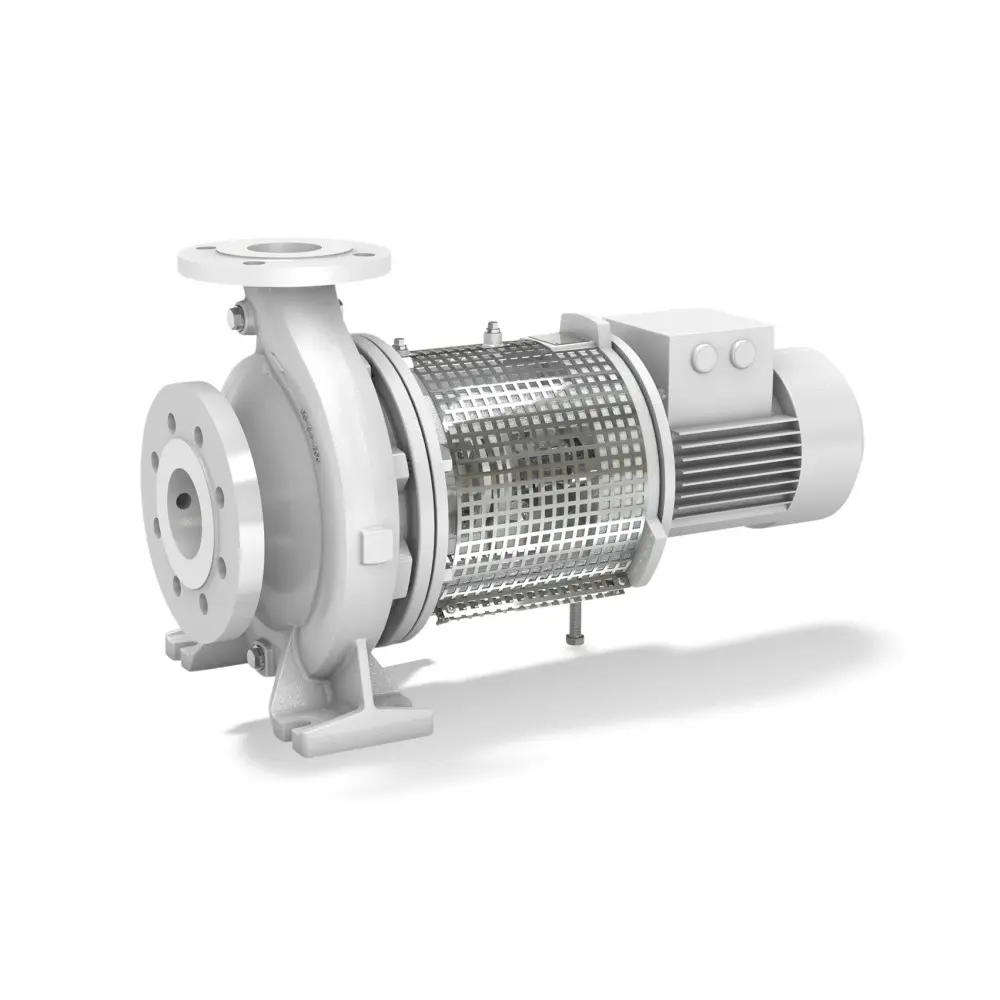

Etabloc SYT
Volute casing pump for horizontal or vertical installation, back pull-out design, single-stage, with ratings to EN 733, radially split volute casing, replaceable casing wear rings, volute casing with integrally cast pump feet, closed radial impeller with multiply curved vanes, single mechanical seal to EN 12756, product-lubricated carbon plain bearing, grease-lubricated radial ball bearing in the motor housing, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system, ATEX-compliant version available.
Flow & Head
- Max Flow: 337m3/h
- Max Head: 99m
- Max Liquid Temp:350°C

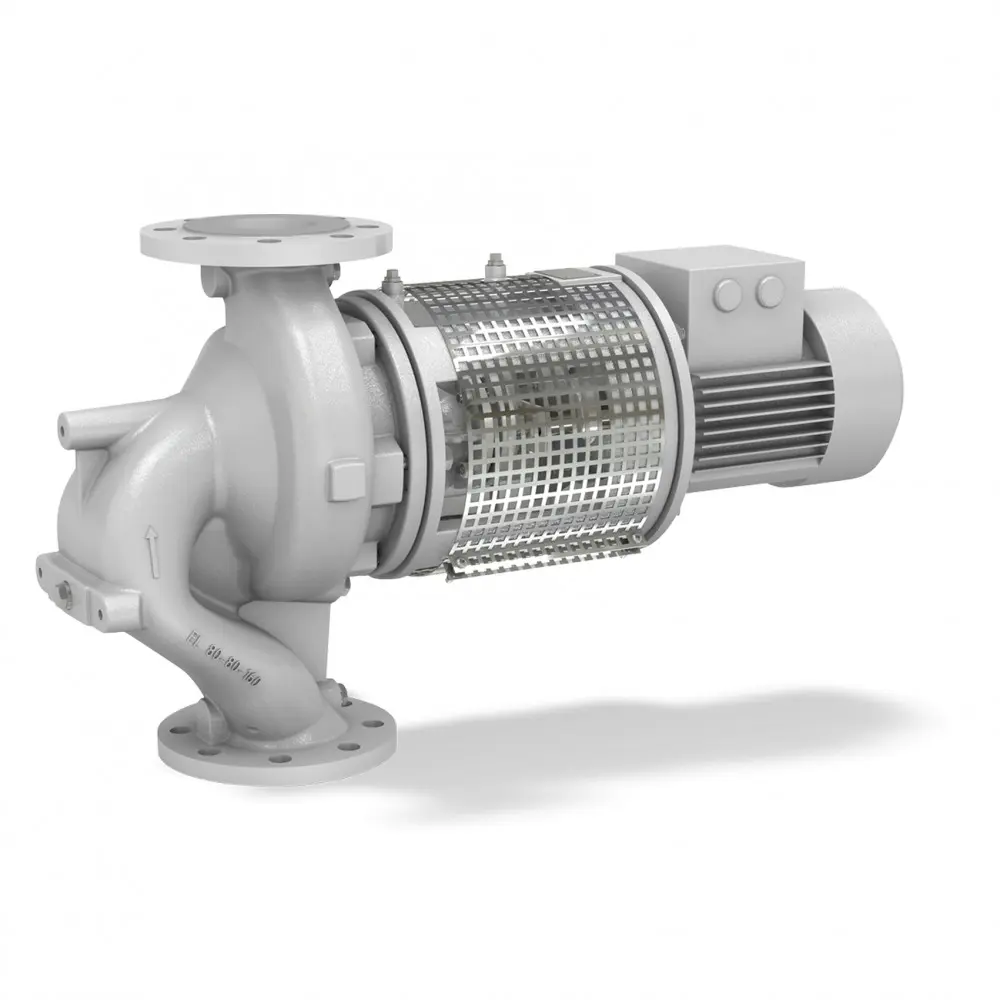

Etaline SYT
Single-stage volute casing pump in in-line design, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; pump shaft and motor shaft are rigidly connected. ATEX-compliant version available.
Flow & Head
- Max Flow: 316m3/h
- Max Head: 101m
- Max Liquid Temp:350°C
These hot water or thermal oil pumps are suitable for moving liquid that is 120°C.
