There are both Cast Iron or Stainless Steel Pumps availible that are suitable for working on the surface with a horizontal or vertical shafts axis. You can get both single-stage or multistage pumps with either closed or open impellers.
- High Efficiency
- Sturdy Construction
- Impeller available in Stainless Steel
Ebara Centrifugal Pumps Range
3M Series
This 3M series is a standardised single-stage centrifugal pump which is availible with various sealing systems. This is availible in both 2 and 4 poles and comes with a cast iron valoot.
Specification
Availible in both Stainless Steel and Cast Iron
Flow & Head
- Max Flow: 20 – 132 m³/h
- Max Head: 23 – 67 m Max Liquid temperature from -10°C – +120°C
3S Series
This Centrifugal Endsuction Pump is a close coupled design, it is a cast iron monoblock Centrifugal Pump meeting the EN 733 standards.
Specification
Availible in both Stainless Steel and Cast Iron
Flow & Head
- Max Flow: 20 – 132m³/h
- Max Head: 23 – 92m Max Liquid temperature from -20°C – 90°C
3P Series
This centrifugal pump is EN733 Compliant and is available in a range of materials. Suitable for operation in even the most challenging and heavy-duty conditions, this reliable and efficient pump allows easy maintenance thanks to its back pull-out design, allowing the easy removal of the impeller-motor block without disconnecting the pump body from the piping.
Specification
Availible in both Stainless Steel and Cast Iron
Flow & Head
- Max Flow: 126 m³/h
- Max Head: 24 m Max Liquid temperature from -10°C – 90°C
3D Series
This cast iron centrifugal pump is EN733 standardised and features AISI 304 and AISI 316 steel impeller, axial suction and radial discharge with 2 or 4 poles motors. Highly versatile, this system can adapt to various operational needs based on the type of liquid, temperature of other factors of use.
Specification
N/A
Flow & Head
- Max Flow: 20 – 138 m³/h
- Max Head: 18.2 – 70 m Max Liquid temperature from -5°C – 120°C
3DS Series
Available in 3 versions, this EN733 standardised cast iron centrifugal pump is highly versatile and suitable for a range of applications; from pressurisation and fire control through to heating, air conditioning and the supply of water to industrial, civil and agricultural plants. Setting this system apart is its back pull-out design that allows the removal of the motor, coupling, bracket and impeller without compromising or disassembling the piping.
Specification
N/A
Flow & Head
- Max Flow: 700 m³/h
- Max Head: 29 m Max Liquid temperature from -5°C – 90°C

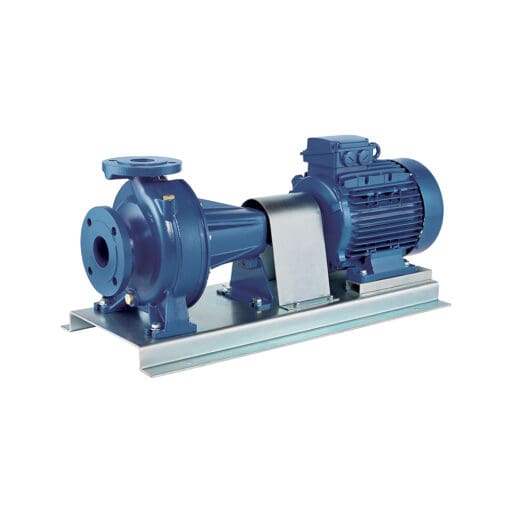

3DP Series
A highly popular cast iron end suction centrifugal pump, the 3DP series is highly versatile and is suitable for a range of applications; from pressurisation and fire control through to heating, air conditioning and the supply of water to industrial, civil and agricultural plants.
Specification
N/A
Flow & Head
- Max Flow: 2.2 m³/h
- Max Head: 51 m Max Liquid temperature from -10°C – 90°C

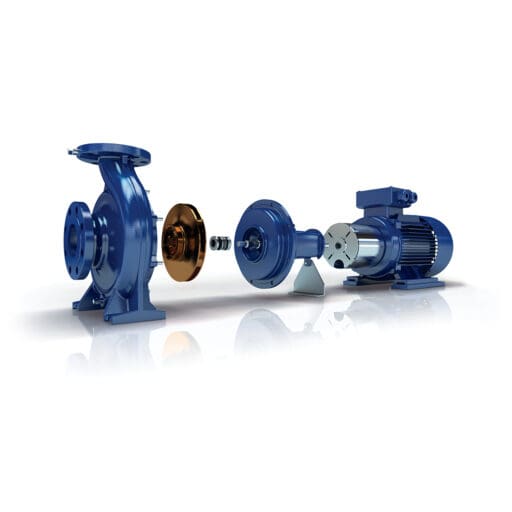

GS Model
Available with a bronze or cast iron impeller, featuring a sturdy design and offering some of the highest levels of efficiency, this EN 733 standardised single-stage cast iron centrifugal pump and electric pump captures several performance and technical benefits in one convenient solution. Highly durable, this popular system is suitable for heavy-duty industrial applications.
Specification
N/A
Flow & Head
Max Flow: 1300 m³/h
Max Head: 150 m Max Liquid temperature from -10°C – +140°C
There are both Cast Iron or Stainless Steel Pumps availible that are suitable for working on the surface with a horizontal or vertical shafts axis. You can get both single-stage or multistage pumps with either closed or open impellers.
Let’s Talk Pressure, we understand that every facility has unique demands. speak with a system expert today and get a recommendation built around your environment.
