A pump that uses an impellor rotating within a casing to move water or other fluids by using centrifugal force. The most commonly found pump for water transfer…
- Twin Seal option available
- Industrial and bespoke applications
- Hot oil and high temperature options
- Robust and reliable
KSB Centrifugal Pumps Range

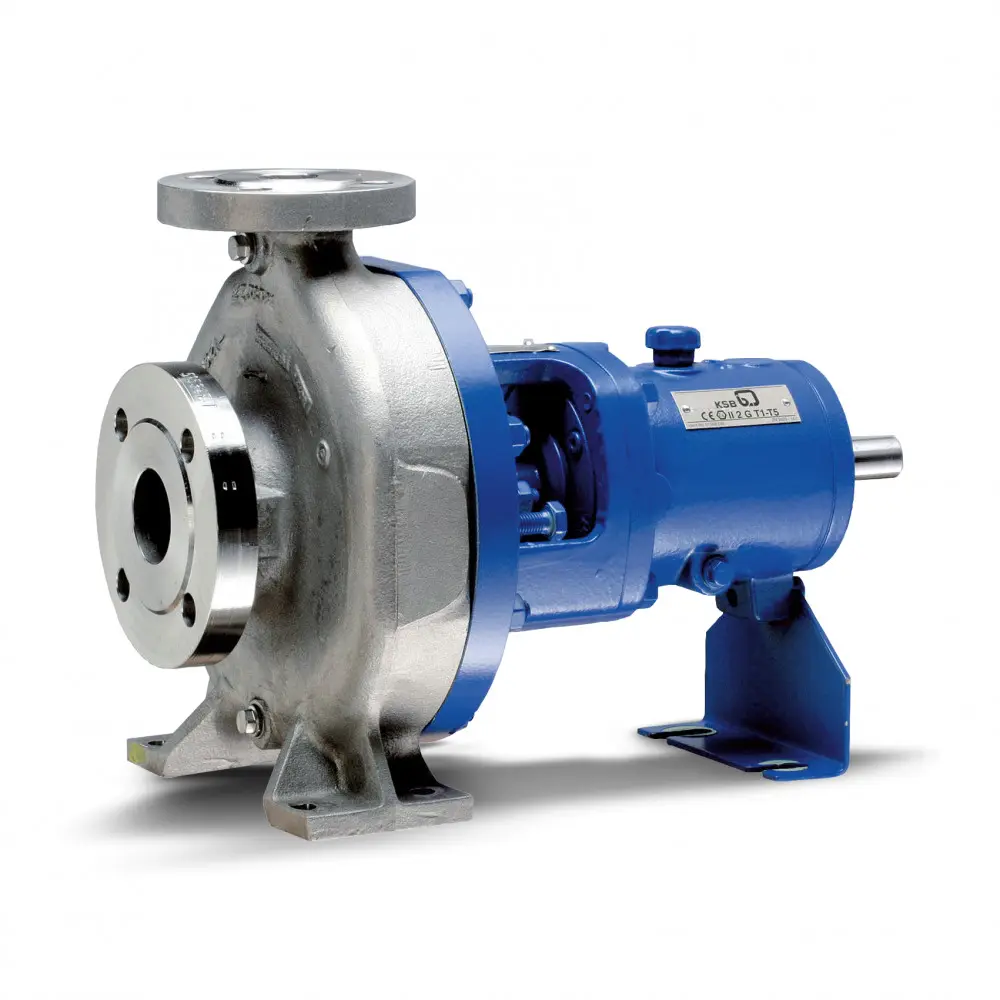

CPKN
Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to ISO 2858 / ISO 5199. Also available as a variant with “wet” shaft, conical seal chamber and/or semi-open impeller (CPKNO). ATEX-compliant version available.
Flow & Head
- Max Flow: 4800 m³/h
- Max Head: 275m
Emporia CP
Single-stage centrifugal pump in close-coupled design, extremely quiet operation, for use in domestic, public and industrial applications.
Flow & Head
- Max Flow: 7.5 m³/h
- Max Head: 55m

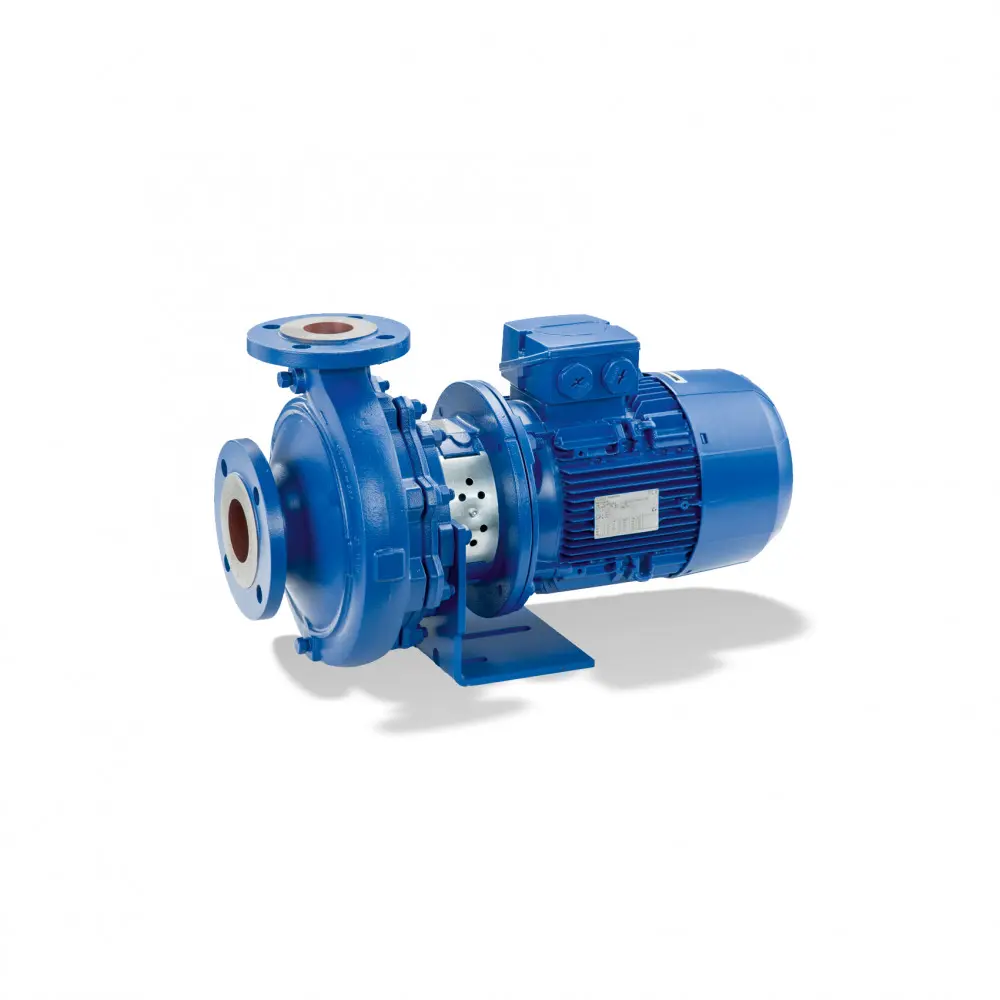

Etabloc
Single-stage close-coupled volute casing pump, with ratings to EN 733, with replaceable shaft sleeve and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Flow & Head
- Max Flow: 740 m³/h
- Max Head: 160m

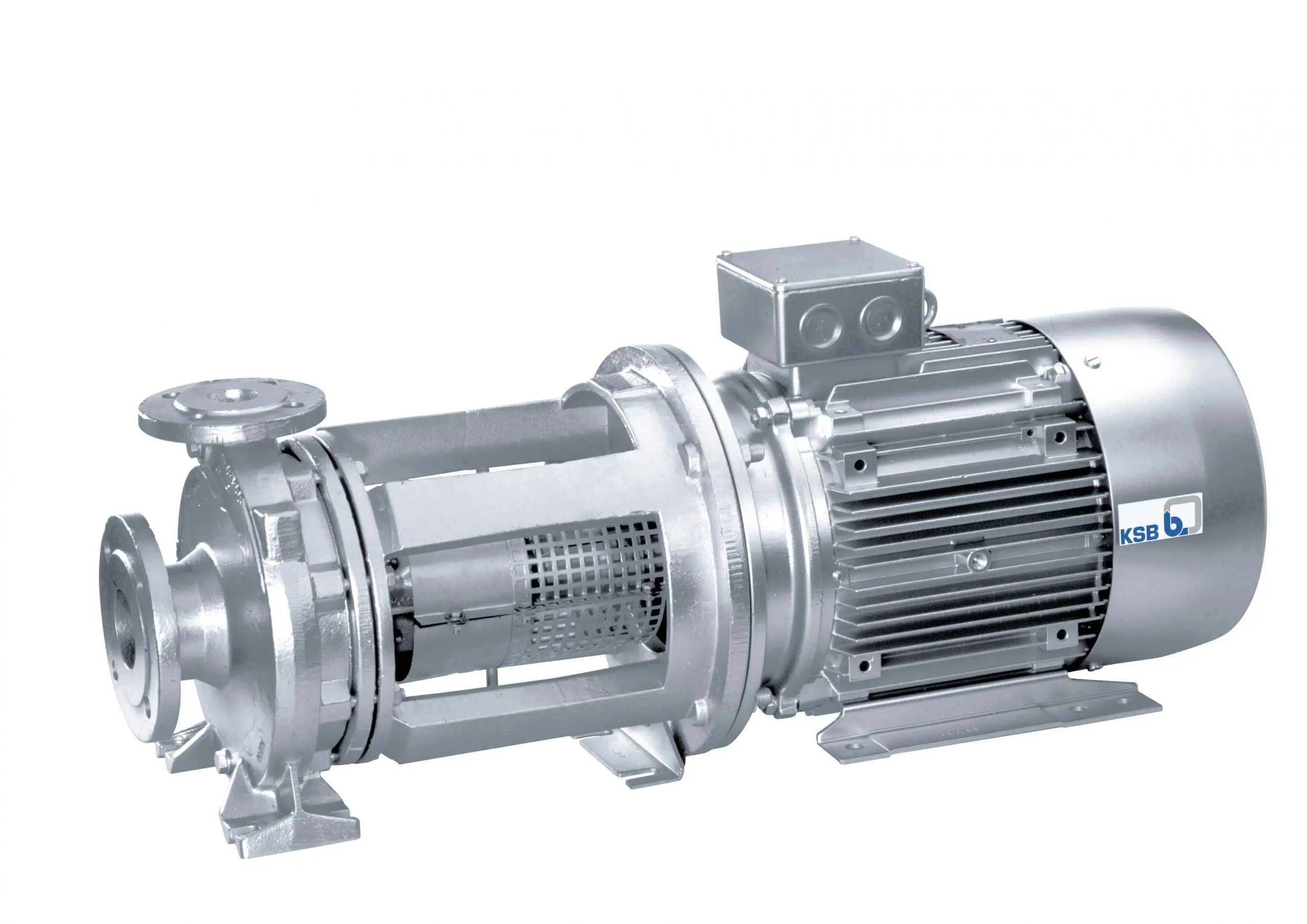

Etabloc SYT
This high temperature Etabloc pump is suitable for pumping high temperature liquids from 120°C and upward. This is a long coupled design with a back pull-out design meaning it can be easily maintained. This single-stage centrifugal pump uses KSB’s SuPremE motor which is in the IE4/IE5 efficiency class meaning the pump is rated to EN 733 standards.
Flow & Head
- Max Flow: 337M3/h
- Max Head: 99m
Etachrom B
Horizontal single-stage close-coupled annular casing pump, with ratings and main dimensions to EN 733, with replaceable casing wear rings and motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Flow & Head
- Max Flow: 260m3/h
- Max Head: 105m

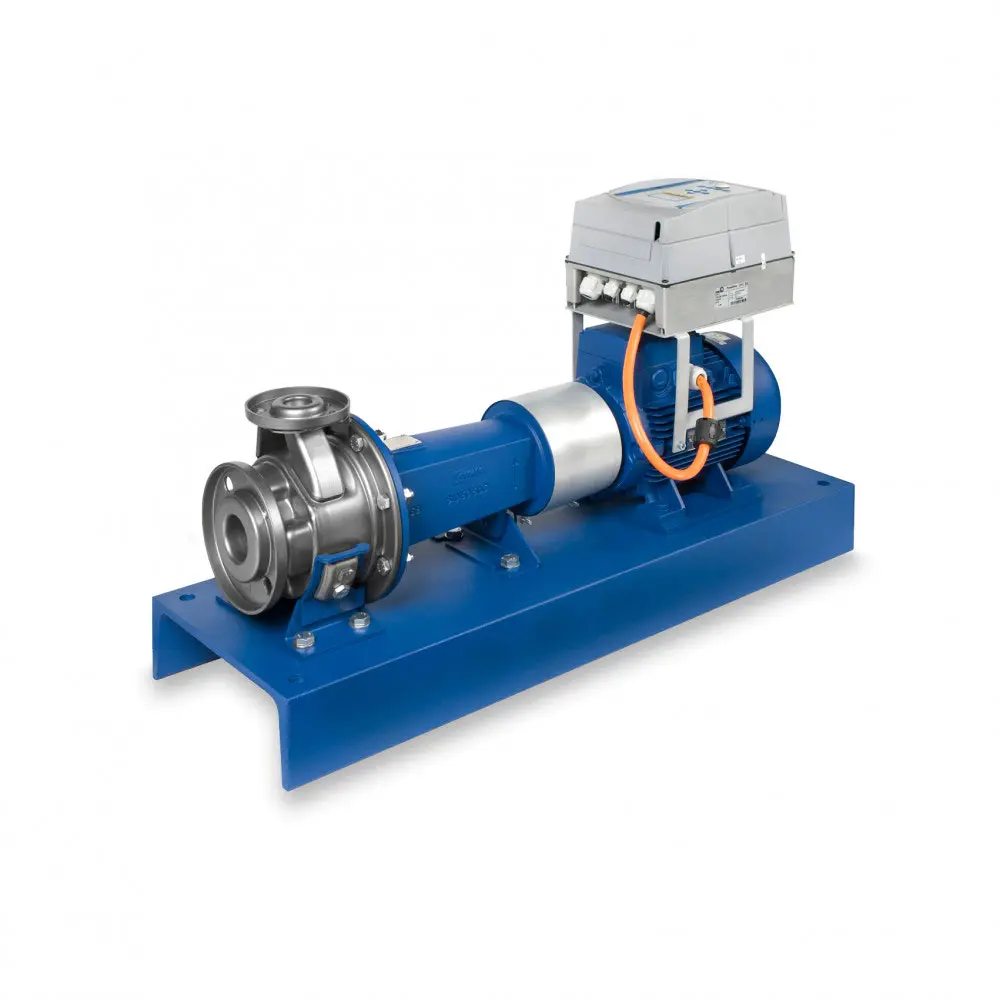

Etachrom L
Horizontal single-stage annular casing pump, with ratings and main dimensions to EN 733, with replaceable casing wear rings and motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Flow & Head
- Max Flow: 260m3/h
- Max Head: 105m

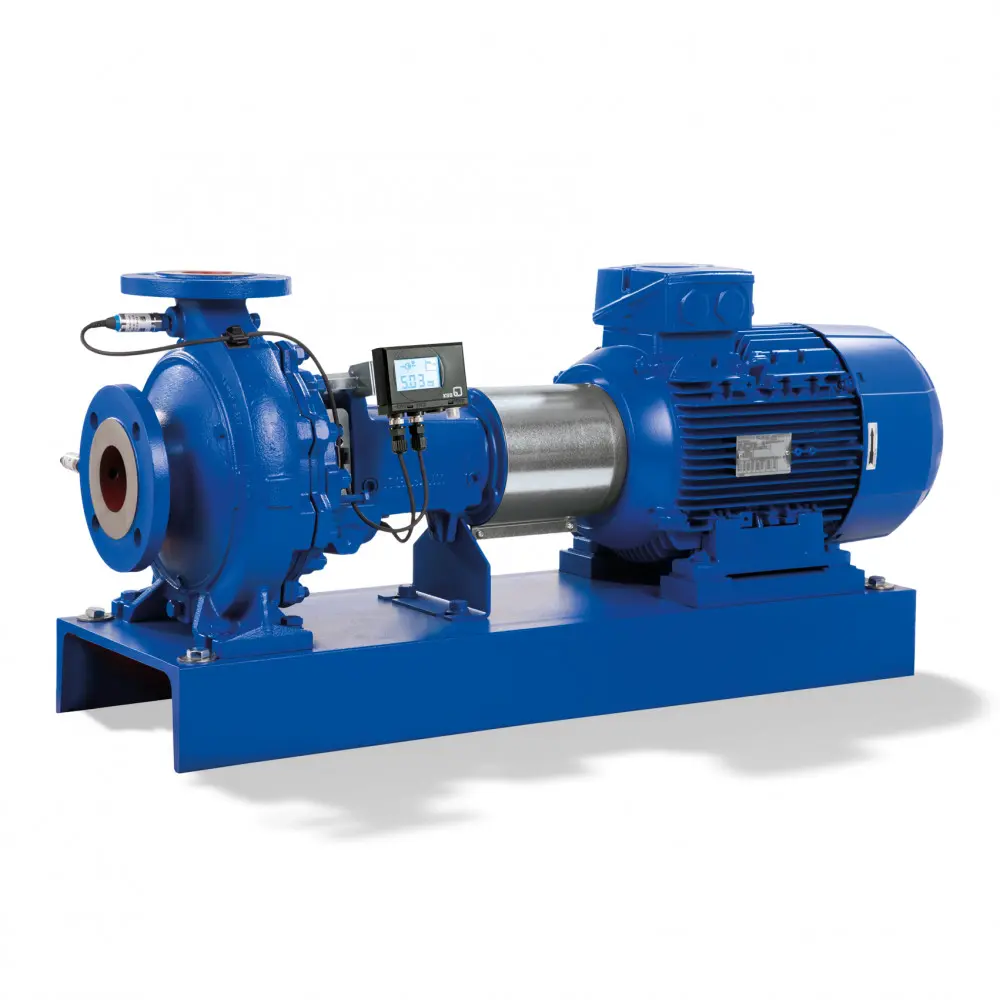

Etanorm
Horizontal volute casing pump, single-stage, with ratings and main dimensions to EN 733, long-coupled, back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Flow & Head
- Max Flow: 740m3/h
- Max Head: 160m

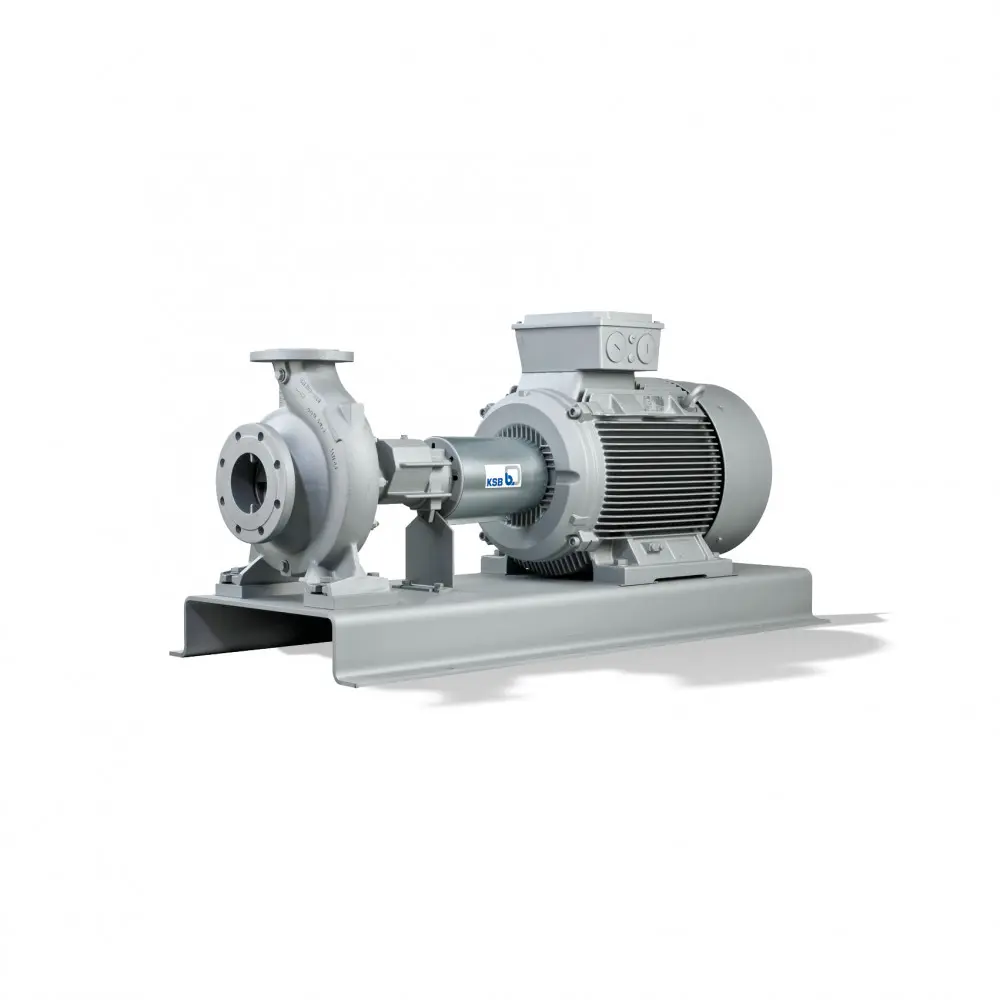

Etanorm SYT
This Etanorm horizontal volute casing pump is designed to pump high temperature liquids from 120°C and upward. It is a centrifugal pump what many different features such as the split volute casing, and a double mechanical seal to EN12756 standards. This pump is fitted with the KSB SuPremE magnetless motor meaning it is highly efficient and reliable. The pump is a variable speed system meeting the EN733 ratings.
Flow & Head
- Max Flow: 2280m3/h
- Max Head: 101m
Etanorm R
Horizontal long-coupled, single-stage (two-stage for pump size 125-500) volute casing pump in back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; ATEX-compliant version available.
Flow & Head
- Max Flow: 2285m3/h
- Max Head: 101m
Etanorm RSY
Horizontal volute casing pump in back pull-out design, single-stage, with ratings and dimensions to EN 733, radially split volute casing with integrally cast pump feet, replaceable casing wear rings, closed radial impeller with multiply curved vanes, single mechanical seal to EN 12756, double mechanical seal to EN 12756, drive-end bearings: rolling element bearings, pump-end bearings: plain bearings, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; ATEX-compliant version available.
Flow & Head
- Max Flow: 2285m3/h
- Max Head: 101m

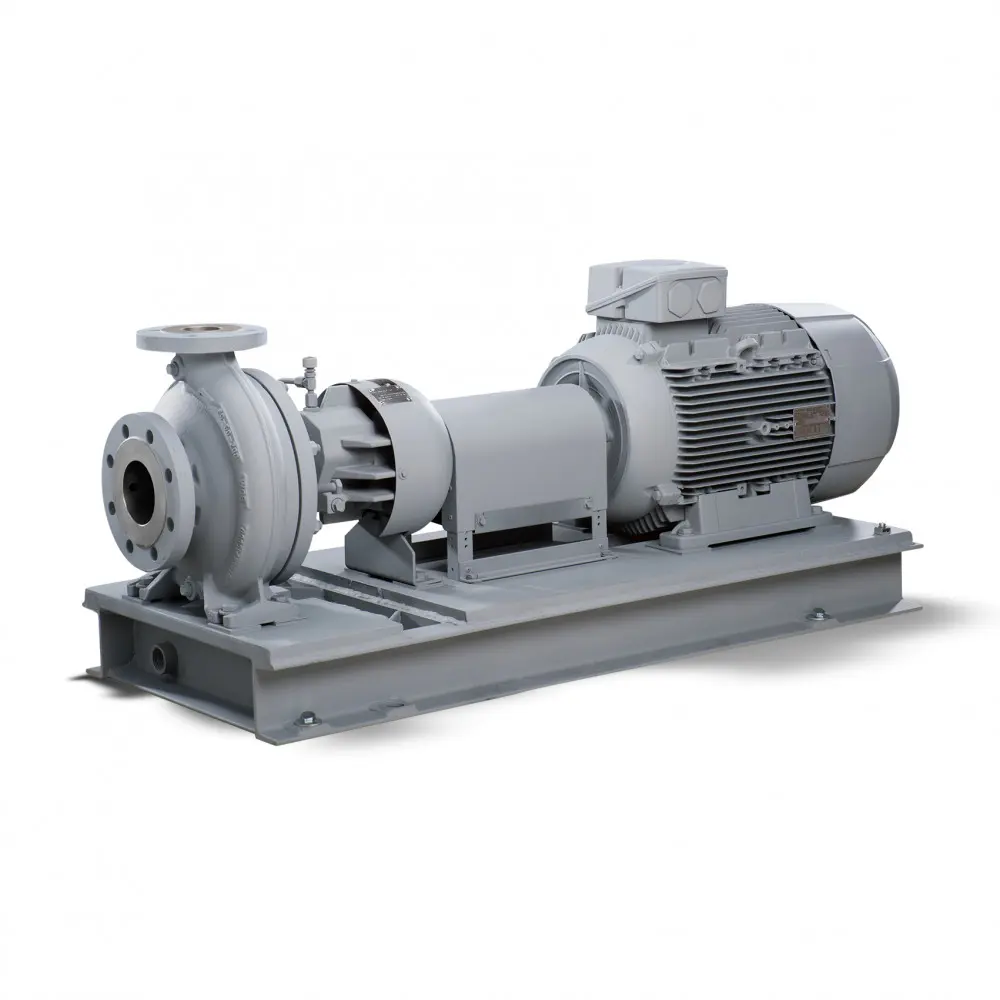

HPK-L
This is a horizontal centrifugal pump which is made to transport high temperature liquids around a system. It is made to work with liquid that is 120°C and upward. This pump is fitted with a heat barrier and seal chamber to reduce the heat that gets to the motor. The motor is cooled like most motors with a fan attached to the end of the shaft, this therefore means it needs no external cooling.
Flow & Head
- Max Flow: 1400m3/h
- Max Head: 400m
End suction pumps are the most widely used pump in the world and are simple, effective and reliable. In a standard set up water enters the pump via a horizontal pipe, goes through the impeller and – using centrifugal force – is flung out a vertical discharge.
End Suction Pumps are generally suited to transfer and high flow applications. Pressure can be limited as they typically only have one impeller. Multistages are available to overcome this. The most common uses include water, sewage, agriculture, petroleum and petrochemical pumping. Centrifugal pumps are often chosen for their high flow rate capabilities, abrasive solution compatibility, mixing potential, as well as their relatively simple engineering.
Typical use for these pumps are:
- Recirculation pumps
- Cooling water pumps
- Water transfer pumps
- Heating pumps
- Fire fighting
- General industrial pumps
- Process pumps
- High temperature applications up to 350 degrees C
- High energy efficiency
- Optimised hydraulic system yields high efficiency
- Impeller trimmed to match the specified duty point
- Suitable for variable-speed operation in combination / Easy to service Replaceable wear rings and straightforward dismantling of bearing bracketwith IE3 and KSB SuPremE® IE5 motor*as standard/ Versatile
- Also available in close-coupled and in-line design.
- Hydraulic test run to ISO 9906 2B, 3B or 2U available
- NEMA motors available
- Flange can either be selected to EN or ASME as standard
