Ebara – Submersible Pumps

Optima

AISI 304 stainless steel submersible pump with mechanical seal in oil bath and oversized oil chamber. These features make the pump reliable, durable and corrosion-resistant. The Optima electric pump has great versatility of installation (fixed or mobile) due to the possibility of choosing between the vertical magnetic float switch (of reduced size) or the float switch.

Specification

• Solids passage max: 10 mm

Flow & Head

• Max Flow: 9 m³/h
• Max Head: 7.6 m max liquid temperature +50°C

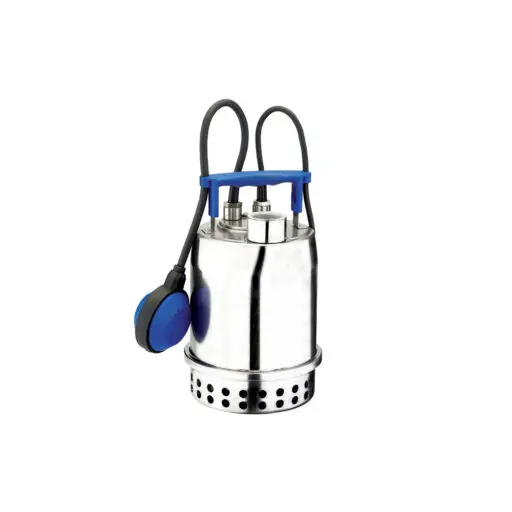

Best One – Vox

AISI 304 stainless steel submersible pump with mechanical seal in ceramic/carbon/NBR and oversized oil chamber that increases the life and reliability of the pump. The Best One has a semi-open impeller, while Best One Vox is equipped with a Vortex type impeller to ensure a greater free passage and reduce the possibility of clogging.

Specification

• Solids passage max: 20 mm

Flow & Head

• Max Flow: 9m³/h
• Max Head: 7.6 m max liquid temperature +50°C

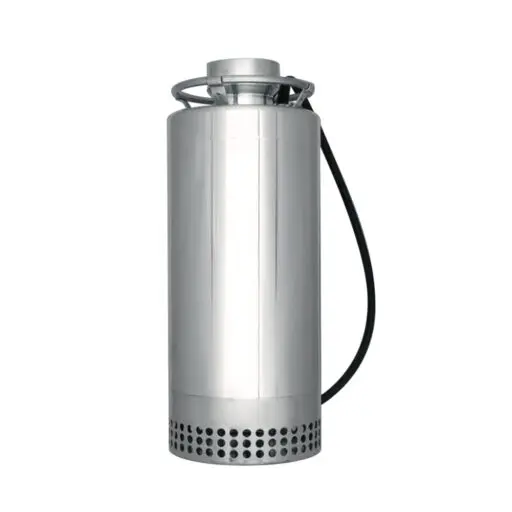

DEMINY

This submersible pump utilises an oil bath motor for cooling and lubrication of the bearings and a double mechanical seal, oil bath (motor side) and water bath (pump side). The sturdy structure of the DEMINY electric pump makes it extremely versatile.

Specification

Solids passage max: 10 mm

Flow & Head

• Max Flow: 54 m³/h
• Max Head: 18.5 m max liquid temperature +35°C

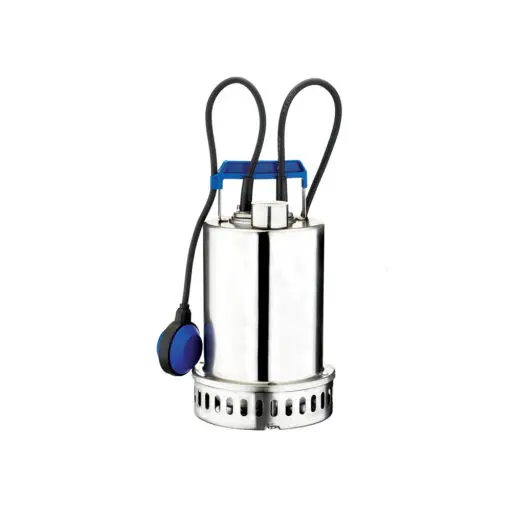

Best 2-5

Submersible pump made entirely of AISI 304 stainless steel with a double mechanical seal in oil chamber. Also available with float switch. Possibility of fixed or mobile installation and suitable for domestic applications and large industrial drainage installations.

Specification

Solids passage max: 10 mm

Flow & Head

• Max Flow: 21.6 m³/h
• Max Head: 18.4m max liquid temperature +35°C

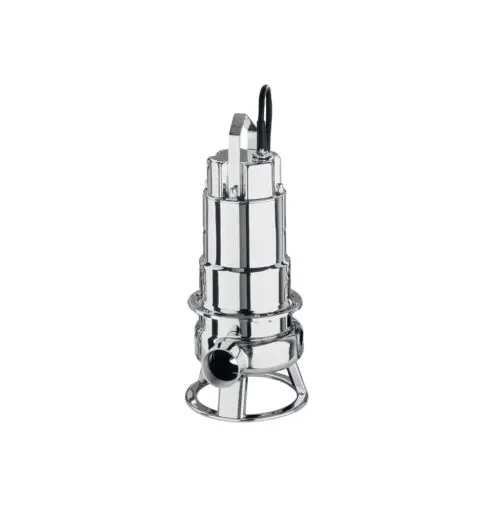

DW – DW VOX

AISI 304 stainless steel submersible pump and single-channel impeller (DW) or Vortex impeller (DW VOX) for fixed and mobile installations. The DW – DW VOX electric pump has two versions for connection to pipes, either in the threaded version or the flanged version.

Specification

Available in Threaded(DW) or Flanged (DW VOX) Solids passage max: 50 mm

Flow & Head

• Max Flow: 54 m³/h
• Max Head: 20 m Max Liquid temperature +40°C

DAR

This submersible pump comes with Vortex or dual-channel hydraulics and impeller but is also available with float switch. Its peculiarity is the wide free passage, which is the same as the discharge diameter (can be 50 or 65 mm depending on the model).

Specification

• Solids passage max: 65 mm

Flow & Head

• Max Flow: 42 m³/h
• Max Head: 10 m max liquid temperature +35°C

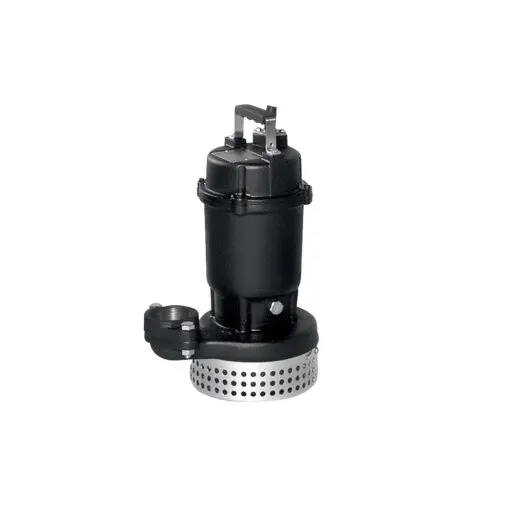

DS – DSF

Submersible pump with a semi-open impeller with cast-iron shim and anti-clogging filters that provide high efficiency. The thermo protector is supplied as standard in the range and the double mechanical seal with oil chamber prevent damage from dry running.

Specification

• Solids passage max: 8 mm

Flow & Head

• Max Flow: 84 m³/h
• Max Head: 43 m max liquid temperature +40°C

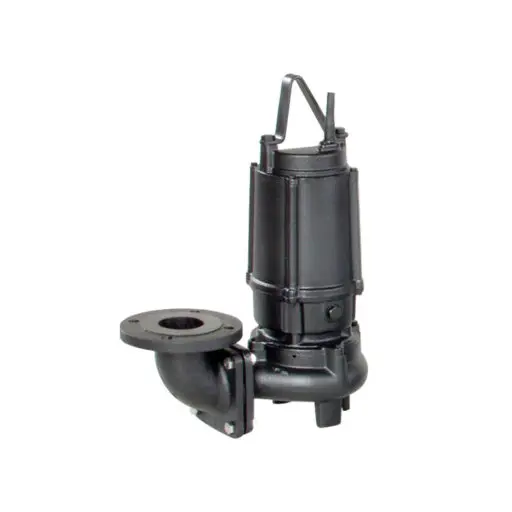

DVS

Submersible pump with cast-iron anti-clogging semi-vortex impeller capable of pumping of foreign bodies up to 70% of the discharge outlet’s diameter while retaining ease of maintenance. The DVS electric pump is only available in a three-phase version and can be used in fixed and mobile installations.

Specification

• Solids passage max: 41 mm

Flow & Head

• Max Flow: 60 m³/h
• Max Head: 23 m max liquid temperature +40°C

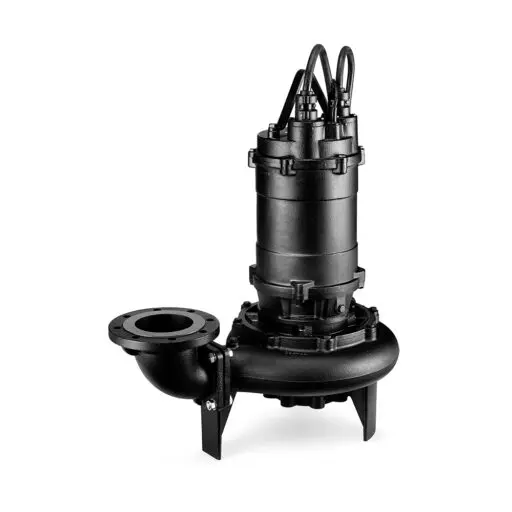

DML – DLMF

Cast-iron submersible pump with a single-channel impeller that allows a free passage up to 76 mm, usable in fixed and mobile installations. The DML – DMLF electric pumps stand out for their sturdiness and resistance and are ideal for large applications and heavy-duty use.

Specification

• Solids passage max: 76 mm

Flow & Head

• Max Flow: 330 m³/h
• Max Head: 38.5 m max liquid temperature +40°C

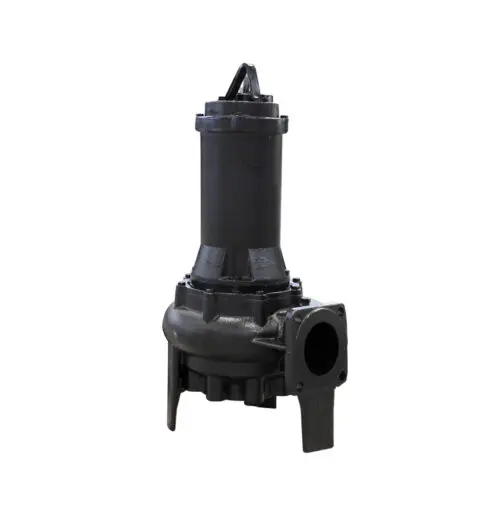

DMLV – DMLVF

Cast-iron submersible pump with vortex impeller that facilitates the passage of solids and prevents clogging, usable in fixed and mobile installations. DMLV – DMLVF electric pumps are advanced technological solutions that provide high-level performance, especially in heavy-duty applications.

Specification

• Solids passage max: 100 mm

Flow & Head

• Max Flow: 200 m³/h
• Max Head: 41.3 m max liquid temperature +40°C

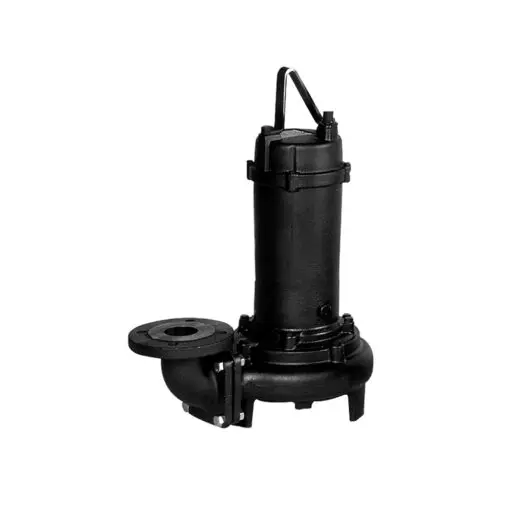

DL

The DL W/C is a cast-iron submersible pump with a single-channel open impeller with cutter and semi-open anti-clogging impeller, designed to prevent the pump from clogging to offer maximum efficiency. The DL W/C electric pumps offer a wide range of powers up to 45 kW, different discharge diameters and can be used in fixed and mobile installations.

Specification

• Solids passage max: 90 mm

Flow & Head

• Max Flow: 780 m³/h
• Max Head: 43.5 m max liquid temperature +40°C

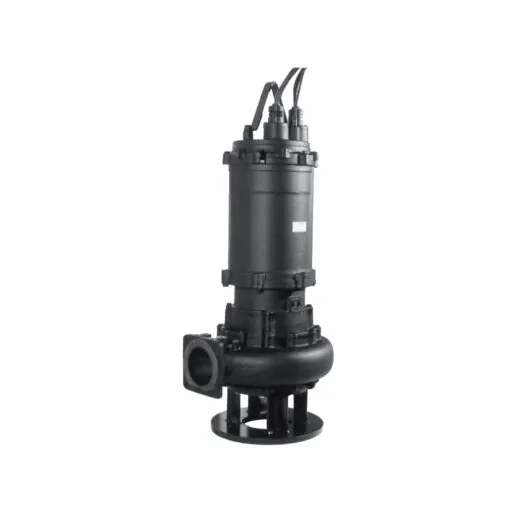

DL W/C

The DL W/C is a cast-iron submersible pump with a single-channel open impeller with cutter and semi-open anti-clogging impeller, designed to prevent the pump from clogging to offer maximum efficiency. The DL W/C electric pumps offer a wide range of powers up to 45 kW, different discharge diameters and can be used in fixed and mobile installations.

Specification

• Solids passage max: 60 mm

Flow & Head

• Max Flow: 150 m³/h
• Max Head: 20.2 m max liquid temperature +40°C

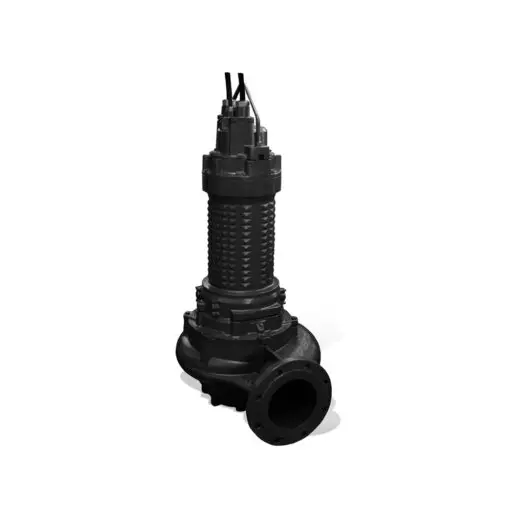

DRD

This cast-iron submersible pump has a channel impeller (either two-channel or three-channel). The DRD electric pumps have good hydraulic efficiency and can be used in fixed and mobile installations.

Specification

• Solids passage max: 140 mm

Flow & Head

• Max Flow: 1800 m³/h
• Max Head: 47 m max liquid temperature +40°C

DRS

This is a cast-iron submersible pump that is equipped with an impeller and grinder device. This allows the pump to work with solids in the sewage, including filamentary bodies, pieces of paper, and pieces of textile material.

Specification

• Solids passage max: 10 mm

Flow & Head

• Max Flow: 60 m³/h
• Max Head: 72 m max liquid temperature +40°C
