This Flygt Chopper Pump range of submersible pumps is made to be robust and reliable and to work in the most demanding environments. They are made with very powerful and dependable impellers.
- Cuts tough solids
- Sustained high efficiency
- State-of-the-art N-technology
- Fewer unplanned service calls
F3000 Chopper Pump Range

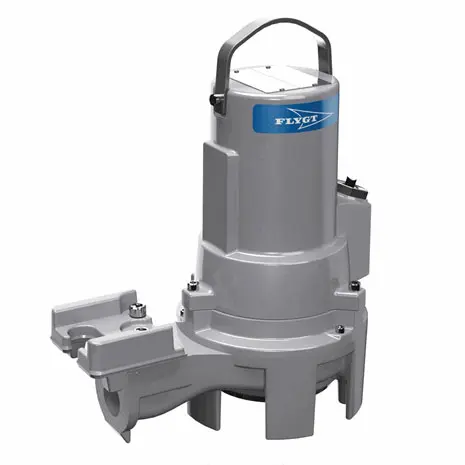

F3069
The F3069 is a small Chopper Pump specifically designed for pumping liquid manure.It’s engineered to work in demanding environments and is robust and reliable. This design of pump is made to chop up the debris that is needed to be pumped away.
Flow & Head
- Max Flow: 9l/s
- Max Head: 14m
- Max Liquid temperature 40°C

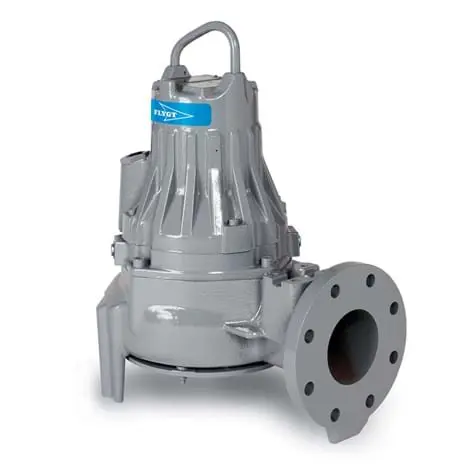

F3085
This F3085 pump is made of cast iron which makes it very robust and durable to last for a long time. Being a cutter pump it is able to chop up any waste or debris that it comes across meaning the chance of the pump blocking is reduced significantly.
Flow & Head
- Max Flow: 26l/s
- Max Head: 10.5m
- Max Liquid temperature 40°C

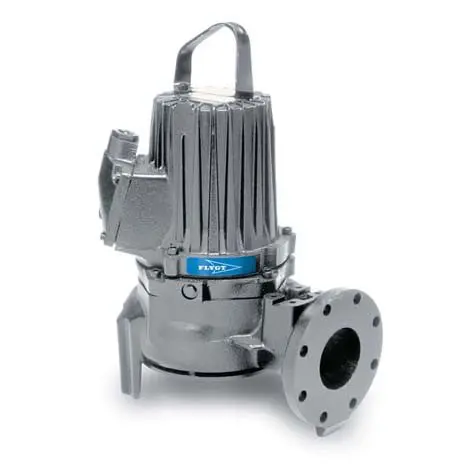

F3102
The Submersible Flygt F3102 has a short stainless steel shaft overhang which reduces shaft deflection and increases seal and bearing life. It also gives the shaft maximum strength and corrosive resistance. It also comes with the Subcab submersible cable for long life sitting in the sewage.
Flow & Head
- Max Flow: 30l/s
- Max Head: 13m
- Max Liquid temperature 40°C

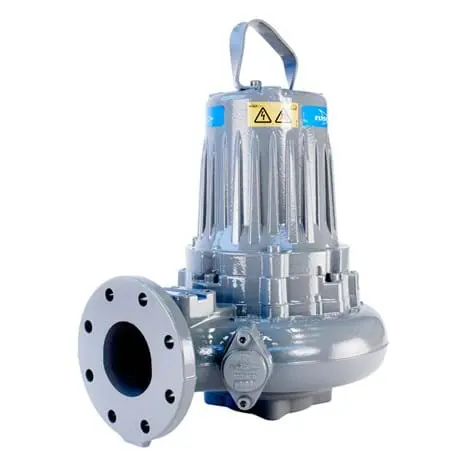

F3127
The F3127 pump has an Flygt N-impeller, which rotates inside a chopper insert ring. This would therefore cut all solid debris that may need to be pumped away. Having a chopper pump will therefore reduce your blockages and pump failures.
Flow & Head
- Max Flow: 65l/s
- Max Head: 37m
- Max Liquid temperature 40°C
F3153
This F3153 pump transports any tough solids without getting blocked which reduces the maintenance and operation costs. This pump is made to be highly efficient and is made to reduce the amount of call outs. These pumps are made to be robust and reliable and cut through tough solids.
Flow & Head
- Max Flow: 110l/s
- Max Head: 56m
- Max Liquid temperature 40°C
F3171
The Flygt F3171 is engineered for long life with long lasting parts. The pump motor can be used in both submersible and non-submersible applications without overheating. The cable is also made to be long lasting and durable enabling it to last when sitting in sewage.
Flow & Head
- Max Flow: 140l/s
- Max Head: 70m
- Max Liquid temperature 40°C

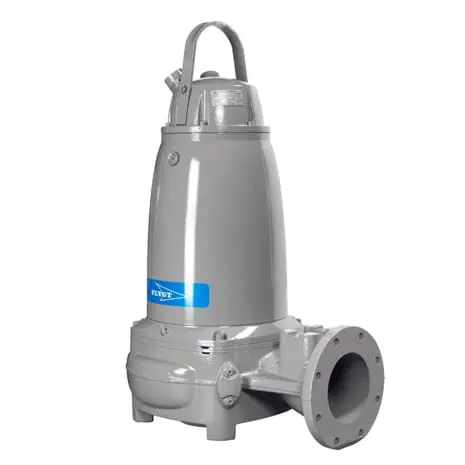

F3202
This Flygt F3202 pump is a chopper pump meaning the chance of it blocking are significantly reduced. This chopper pump therefore cuts up all the hard to pump solids that are in with the sewage. It has a short shaft which reduces the shaft deflection and increases the seal and bearing life.
Flow & Head
- Max Flow: 26l/s
- Max Head: 10.5m
- Max Liquid temperature 40°C
The Flygt Vortex range of submersible pumps is made to work in demanding environments where the sewage or waste water may include debris that is needed to be shifter without blocking up the pump.
Let’s Talk Pressure, we understand that every facility has unique demands. speak with a system expert today and get a recommendation built around your environment.
