A submersible pump is a self-contained unit with a built-in sealed motor, which pumps effectively when completely submerged in fluid. Submersible pumps are used in a variety of applications including sewage and drainage.
- Sewage Pumps
- Drainage Pumps
- High Pressure & Mixers
- High quality & efficient range
KSB Submersible and Sump Pumps Range
Ama – Drainer
The all new AmaDrainer is a vertical single-stage fully floodable submersible motor pump in close-coupled design. This pump comes with an integrated level control switch for automatic control. These pumps have a maximum immersion depth of 2 meters.
Flow & Head
- Max Flow: 16.5m3/h,
- Max Head: 12m
Ama – Drainer 4 -5
Vertical single-stage fully floodable submersible motor pumps in close-coupled design, IP68, with or without level control, max. immersion depth: 7 m.
Flow & Head
- Max Flow: 130 m3/h
- Max Head: 26m
Ama – Drainer 80/100
Vertical single-stage fully floodable submersible motor pump in close-coupled design, IP68, with or without level control, max. immersion depth: 10 m.
Flow & Head
- Max Flow: 130m3/h,
- Max Head: 26m
Ama – Porter
Vertical single-stage fully floodable submersible waste water pump in close-coupled design (grey cast iron variant), non-explosion-proof.
Flow & Head
- Max Flow: 40m3/h,
- Max Head: 21m

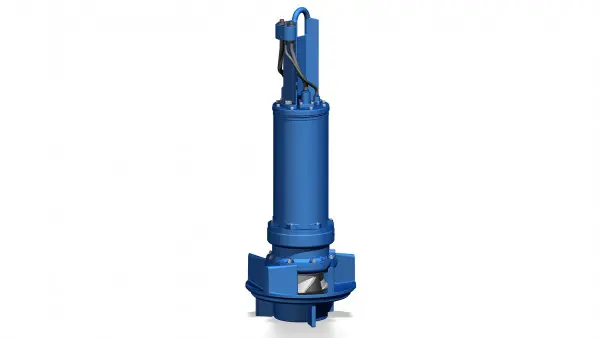

Amacan – K
Wet-installed submersible motor pump for installation in discharge tubes, with channel impeller, single-stage, single-entry. ATEX-compliant version available.
Flow & Head
- Max Flow: 7200m3/h
- Max Head: 30m
Amacan – P
Wet-installed submersible motor pump for installation in discharge tubes, with axial propeller in ECB design, single-stage, single-entry. ATEX-compliant version available.
Flow & Head
- Max Flow: 25200m3/h,
- Max Head: 12m
Amacan – S
Wet-installed submersible motor pump for installation in discharge tubes, with mixed flow impeller, single-stage. ATEX-compliant version available.
Flow & Head
- Max Flow: 10080m3/h,
- Max Head: 40m

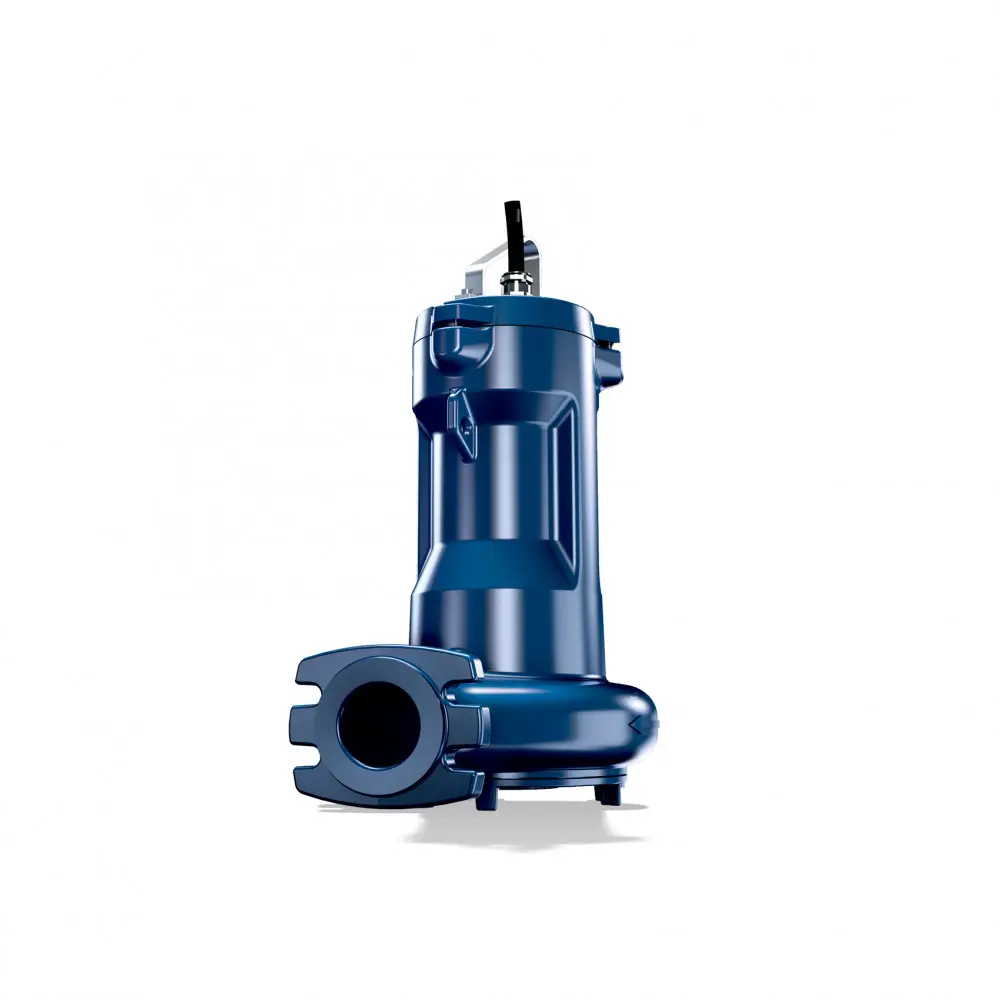

Amarex
Vertical single-stage submersible motor pump for wet installation, with free-flow impeller (F-max) or open dual-vane impeller (D-max), stationary or transportable version. Single-stage, single-entry close-coupled pump sets which are not self-priming. ATEX-compliant version available.
Flow & Head
- Max Flow: 330m3/h,
- Max Head: 40m
Amaline
Wet-installed horizontal propeller pump with submersible motor, equipped with direct drive or spur gear, ECB propeller with rigid, fibre-repellent blades, bolt-free connection to the discharge pipe. Explosion-proof version available.
Flow & Head
- Max Flow: 6700m3/h,
- Max Head: 3.5m
Innovative and high-efficiency waste water disposal – that is what KSB stands for
Waste water pumps from KSB feature efficient drives, non-clogging impellers and wear-resistant materials. The materials developed in KSB’s materials laboratory are capable of withstanding corrosive and abrasive waste water with a high solids content. Durable components capable of providing decades of reliable service under the harshest conditions are essential for keeping costs down for waste water transport in the long term.
With a wide range of different waste water pump designs, KSB is capable of supplying the right product for every system requirement. The Amarex KRT submersible pump and the Sewatec dry-installed waste water pump, for instance, are designed with non-clogging impellers and large free passages to ensure that even highly solids-laden waste water is handled efficiently. The Amajet system can be employed wherever tanks and storage sewers require cost-efficient cleaning. The portfolio is complemented by reliable valves such as the HERA-BDS knife gate valve which can be used to shut off pipes during maintenance work.
In addition, KSB’s application specialists are available to support consultants, engineering contractors and operators with a comprehensive range of engineering services such as computational fluid dynamics analyses (CFD). In the run-up to the project, model tests offered by KSB can help optimise system characteristics such as inlet conditions or flow velocity in the intake chamber. KSB Helps and KSB EasySelect are intelligent software solutions that enable optimum pump selection.
To complete this comprehensive portfolio, KSB offers extensive experience with large-scale projects gained over decades on the market. Proof for this expertise can be found in Europe’s deepest waste water pumping station in Saint Petersburg which uses efficient waste water pumps from KSB.
Technical Support 01604 648 800 [email protected]
- Pumps, valves and spare parts
- Fast and efficient procurement
- Personal online business cockpit
KSB offers a wide range of products for waste water disposal
- Dry-installed waste water pumps
- Drainage and waste water pumps
- In-line pumps
- Mixers / agitators / tank-cleaning units
- Tubular casing pumps
- Submersible motor pumps
Applications include
- Sewage and waste water disposal
- Waste water transport
- Sewage lifting stations
- Tank cleaning
- Fire fighting
- Pumped drainage
- Drainage
- Pumping stations
- Stormwater relief structures
- Waste water lifting stations
KSB ensures smooth processes thanks to its many years of experience in waste water technology. Whether it is waste water transport, waste water treatment, waste water disposal or flood control, whether domestic, municipal or industrial waste water. They are used in sewage treatment plants, industrial waste water treatment, waste water lifting units, sludge dewatering, municipal drainage and waste water pumping stations.
Let’s Talk Pressure, we understand that every facility has unique demands. speak with a system expert today and get a recommendation built around your environment.
