Submersible Pumps
What is an industrial Submersible Pump? Commercial sump pumps are a type of pump that operates while fully submerged in water or other liquids.
Choosing Dura Pump means investing in reliability and safety for your facility. Talk to an expert about your needs
Get in touchWater enters the pump directly through the volute, typically located at the base. A submersible pump is also commonly referred to as sub pumps or sump pumps. They are designed with a water-tight seal around the body and motor, allowing them to function underwater without damage.
Sump pumps are widely used in applications involving wastewater, stormwater and effluent. There are different types of dirty water pumps to suit various fluids and operational needs. Choosing the correct type is critical for long-term reliability and optimal efficiency. See the options below:

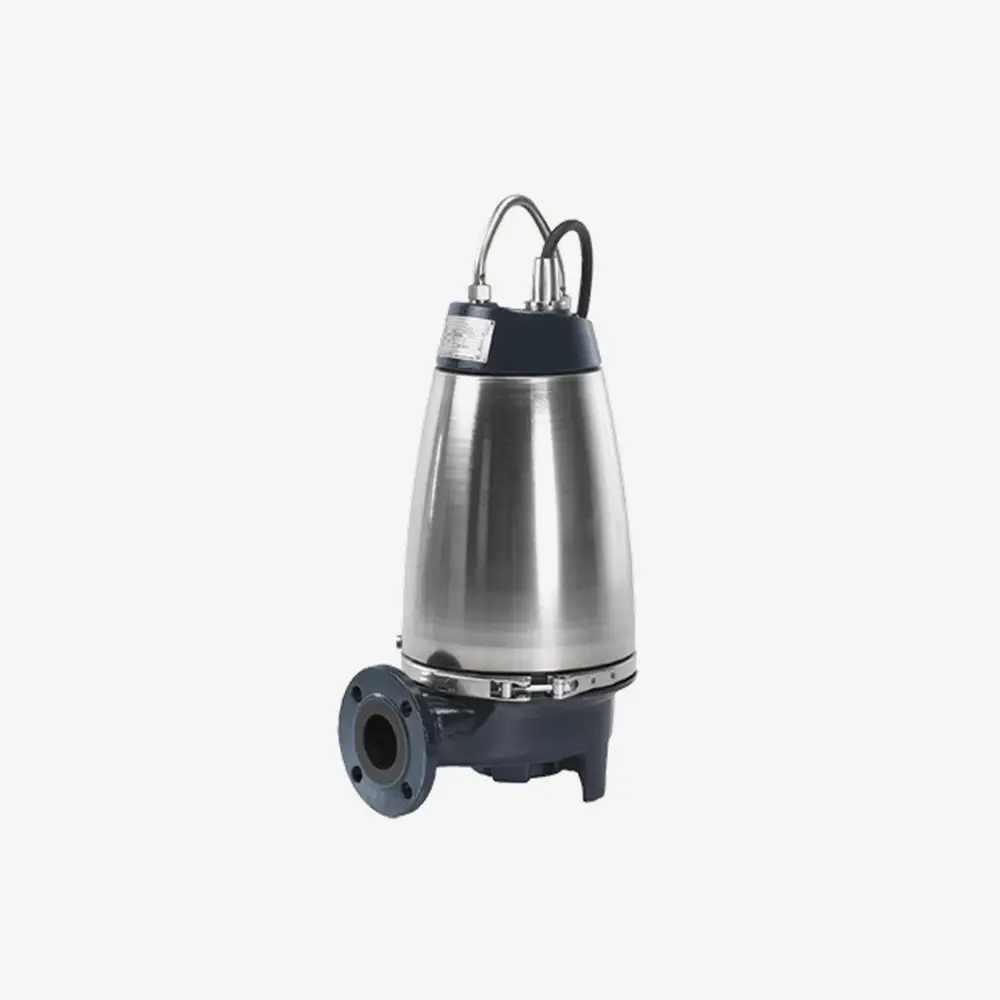

Vortex Submersible Pumps
Vortex Impeller submersible pumps are self-contained units featuring a sealed motor and a vortex impeller. The impeller creates a whirlpool effect that enables efficient pumping when fully submerged.
- Large clear passage
- Excellent solid-handling capacity
- Significantly reduces blockages
- Common uses: Sewage, foul water, effluent, stormwater and drainage.

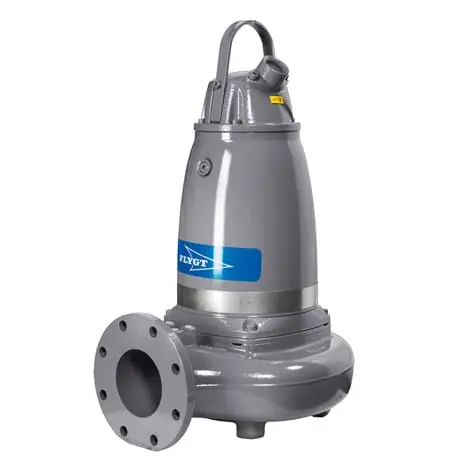

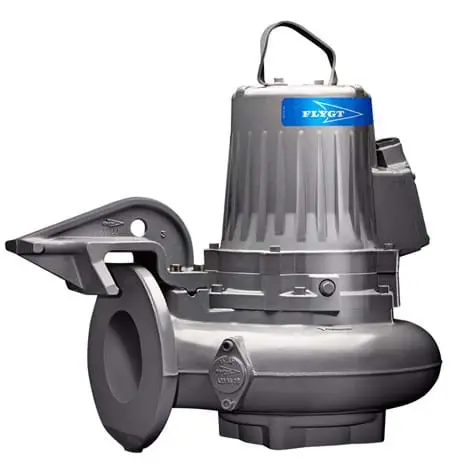

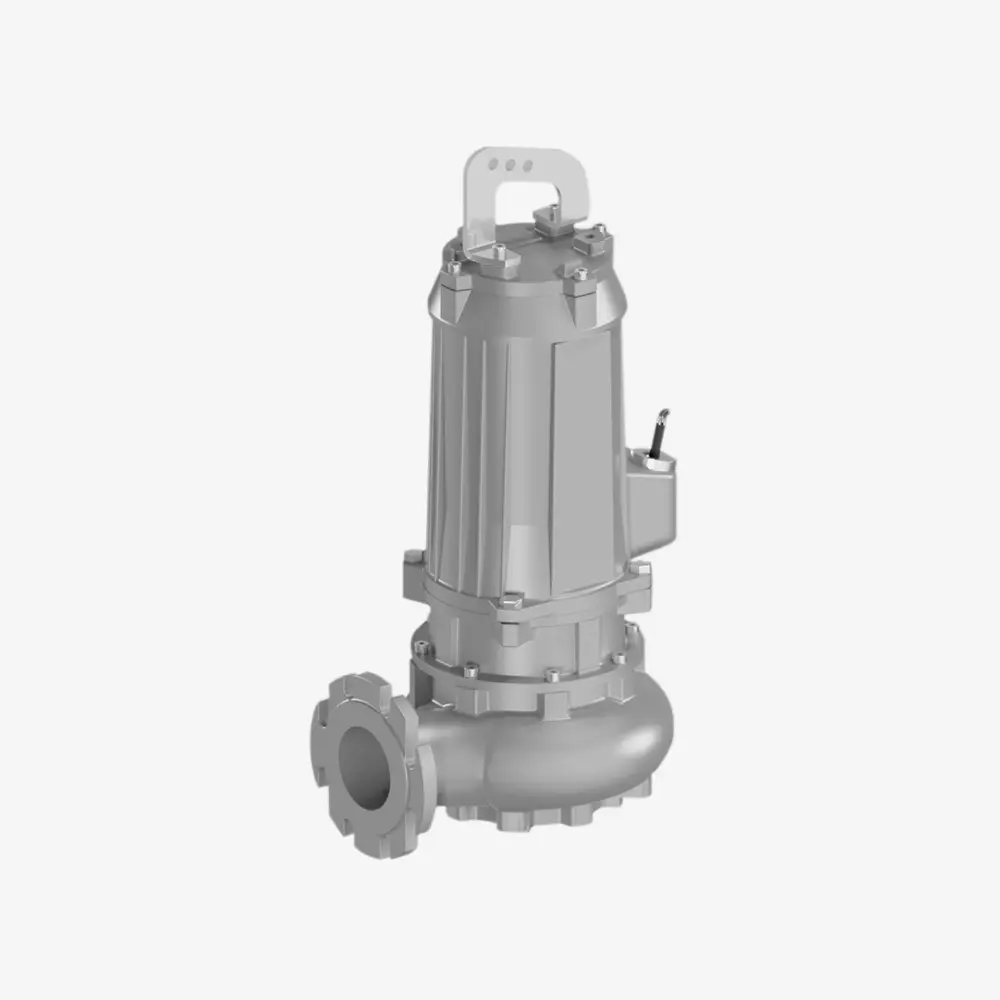

Channel Submersible Pumps
Channel Impeller submersible pumps work by allowing liquid to pass directly through the impeller. Although they have a smaller clear passage than vortex pumps, they offer greater efficiency, making them ideal for applications with lower solids content.
- Can include multiple channels of varying sizes
- Allows passage of impurities up to a certain size
- May clog with fibrous impurities
- Efficiency levels up to 80–85%
- Common uses: Stormwater, grey water, and drainage.

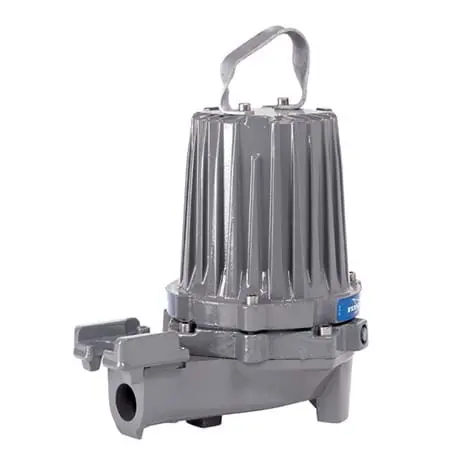

Grinder/Cutter Submersible Pump
Grinder and cutter submersible pumps are centrifugal pumps equipped with cutting systems at the inlet. These systems break down larger particles and fibrous material into a manageable slurry. Grinder pumps are suited for systems with smaller pipe diameters and low flow, while cutter pumps are ideal for demanding applications with high solids and fibres.
- Greatly reduces clogging risk
- Suitable for small pipe diameters
- Requires ongoing maintenance and spares
- Common uses: Sewage, foul water and effluent.

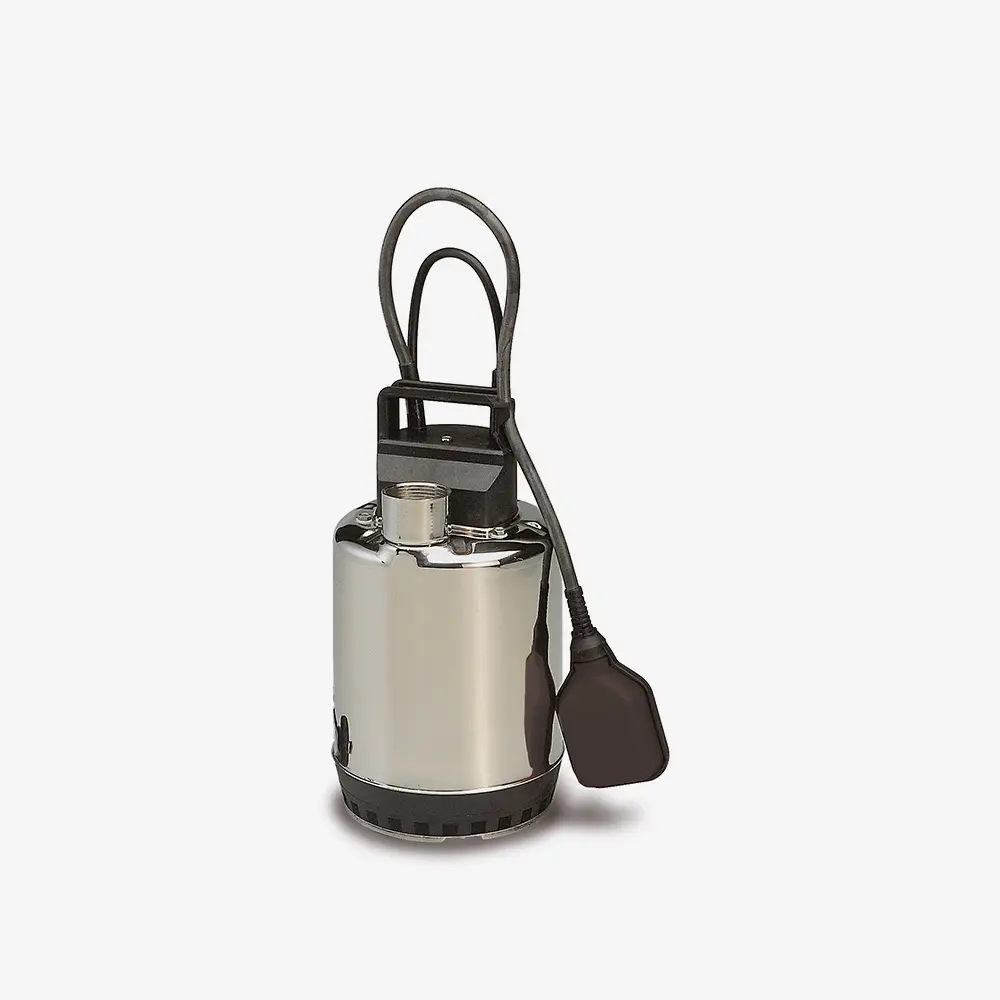

Sump Pumps
Sump pumps are small submersible pumps, perfect for the emptying of sump pits, rainwater tanks and emergency de-watering & drainage of basements and cellars. Suited for domestic and light commercial use.
- Inbuilt magnetic float switch option
- Standard float switch option
- Level probe option
- Manual option – no float fitted.
Submersible pump features/what we can offer
- High flow and pressure range
- Standard sizes from 0 to 500l/sec
- Standard sizes from 0.25kw to 55kw
- Standard pressure range 0 to 40 bar
- Stainless Steel – Options Available
- Repairs, overhauls and replacements
- Pumps stool and connections
- Controls fault finding
- Servicing and inspections.
Applications
- Effluent and Sewage
- Waste Water Process
- Storm/run off water
- Flood protection
Common issues we can solve
Let’s Talk Pressure, we understand that every facility has unique demands. speak with a system expert today and get a recommendation built around your environment.
Our Manufacturers Brands
Take a look at our pump spares and accessories
Beacon & Alert Systems
Float Switch/Level Control
Flow Meters
Mechanical Seals
Pump Spares
GMS Remote Monitoring
Control panels
Related Case Studies
Effective Waste Management System Introduced at High-Security Correctional Facility
Read more
Dura Pump solution delivers energy savings, zero blockages and zero downtime.
Read more

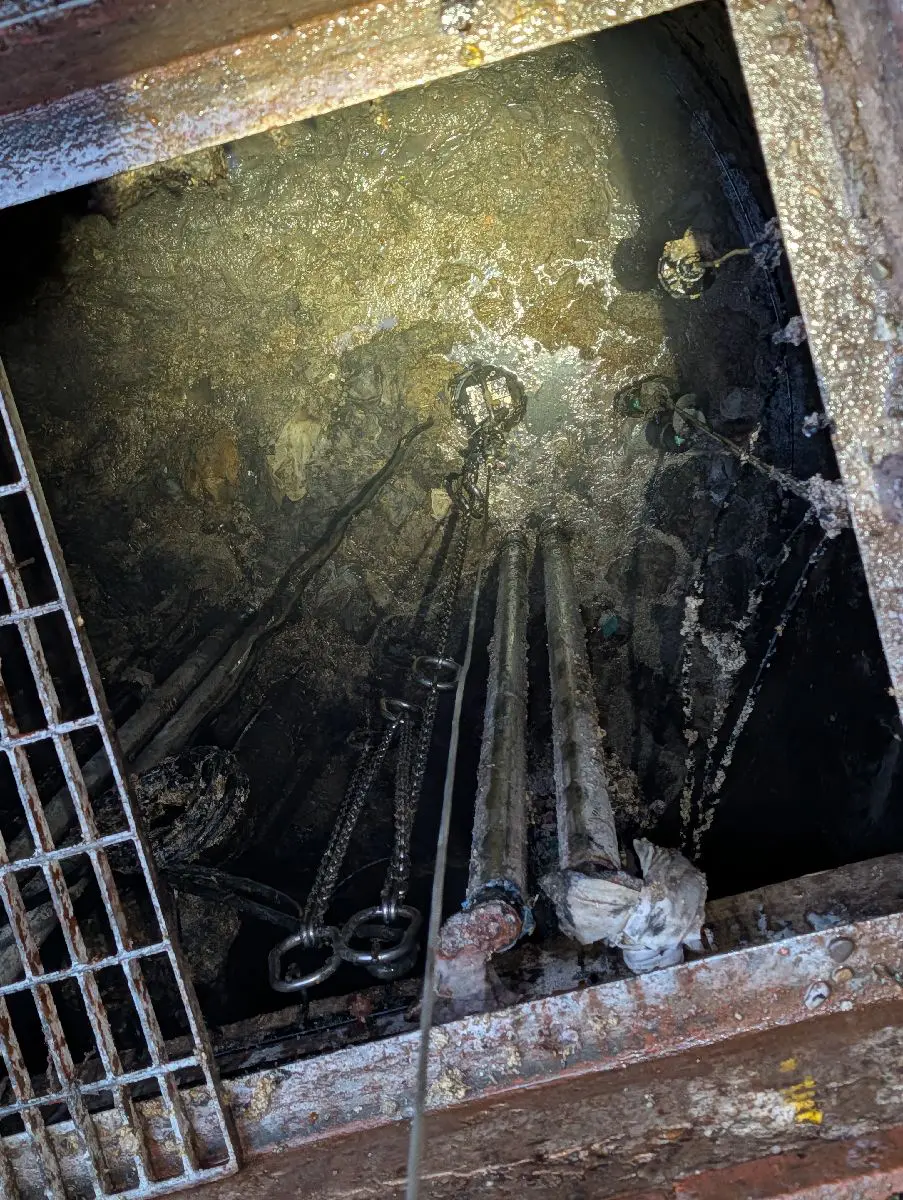

Tackling Costly Sewage Pumping Issues at a Large NHS Hospital
Read more
Reinforcing Reliability: HM Prison Upgrades Sewage Pumps for Optimal Performance
Read more
Effective Waste Management System Introduced at High-Security Correctional Facility
Read more
Velocity Sentinam, Multiple Pump Station Overhauls for University Campus
Read more
A Modern Makeover Undermined by Ageing Infrastructure
Read more
Dura Pump solution delivers energy savings, zero blockages and zero downtime.
Read more
Tackling Costly Sewage Pumping Issues at a Large Midlands NHS Hospital
Read more
Dura Pump Revives Critical Infrastructure for Racecourse Reopening
Read more
Tackling Costly Sewage Pumping Issues at a Large NHS Hospital
Read more
Tackling Costly Sewage Blockages at a Category B Men’s Prison
Read more
HM Prison Upgrades Pump Plant for Reopened Wing.
Read more
Reinforcing Reliability: HM Prison Upgrades Sewage Pumps for Optimal Performance
Read more
Major Repair for Hospital Pump Station
Read more

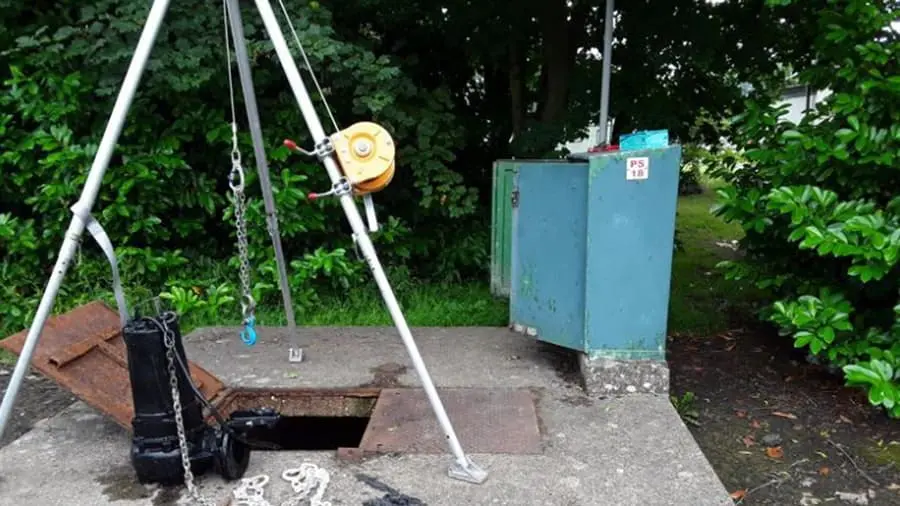

Leisure Parks Waste Water Saved
Read more
Muffin Monster Repair for HM Prison
Read more

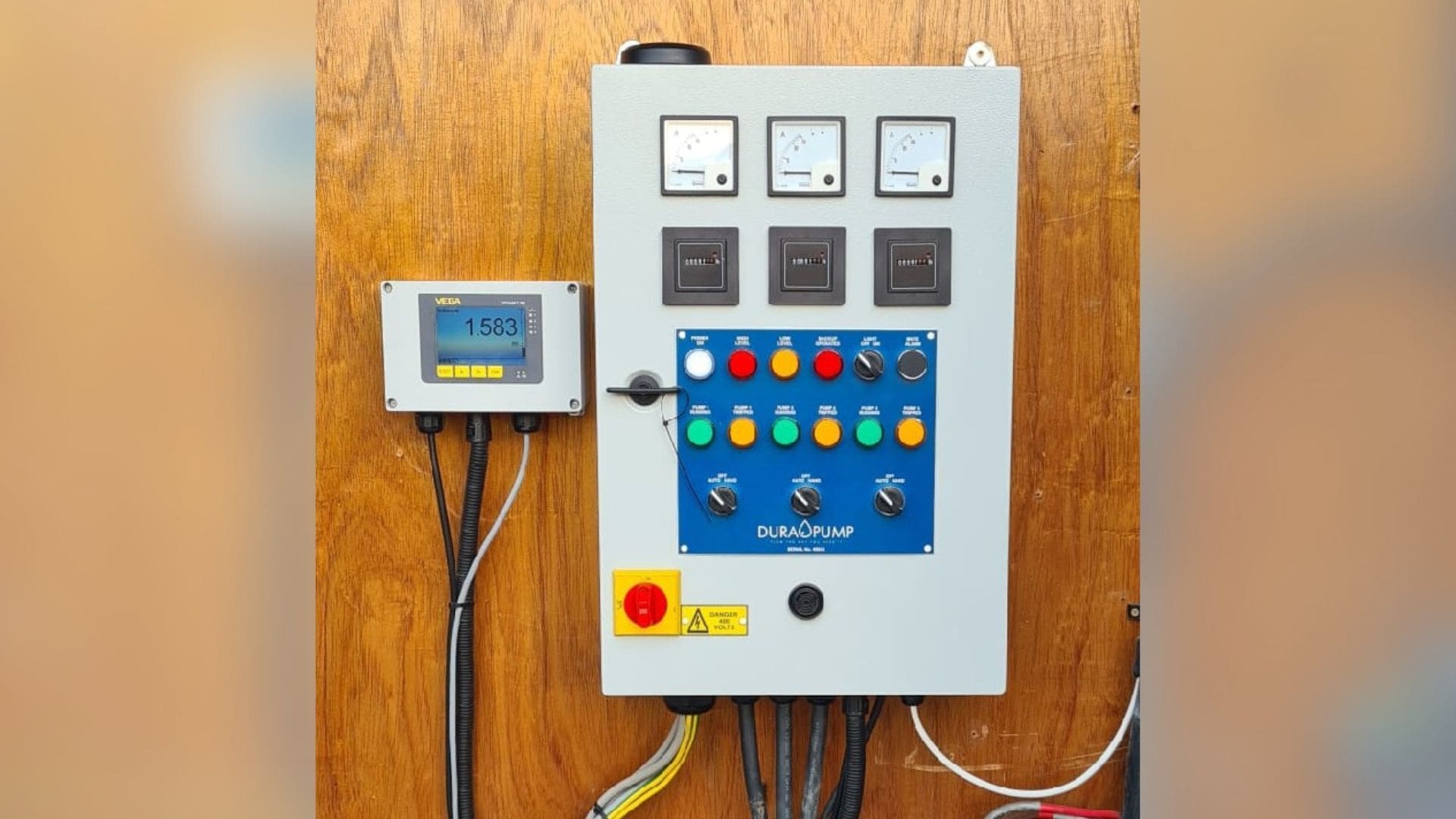

New Control Panel and Level Sensor Upgrade for HMP Belmarsh Sewage Pump Station
