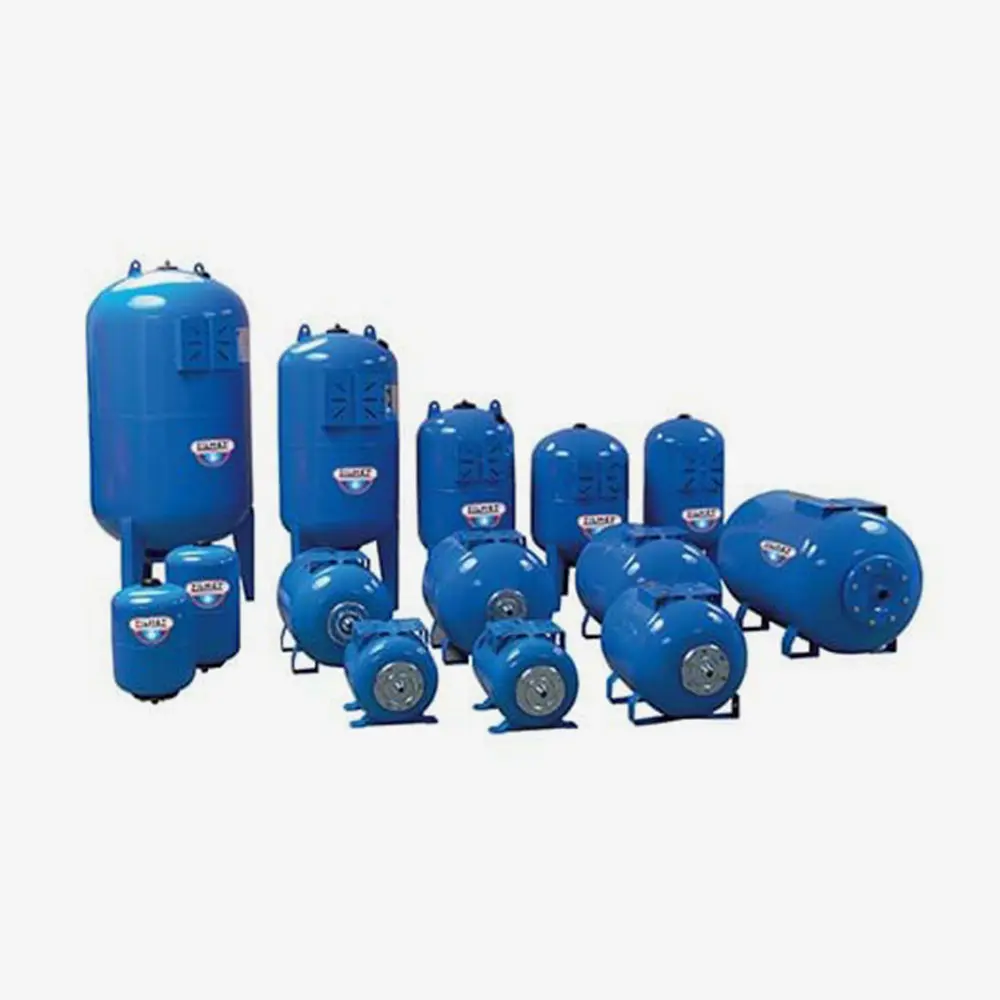

Lowara Pressure Vessels Range
Pressure vessel
The pressure vessel is designed to provide a storage facility and pressure reservoir for water at temperatures up to 70ºC. Common uses are in water booster sets, heating pressurisation and fill sets. The vessel incorporates a Butyl diaphragm mounted in a mild steel shell. This method of construction eliminates any contact between the stored water and the steel shell of the vessel, and is therefore suitable for use with potable water.
Specification
- Available from 1.5 to 22kW in single and three phase
Vessels used on Booster Sets
Pressure vessels are used on a booster set to protect the set from stopping and starting regularly, and to cushion shock waves when the demand for water stops or is closed off suddenly, for eg: a tap or valve is closed.
The size of the pressure vessel is linked to the system size.
If you are experiencing mechanical seal failure, consistent fluctuation in water pressure and pumps stopping and starting regularly, we recommend your pressure vessels are checked.
Vessels used on Heating, Hot water & Chilled water systems
Pressure vessels are used in these applications to take up the expansion and contraction of the system volume caused by temperature change.
As the system heats up, the system expands and the pressure vessel absorbs the excess water, as the system cools down and contracts, the pressure vessel discharges to maintain the systems set pressure. If you are experiencing constant fluctuation in system pressure, your pressurisation unit or fill and spill unit is running regularly or pressure relief valve is activating we recommend your pressure vessels are checked.
- Maintenance free
- WRAS Approved with Butyl Rubber Diaphragm
- Horizontal and vertical installation
- Capacities from 2 to 5.000 litres
- Options of 10, 16 and 25 Bar pressure rating available
- 2 year warrant
- Blue painted Epoxy finish
- Shell material is Carbon Steel as standard with options available on Stainless steel
Let’s Talk Pressure, we understand that every facility has unique demands. speak with a system expert today and get a recommendation built around your environment.
